PTZOptics 12X-NDI Bullet IP security camera Indoor 1920 x 1080 pixels Ceiling
GTIN: 0737993160434
In stock
SKU
PTZ-PT12X-NDI-WH-C
Special Price €1,593.73 €1,306.34 Regular Price €1,853.18
PTZOptics 12X-NDI Full HD PTZ camera for NDI: 1080p60, 12x optical zoom, NDI, 3G-SDI, HDMI and IP streaming (RTSP/RTMP), VISCA control, white, with type C (EU) power supply.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

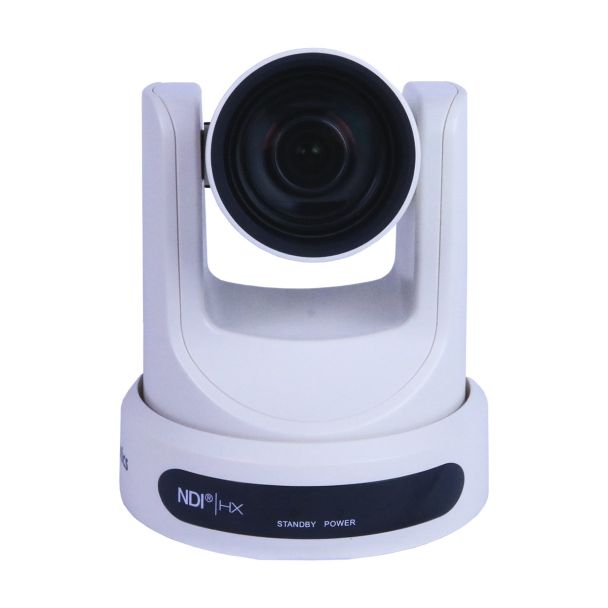

PTZOptics 12X-NDI PTZ Camera White PT12X-NDI-WH-C
The PTZOptics 12X-NDI is a pan, tilt and zoom camera for professional live streaming and video production, with a 1/2.7" CMOS sensor delivering 1080p at 60 fps and a 12x optical zoom lens (3.5-42.3 mm). It offers NDI, 3G-SDI, HDMI and IP streaming (RTSP/RTMP) outputs and supports VISCA and Pelco-P/D control, so it can be operated from video production software or from PTZOptics hardware joystick controllers. With NDI, power, video/audio and control can all run over a single Ethernet cable, simplifying installation for live streaming systems. This version is white and is supplied with an international type C (EU) power supply.
Specifications
- Sensor: 1/2.7" CMOS, 2.12 MP
- Video: 1080p at 60 fps, H.264, H.265, MJPEG
- Optical zoom: 12x
- Focal length: 3.5-42.3 mm
- Horizontal field of view: 72.5° (wide)
- Pan: ±170° at up to 100°/s; tilt: -30° to +90°
- Shutter speed: 1/30 to 1/10000 s
- Outputs: NDI, 3G-SDI, HDMI and IP streaming (RTSP/RTMP)
- Network: Gigabit Ethernet; TCP/IP, HTTP, RTSP, RTMP, DHCP, multicast
- Control: VISCA, Pelco-P/D
- Power supply: international type C (EU) plug
- Weight: 1.38 kg
- Colour: white
| Product Condition | New |
|---|---|
| Manufacturer | Ptzoptics |
| manufacturer code | PT12X-NDI-WH-C |
| Ean | 0737993160434 |
| Form factor | Bullet |
| Mounting type | Ceiling |
| Product colour | White |
| Modified on | 03-12-2018 |
| Product title | PTZOptics 12X-NDI Bullet IP security camera Indoor 1920 x 1080 pixels Ceiling |
| Long Product Name | 12x, 3G SDI, NDI, HDMI, RTSP/RTMP, 1080p, 60Hz, VISCA Control + International C Style Power Supply |
| Product specifications | PerformanceType* IP security camera Placement supported* Indoor Connectivity technology* Wired PTZ control Yes PTZ protocols Pelco-P/D DesignForm factor* Bullet Mounting type* Ceiling Product colour* White CameraMinimum illumination 0.5 lx Field of view (FOV) angle 72.5° Lens viewing angle, horizontal 72.5° Lens viewing angle, vertical 44.8° Tilt angle range -30 - 90° Tilt speed 69.9 °/sec Pan range -170 - 170° Pan speed 100 °/sec White balance Auto, Indoor, Manual, One push, Outdoor Camera shutter speed 1/30 - 1/10000 s Image sensorOptical sensor size 25.4 / 2.7 mm (1 / 2.7") Progressive scan Yes Sensor type* CMOS Lens systemZoom capability Yes Optical zoom 12x Digital zoom 32x Focal length range 3.5 - 42.3 mm Normal focusing range 1.8 - 2.8 m VideoMaximum resolution* 1920 x 1080 pixels Total megapixels* 2.12 MP Video formats supported H.264, H.265, M-JPEG Supported graphics resolutions 320 x 240, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) Supported video modes 480i, 576i, 720p, 1080i, 1080p Frame rate 60 fps Video streaming Yes Noise reduction Yes Noise reduction technology Ultra 2D noise reduction, Ultra 3D noise reduction Full HD Yes Flip & mirror Yes Bit rate control Variable Bit Rate (VBR) Bit rate 128Kbps - 8192Kbp AudioAudio formats supported AAC AudioSignal-to-Noise Ratio (SNR) 55 dB NetworkEthernet LAN* Yes Ethernet interface type Gigabit Ethernet Supported network protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast Wi-Fi* No Bluetooth* No Cabling technology 10/100/1000Base-T(X) StorageBuilt-in HDD* No Ports & interfacesEthernet LAN (RJ-45) ports 1 RS-232 ports 1 RS-485 ports 1 Headphone outputs 1 USB port Yes HDMI ports quantity 1 DC-in jack Yes Management featuresRemotely operated Yes PowerPower source type* DC Power consumption (max) 12 W DC output voltage 12 DC output current 1 A Operational conditionsOperating temperature (T-T) -5 - 40 °C Storage temperature (T-T) -20 - 60 °C System requirementsWindows operating systems supported Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Mac compatibility Yes Mac operating systems supported Yes Linux operating systems supported Yes Weight & dimensionsWidth 142 mm Depth 169 mm Height 189 mm Weight 1.38 kg Package width 229 mm Package depth 229 mm Package height 254 mm Package weight 2.45 kg Packaging contentNumber of cameras* 1 Remote control included Yes |
| Essential qualities |
|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Sensor type | CMOS |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.12 MP |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Power source type | DC |
| Number of cameras | 1 |
| Built-in HDD | No |
