PTZOptics ZCam 20X 2.07 MP Black, White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.7 mm (1 / 2.7")
GTIN: 0737993158363
PTZOptics ZCam 20X fixed 1080p60 camera for adding extra angles to live productions, with 3G-SDI, IP streaming, PoE and RS-485 zoom control; type G (UK) power supply.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

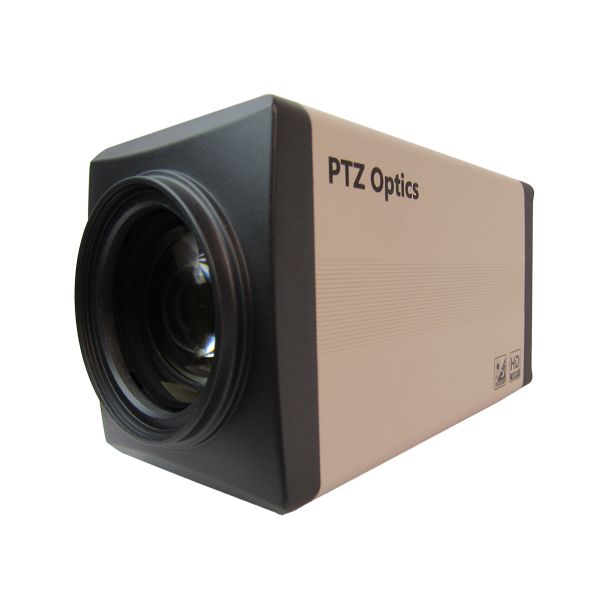

PTZOptics ZCam 20X Camera PT20X-ZCAM-G
The PTZOptics ZCam 20X is a compact camera for affordably adding camera angles to a live stream or video production. A 1/2.7" Panasonic CMOS sensor delivers 1080p video through a 20x optical zoom lens (4.42-88.5 mm), the same lens as the PTZOptics 20X PTZ models for seamless colour matching. It provides 3G-SDI outputs and IP streaming with Power over Ethernet, so the Ethernet port can carry power, control and video. The RS-485 interface accepts VISCA or Pelco commands for zoom control, the camera can stream via RTMP directly to a CDN, and built-in motion detection allows integration into a security system. Supplied with a type G (UK) power supply.
Specifications
- Sensor: 1/2.7" Panasonic CMOS, 2.07 MP
- Video: 1080p up to 60 fps (25/30/50/60)
- Optical zoom: 20x, 4.42-88.5 mm
- Horizontal field of view: 60.7° (wide) to 3.4° (tele)
- Dimensions: 60.9 x 144.7 x 76.2 mm
- Outputs: 3G-SDI, IP streaming (RTMP)
- Control: RS-485 (VISCA, Pelco), IP
- Power: 12 V DC or PoE
- Power supply: type G (UK) plug
| Product Condition | New |
|---|---|
| Manufacturer | Ptzoptics |
| manufacturer code | PT20X-ZCAM-G |
| Ean | 0737993158363 |
| Product colour | Black, White |
| Modified on | 03-12-2018 |
| Product title | PTZOptics ZCam 20X 2.07 MP Black, White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.7 mm (1 / 2.7") |
| Long Product Name | 1/2.7” CMOS, 2.07 MP, FHD 1920 x 1080 px, 20X, FOV 60.7°, 3G-SDI, IP Network, Plug Type G |
| Product specifications | CameraMegapixel (approx.)* 2.07 MP Sensor type CMOS Optical sensor size 25.4 / 2.7 mm (1 / 2.7") Optical zoom 20x Focal length range 4.42 - 88.5 mm Horizontal field of view (wide) 60.7° Horizontal field of view (tele) 3.4° Minimum illumination 0.05 lx Signal-to-Noise Ratio (SNR) 55 dB Aperture range (F-F) 1.8 - 2.8 Slowest camera shutter speed 25 s Fastest camera shutter speed 1/10000 s 3D NR (Noise Reduction) Yes VideoHD type* Full HD Maximum video resolution* 1920 x 1080 pixels Maximum frame rate* 60 fps Resolution at capture speed 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps Supported video modes 720p, 1080i, 1080p Supported graphics resolutions 1920 x 1080 (HD 1080) DesignProduct colour* Black, White Ports & interfacesRS-485 ports 1 Ethernet LAN (RJ-45) ports 1 DC-in jack Yes 3G-SDI output Yes PowerPower source type DC, PoE DC input voltage 12 V Packaging contentPower supply included Yes Quick start guide Yes NetworkNetwork streaming Yes Weight & dimensionsWidth 60.9 mm Depth 144.7 mm Height 76.2 mm Weight 640 g |
| Essential qualities |
|
| Megapixel (approx.) | 2.07 MP |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
