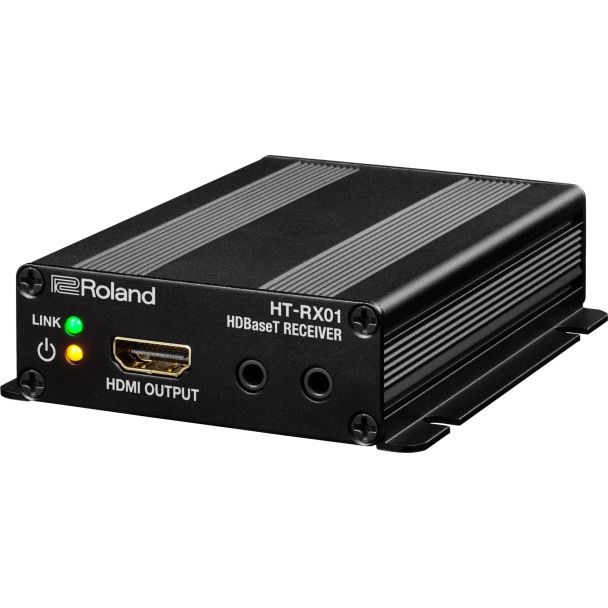

Roland HT-RX01 AV extender AV receiver Black
GTIN: 4957054507152
Roland HT-RX01 HDBaseT receiver converting HDBaseT signals to HDMI output, up to 100 m over Ethernet cable, 1080/60p and WUXGA, HDCP, RS-232C transmission.
Roland HT-RX01 HDBaseT Receiver
Connecting an Ethernet cable between the HT-TX01 and HT-RX01 transmits HDMI signals over distances of up to 100 metres, so cameras, Blu-ray players, switchers and other sources can feed LCD monitors, projectors and other displays. RS-232C control signals can be transmitted along with video and audio, reducing system wiring, for audio/video distribution in school auditoriums, conference halls and other large spaces. The units also work with the HDBaseT outputs of the Roland XS series multi-format matrix switchers, whose RS-232C transmission function sends control signals together with video and audio.
Key features
- Converts HDBaseT signals to HDMI output
- Up to 1080/60p and WUXGA
- HDCP compliant
- RS-232C transmission
- Transmission distance up to 100 m
Specifications
- Connectors: HDMI 1.4, RJ-45 (HDBaseT), RS-232
- Dimensions: 81 x 93 x 24 mm
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | HT-RX01 |
| Ean | 4957054507152 |
| Modified on | 02-01-2017 |
| Product title | Roland HT-RX01 AV extender AV receiver Black |
| Long Product Name | HT-RX01, HDMI 1.4, RJ-45, RS-232, HDBaseT, HDCP 2.0, 81x93x24 mm |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 1920 x 1200 pixels Maximum transfer distance 100 m Maximum refresh rate 75 Hz LED indicators Link, Power Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) Audio formats supported PCM HDCP Yes 3D Yes Product colour Black HDBaseT certified Yes Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 Number of HDMI outputs 1 RS-232 input ports 1 Ports & interfacesDC-in jack Yes PowerOperating voltage (receiver) 5 V Current 2 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 10 - 85% Storage relative humidity (H-H) 10 - 85% Weight & dimensionsReceiver dimensions (WxDxH) 81 x 93 x 24 mm Receiver weight 300 g Packaging contentAC adapter included Yes Cables included RS-232 Manual Yes |
| Essential qualities |
|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Connectivity technology | Wired |
