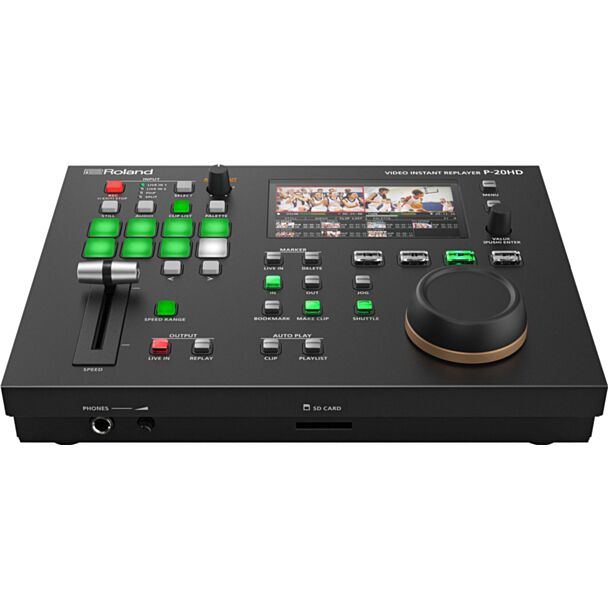

Roland P-20HD video mixer WUXGA
GTIN: 4957054516840
Roland P-20HD instant replayer for live sports production: slow-motion replay with simultaneous SD card recording, 2 HDMI inputs with scalers, jog/shuttle, T-bar and 4.3" colour LCD.
Roland P-20HD Video Instant Replayer
The Roland P-20HD brings slow-motion instant replay to live sports production in an affordable, easy-to-use unit that integrates with most Roland A/V switchers and HDMI cameras. Recording goes directly to SD cards, and the game keeps recording in the background while clips are cued and replayed. The SD card also holds logos, sponsor graphics and still images, which can be layered over clips or shown full screen, as well as jingles, music or voiceover audio for playback on cue (video files cannot be imported).
It can be used on its own or upstream or downstream of a Roland video switcher; two cameras can be connected and switched or composited, and both HDMI inputs have built-in scalers. A single operator can mark events as clips while recording and play them back with dedicated buttons. Transport buttons (play, pause, forward, rewind, mark in/out), an optical jog/shuttle wheel and a T-bar for playback speed, with a Speed Range function for ultra-fine control, give hands-on operation, and a playlist builder creates highlight and training reels.
Key features
- Slow-motion instant replay and variable-speed playback
- Simultaneous recording and playback to SD cards
- Clip playlist builder for highlight reels
- Still images and audio clips from SD card
- 2 HDMI inputs with scalers
- Jog/shuttle wheel, T-bar and dedicated transport buttons
- Integrated 4.3" colour LCD for preview
Specifications
- Inputs/outputs: 2 x HDMI in, 2 x HDMI out, audio L/R in and out
- Resolutions: up to 1080p and WUXGA (1920 x 1200)
- Recording: SD/SDHC/SDXC cards
- Ports: USB 2.0, RJ-45 Ethernet
- Display: 4.3" TFT LCD
- Power consumption: 36 W (AC adapter included)
- Dimensions: 265 x 216 x 87 mm
- Weight: 2.1 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | P-20HD |
| Ean | 4957054516840 |
| Modified on | 13-10-2023 |
| Product title | Roland P-20HD video mixer WUXGA |
| Long Product Name | 4.3" TFT LCD, SVGA - WUXGA, 50/60 Hz, SD/SDHC/SDXC, HDMI, USB, RJ-45 |
| Product specifications | VideoHD type* WUXGA Video resolutions 800 x 600,1024 x 768,1280 x 1024,1280 x 800,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 Supported video modes 720p, 1080i, 1080p Compression ratio 4:2:2 Video processing 8 bit PerformanceChannels quantity 2 channels Digital video effects (DVE) Yes Video formats supported H.264, MPEG2-TS Audio formats supported PCM, WAV Image formats supported BMP, PNG NetworkEthernet LAN* Yes Ethernet LAN data rates 1000 Mbit/s Cabling technology 10/100/1000Base-T(X) DisplayBuilt-in display* Yes Display type TFT Display diagonal 10.9 cm (4.3") Display resolution 480 x 272 pixels Ports & interfacesHDMI in 2 Number of HDMI outputs 2 Ports & interfacesAudio (L/R) in 1 Audio (L/R) out 1 Ethernet LAN (RJ-45) ports 1 USB 2.0 ports quantity 1 DC-in jack Yes PowerPower source type* AC Output current 3 A Power consumption (max) 36 W DesignProduct colour Black Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 265 mm Depth 216 mm Height 87 mm Weight 2.1 kg Packaging contentCables included AC AC adapter included Yes Manual Yes |
| Essential qualities |
|
| HD type | WUXGA |
| Ethernet LAN | Yes |
| Built-in display | Yes |
| Power source type | AC |
