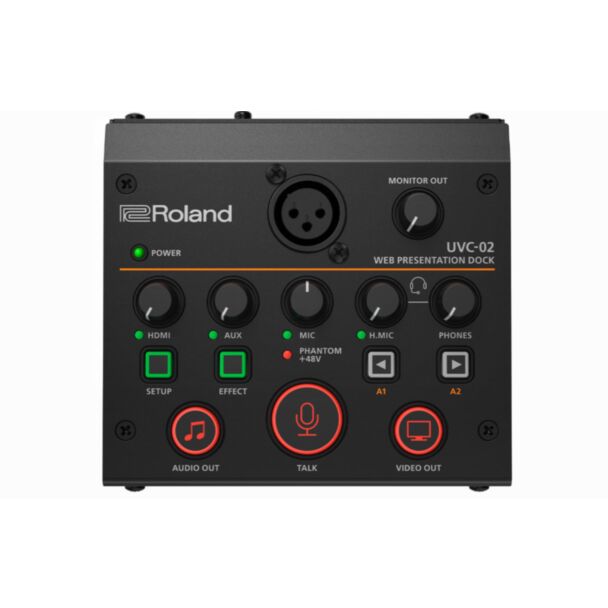

Roland UVC-02 audio conferencing bridge Black

Roland UVC-02 Web Presentation Dock

The UVC-02 is a compact desktop control centre for upgrading video meetings and presentations. It connects a high-quality HDMI camera, a professional microphone and other audio sources and sends them to meeting and streaming platforms on the computer via a single USB cable. It is recognised as a webcam and audio source with no drivers, ready for Zoom, Microsoft Teams, Webex or any application that uses a webcam. The HDMI input accepts embedded audio and scales different video resolutions automatically.

A small studio-grade mixer with four inputs includes an XLR input with phantom power, an Aux input for music, a headphone jack (also supporting earbud inline mics) and a stereo monitor output, each with dedicated level knobs. A large backlit Talk button mutes the audio instantly and the camera feed can be switched off with a button. Equalizer, audio effects, echo cancellation, noise suppression (with an adaptive option from version 2.0), Voice Change and sound effects are on board, and two assignable buttons can be configured with the free UVC-02 software for macOS and Windows.

Key features

• Inputs for an HDMI camera, an XLR microphone and stereo audio sources
• Plug and play: appears as a webcam and audio source
• HDMI input with embedded audio and automatic scaling
• XLR input with phantom power
• Headphone and stereo monitor outputs with level knobs
• One-touch audio and video muting
• EQ, effects, echo cancellation, noise suppression and Voice Change
• Two assignable buttons configurable via free software

Compatibility

• Roland CGM-30 gooseneck microphone (optional)

Specifications

• Connection to computer: USB
• Audio: 48 kHz
• Power consumption: 4.5 W
• Dimensions: 124 x 117 x 52 mm
• Weight: 460 g
• Colour: black
