Roland V-02HD MK II video mixer WUXGA
GTIN: 4957054518516
Roland V-02HD MK II compact streaming video mixer: switch two HDMI sources and stream up to 1080p60 over USB-C as a webcam source, with T-bar, effects, 10-channel audio mixer and Program/Preview HDMI outputs.

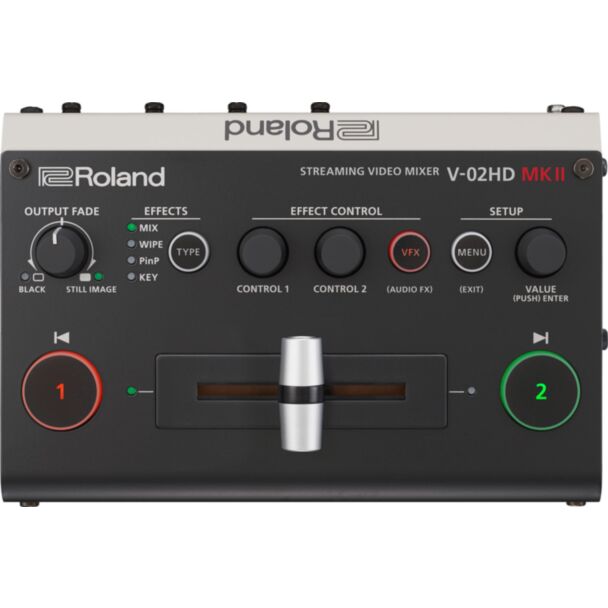

Roland V-02HD MK II Streaming Video Mixer
The V-02HD MK II is a compact desktop mixer for connecting and switching two HDMI cameras and sending them directly to streaming platforms over USB-C. Its intuitive layout, large controls and T-bar make it simple to operate even without broadcasting experience: connect up to two HDMI sources (cameras, computers, mobile devices, game consoles), connect the USB-C output to the computer and select the V-02HD MK II as the camera source in the streaming software.
It is recognised as a camera source by Facebook, YouTube, Twitch and Zoom and works with OBS Studio, StreamYard and Restream, streaming up to 1080p/60. Two additional feeds can be sent to external HDMI devices via the Program and Preview outputs. Audio sources can be mixed via dedicated inputs and HDMI with a 10-channel digital audio mixer, and video effects and transitions can be applied.
Key features
- Two HDMI inputs
- USB-C streaming output up to 1080p/60, recognised as a webcam
- Program and Preview HDMI outputs
- T-bar, effects and transitions
- 10-channel digital audio mixer
Specifications
- Video processing: 4:4:4, 10-bit
- Resolutions: up to 1080p and WUXGA (1920 x 1200)
- Power consumption: 12.6 W (AC adapter included)
- Dimensions: 160 x 108 x 51 mm
- Weight: 600 g
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | V-02HDMKII |
| Ean | 4957054518516 |
| Modified on | 04-11-2021 |
| Product title | Roland V-02HD MK II video mixer WUXGA |
| Long Product Name | 12.6 W, USB, HDMI, 160 x 108 x 51 mm |
| Product specifications | VideoHD type* WUXGA Video resolutions 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 800,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1080,1920 x 1200 Supported video modes 480p, 576p, 720p, 1080p Compression ratio 4:4:4 Video processing 10 bit PerformanceAudio formats supported PCM Ports & interfacesHDMI in 2 Number of HDMI outputs 2 Audio (L/R) out 2 PowerPower source type* AC Output current 1.4 A PowerPower consumption (max) 12.6 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 160 mm Depth 108 mm Height 51 mm Weight 600 g Packaging contentCables included AC AC adapter included Yes Manual Yes |
| HD type | WUXGA |
| Power source type | AC |
