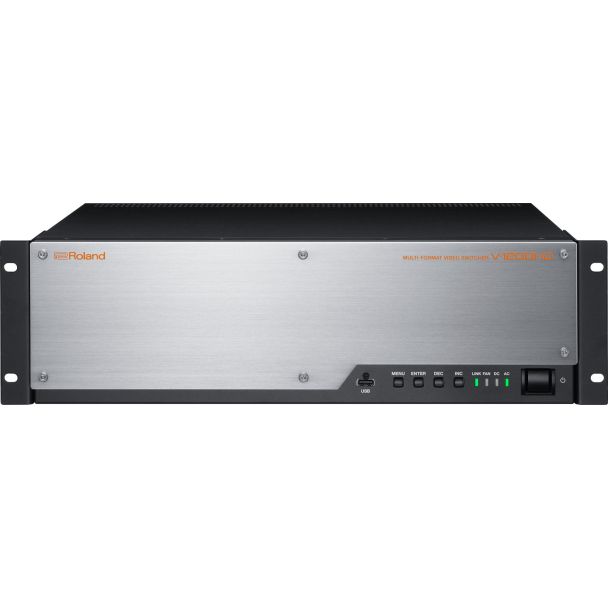

Roland V-1200HD video mixer Full HD
GTIN: 4957054504243
Roland V-1200HD 2 M/E multi-format video switcher with 4:2:2/4:4:4 hybrid engine, 10 3G/HD-SDI and 4 HDMI inputs, 6 SDI and 2 HDMI outputs, 16-channel audio mixer, XI-series expansion.
Roland V-1200HD Multi-Format Video Switcher
The V-1200HD is a 2 M/E multi-format video switcher for broadcast and live events, with a hybrid engine combining a 4:2:2 broadcast switcher and a 4:4:4 live event (presentation) switcher. Inputs include 10 3G/HD-SDI and 4 HDMI, with 6 3G/HD-SDI and 2 HDMI outputs; scalers on HDMI inputs 3 and 4 and on the HDMI outputs support SD, HD and VESA resolutions. A built-in 16-channel audio mixer is included, and video inputs and audio can be expanded with XI-series cards.
Operating modes can be selected between 2 M/E (two keyers per M/E, re-entry in both directions and independent outputs), 1.5 M/E (all four keyers in M/E 1 with PGM/PST as final stage) and 1 M/E with four keys and two AUX buses. Switching is done from the V-1200HDR control surface or the free Remote Control Software, with assignable cross-points and on-screen names.
Key features
- Hybrid 4:2:2 / 4:4:4 engine
- 1 M/E, 1.5 M/E and 2 M/E operating modes
- 10 x 3G/HD-SDI and 4 x HDMI inputs
- 6 x 3G/HD-SDI and 2 x HDMI outputs
- Scalers on HDMI inputs 3-4 and HDMI outputs
- Built-in 16-channel audio mixer
- Expansion with XI-series video and audio cards
- Control via V-1200HDR surface or Remote Control Software
Specifications
- Control ports: RS-232, RS-422, RJ-45 LAN, USB
- Dimensions: 482 x 357 x 133 mm
- Weight: 9 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | V-1200HD |
| Ean | 4957054504243 |
| Rack mounting | No |
| Modified on | 17-02-2018 |
| Product title | Roland V-1200HD video mixer Full HD |
| Long Product Name | V-1200HD, SDI, HDMI, HDCP, RS-232, RS-422, RJ-45, USB, 482x357x133 mm |
| Product specifications | VideoHD type* Full HD Video resolutions 1024 x 768,1280 x 1024,1280 x 720,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p NetworkEthernet LAN* Yes Ethernet LAN data rates 100 Mbit/s Cabling technology 10/100Base-T(X) DisplayBuilt-in display* No Ports & interfacesHDMI in 4 Number of HDMI outputs 4 BNC input ports 10 BNC output ports 6 Ethernet LAN (RJ-45) ports 1 AC (power) in Yes DC-in jack Yes PowerPower source type* AC PowerAC input voltage 117/220/230/240 V AC input frequency 50 - 60 Hz Output voltage 24 V DesignRack mounting* No Product colour Black On/off switch Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 482 mm Depth 357 mm Height 133 mm Weight 9 kg Packaging contentCables included AC Manual Yes |
| HD type | Full HD |
| Ethernet LAN | Yes |
| Built-in display | No |
| Power source type | AC |
