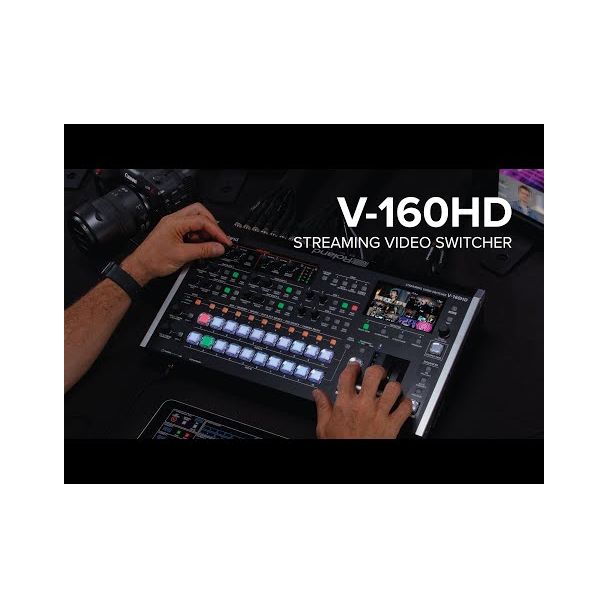

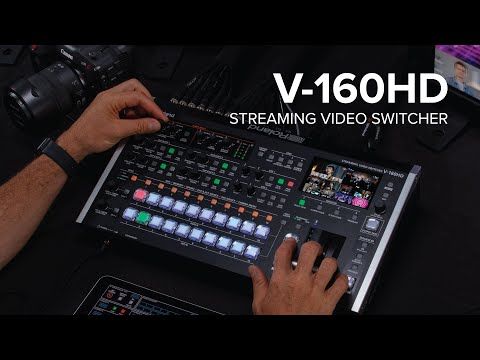

Roland V-160HD Streaming Video Switcher
GTIN: 4957054517939
Roland V-160HD hybrid event switcher: 8 3G-SDI and 8 HDMI inputs, 7 assignable outputs including USB-C streaming, 8-layer video effects, 40-channel audio mixer, PTZ control and live automation.
Roland V-160HD Streaming Video Switcher
The V-160HD is a portable hybrid event switcher that serves both in-room audiences in Full HD over SDI and HDMI and online audiences via USB-C streaming to any popular web platform. Eight 3G-SDI and eight 1080p HDMI inputs, all with frame rate converters, can be mixed even with mismatched frame rates and colour spaces, and four HDMI inputs have real-time scalers for computers, tablets, smartphones, consoles and legacy 4:3 sources.
Seven freely assignable outputs (three SDI, three HDMI and one USB-C streaming) can carry Program, Sub-Program, Aux, Preview or three Multi-View modes. An eight-layer video effects engine, a 16-slot still store (BMP, JPEG and PNG with alpha), a 40-channel digital audio mixer with effects, PTZ camera control for multiple brands and protocols, 30 preset memories and 100 macros make complex productions manageable by a single operator. Free remote control software is available for macOS, Windows and iPad.
Key features
- 8 x 3G-SDI and 8 x HDMI inputs with frame rate converters
- 4 HDMI inputs with real-time scalers
- 7 assignable outputs: 3 SDI, 3 HDMI, 1 USB-C streaming
- Eight-layer video effects engine
- 40-channel digital audio mixer with effects
- 16-slot still store
- PTZ camera control with mixed protocols
- 30 presets, 100 macros and sequencing
Specifications
- Audio: 24-bit, 48 kHz
- Display: 4.3" LCD (480 x 272)
- Resolutions: up to 1080p and WUXGA
- Power consumption: 55 W
- Dimensions: 480 x 253 x 103 mm
- Weight: 3.9 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | V-160HD |
| Ean | 4957054517939 |
| Modified on | 23-07-2021 |
| Product title | Roland V-160HD Composite |
| Long Product Name | 4.3" LCD, 480 x 272, VGA - UXGA, 4:2:2 (Y/Pb/Pr), 8-bit, 24 bits/48 kHz, HDMI, BNC, USB, XLR, 50/59.94/60 Hz |
| Product specifications | Ports & interfacesVideo port type* Composite HDMI ports quantity 11 HDMI in 8 Number of HDMI outputs 3 USB port type USB Type-C Audio (L/R) in 4 Audio (L/R) out 4 BNC input ports 8 BNC output ports 3 RJ-45 input ports 1 RS-232 ports 1 DC-in jack Yes FeaturesHDCP Yes Maximum refresh rate 60 Hz Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) Supported video modes 480i, 480p, 720p, 1080i, 1080p FeaturesColour depth 8 bit Input impedance 9400 Ω Output impedance 1000 Ω Display type LCD Audio formats supported PCM PowerAC adapter input current 2.5 A Power consumption (max) 55 W Weight & dimensionsWidth 480 mm Depth 253 mm Height 103 mm Weight 3.9 kg Operational conditionsOperating temperature (T-T) 0 - 40 °C |
| Essential qualities |
|
| Video port type | Composite |
