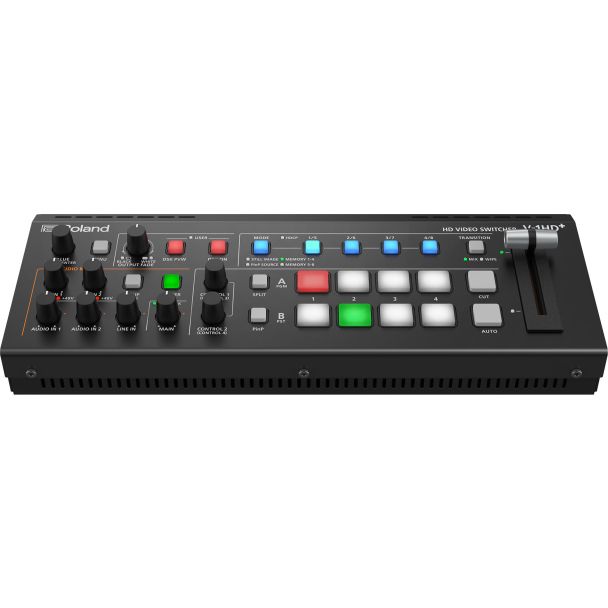

Roland V-1HD+ Compact HD Video Switcher

The V-1HD+ extends the Roland V-1HD, a popular four-channel HDMI switcher since 2015, with a deeper feature set while keeping its simple operation. Four HDMI inputs with frame rate conversion mix cameras, presentation computers, tablets and game consoles, and input 4 has a built-in scaler that automatically syncs and calibrates troublesome sources.

Two independent HDMI outputs can be assigned to one of three video buses, for example a program output for recording or streaming and a second output for an input preview or a multiviewer with 10 windows. Quick-action buttons give one-touch access to the system menu, downstream key, transition type, picture-in-picture and effects, alongside PGM/PST buses and a transition fader. An integrated 14-channel digital audio mixer with effects, tactile volume knobs and signal/peak lights lets a single operator mix sound too.

Key features

• 4 HDMI inputs with frame rate conversion
• Built-in scaler on input 4
• 2 independent, assignable HDMI outputs
• Multiviewer with 10 windows
• Quick-action buttons for DSK, transitions, PinP and effects
• 14-channel digital audio mixer with effects

Specifications

• Audio I/O: XLR in, XLR out, stereo L/R in and out
• Other ports: USB 2.0, RS-232
• Resolutions: up to 1080p and WUXGA (1920 x 1200), max 60 fps
• Power: DC
