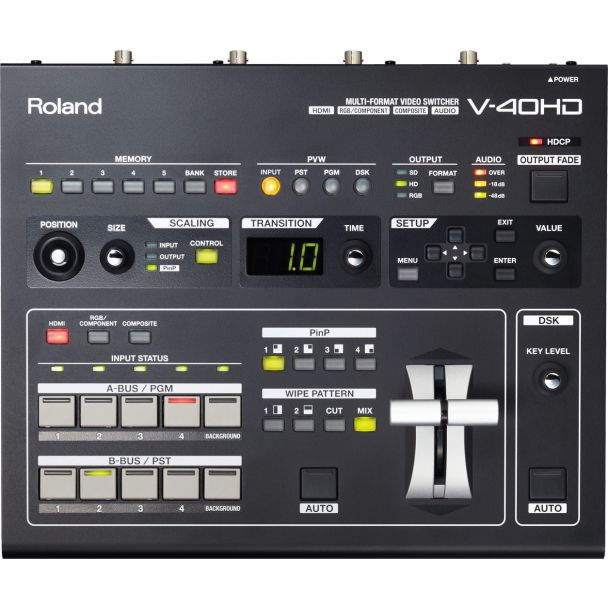

Roland V-40HD video mixer Full HD
GTIN: 4957054502256
Roland V-40HD multi-format live video switcher with 4 channels and 12 inputs (HDMI, RGB/component, composite), scalers on every input, 1080p/WUXGA, HDCP, multi-view preview and audio embedding.
Roland V-40HD Multi-Format Live Video Switcher
The V-40HD is a multi-format live video switcher for events and installations that need to connect digital and analog, computer and video sources, especially HDMI cameras and computers. Every input has its own scaler and frame synchroniser, so sources do not have to match the output resolution. Each of the four input channels offers HDMI, RGB/component and composite connectors, for twelve sources in total, with resolutions up to 1080/60p or 1920 x 1200.
Outputs are Output 1 (HDMI, RGB/component, composite), Output 2 (HDMI, RGB/component) and a Preview HDMI output with four-way split for inputs, PST, PGM or DSK. Internal processing is 4:4:4/10-bit (output 4:2:2/8-bit), with 1 M/E (PinP) plus DSK. HDCP mode allows copy-protected Blu-ray or game content to be switched (HDMI/DVI-D output only), and analog audio can be mixed and embedded into HDMI with audio delay for lip sync.
Key features
- 4 channels, 12 inputs: HDMI, RGB/component, composite
- Scalers and frame synchronisers on all inputs
- 3 outputs plus HDMI preview with four-way split
- 4:4:4/10-bit internal processing
- 1 M/E (PinP) + DSK
- Full HDCP support
- Audio embedding with delay for lip sync
- Input status LEDs
Specifications
- Control ports: MIDI, RS-232C, USB
- Power: DC 12 V (AC adapter included)
- Dimensions: 317 x 266 x 108 mm
- Weight: 3.4 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | V-40HD |
| Ean | 4957054502256 |
| Rack mounting | No |
| Modified on | 09-05-2014 |
| Product title | Roland V-40HD video mixer Full HD |
| Long Product Name | V-40HD, HDMI, VGA, MIDI, RS-232C, USB, DC 12 V, 317x266x108 mm |
| Product specifications | VideoHD type* Full HD Analog signal format system NTSC, PAL Video resolutions 640 x 480,800 x 600,1024 x 768,1280 x 1024,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1080 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080p, 1280p Compression ratio 4:4:4 Video processing 10 bit NetworkEthernet LAN* No DisplayBuilt-in display* Yes Display type LED Ports & interfacesHDMI in 4 Number of HDMI outputs 3 VGA (D-Sub) input ports 4 DC-in jack Yes PowerPower source type* AC Output voltage 12 V Output current 2.6 A DesignRack mounting* No Product colour Black On/off switch Yes Weight & dimensionsWidth 317 mm Depth 266 mm Height 108 mm Weight 3.4 kg Packaging contentCables included AC AC adapter included Yes Manual Yes |
| Essential qualities |
|
| HD type | Full HD |
| Ethernet LAN | No |
| Built-in display | Yes |
| Power source type | AC |
