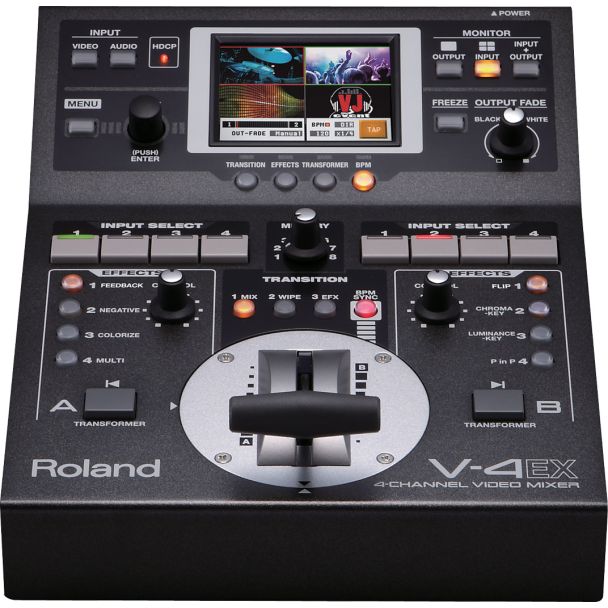

Roland V-4EX video mixer Full HD

Roland V-4EX Four-Channel Digital Video Mixer

The V-4EX advances the Roland V-4 four-channel video mixer with HDMI inputs and outputs, progressive internal processing, audio embedding, USB streaming, HDCP support and a built-in touch-control multiviewer. Compact enough for portable use and permanent installations, it suits clubs, concerts, worship, events, meetings, training, weddings, education and sports.

Inputs 1-3 accept composite (BNC) or HDMI up to 480p/576p, while input 4 accepts HDMI up to 1080p, RGB up to WUXGA, component or S-Video. The program output is scaled up to 1080p or 1920 x 1200 on HDMI, RGB/component or SD composite, with an extra HDMI output for preview/multiviewer. A stereo RCA input can be embedded into the HDMI outputs and the USB stream, with audio delay up to 4 frames for lip sync. As a USB video/audio class device it connects directly to a computer for web streaming or recording.

Key features

• 3 SD inputs (HDMI/composite) + 1 input up to 1080p (HDMI/RGB/component/S-Video)
• PGM output up to 1080p (HDMI, RGB/component, composite) + PVW/multiviewer output
• 480p/576p progressive internal processing
• Built-in multiviewer with touch control
• Frame synchronisers on all inputs, scalers on channel 4 and output
• 259 transitions and 148 effects
• HDCP compliant
• Audio embedding, audio mixer and delay up to 4 frames
• USB streaming output

Specifications

• Control: MIDI, USB
• Dimensions: 225 x 296 x 105 mm
• Weight: 2.6 kg
