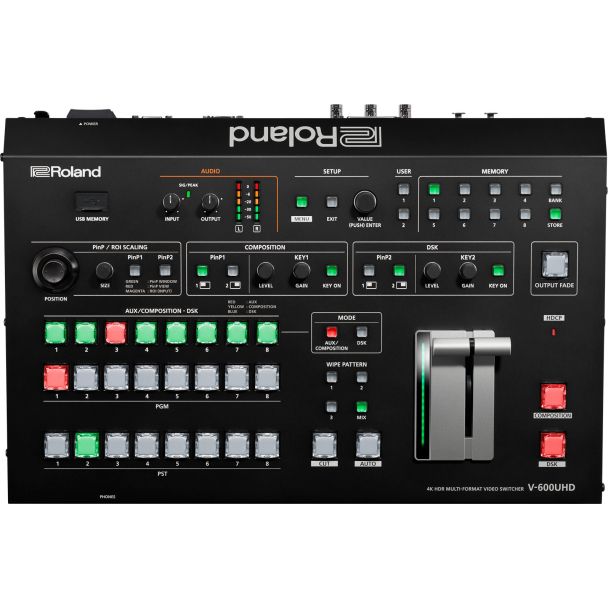

Roland V-600UHD 4K HDR Video Switcher
GTIN: 4957054513665
Roland V-600UHD 4K HDR multi-format video switcher with scaling on every input, 4 HDMI 2.0 and 2 12G-SDI inputs, 60 Hz, 10-bit 4:4:4, Rec.2020 and DCI 4K support.
Roland V-600UHD 4K HDR Multi-Format Video Switcher
The V-600UHD lets productions move to 4K at their own pace: Roland Ultra Scaler technology scales every input, so Full HD and 4K sources can be used together and output at multiple resolutions, and the pixel density of 4K cameras can also be used in Full HD workflows. It supports HDR as well as SDR signals, full 60 Hz frame rate, Rec.2020 wide colour gamut alongside RGB and Rec.709, 10-bit 4:4:4 internal processing and DCI 4K (4096 x 2160) as well as UHD.
Four HDMI 2.0 and two 12G-SDI inputs each support HD, Full HD, UHD 4K, DCI 4K and PC resolutions. System program version 2.0 adds Automatic ROI, combining facial tracking with Roland's multi-shot Region Of Interest, and control of LAN-based PTZ cameras from multiple manufacturers, turning the V-600UHD into a single-operator production switcher.
Key features
- Scaling on every input (Ultra Scaler)
- 4 x HDMI 2.0 and 2 x 12G-SDI inputs
- HDR and SDR, Rec.2020 / Rec.709 / RGB
- 60 Hz, 10-bit 4:4:4 processing
- UHD and DCI 4K support
- Automatic ROI and PTZ camera control (ver. 2.0)
Specifications
- Outputs: 3 x HDMI, 1 x SDI
- Audio: 24-bit, 48 kHz
- Control ports: RS-232, RJ-45, USB
- Power consumption: 80 W
- Dimensions: 482 x 300 x 109 mm
- Weight: 5.3 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | V-600UHD |
| Ean | 4957054513665 |
| Modified on | 23-07-2021 |
| Product title | Roland V-600UHD Composite |
| Long Product Name | XGA - UHD 4K, 60 Hz, HDR10, HDR HLG, SDR, 4:4:4 (Y/Pb/Pr), 10-bit, 24 bits/48 kHz, HDMI, USB, RS-232, RJ-45, DB-25, |
| Product specifications | Ports & interfacesVideo port type* Composite HDMI ports quantity 7 HDMI version 1.4/2.0 HDMI in 4 Number of HDMI outputs 3 USB port type USB Type-A Audio (L/R) in 2 Audio (L/R) out 2 BNC input ports 2 BNC output ports 1 RJ-45 input ports 1 RS-232 ports 1 FeaturesMaximum refresh rate 60 Hz Supported graphics resolutions 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 FeaturesSupported video modes 720p, 1080i, 1080p, 2160p Colour depth 10 bit Input impedance 15000 Ω Output impedance 32 Ω Audio formats supported PCM PowerPower consumption (max) 80 W Weight & dimensionsWidth 482 mm Depth 300 mm Height 109 mm Weight 5.3 kg Operational conditionsOperating temperature (T-T) 0 - 40 °C |
| Essential qualities |
|
| Video port type | Composite |
