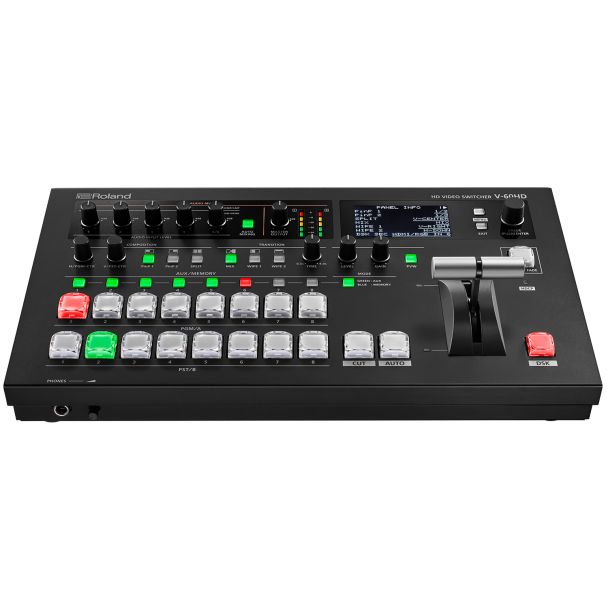

Roland V-60HD video mixer Full HD
GTIN: 4957054511609
Roland V-60HD production switcher with 4 SDI and 2 scaled HDMI inputs, Program/Preview/Aux outputs, multi-channel audio embedding, XLR and RCA inputs and audio auto-mixing.
Roland V-60HD Multi-Format HD Video Switcher
The V-60HD combines SDI inputs for cameras with scaled HDMI inputs for computers, tablets and other sources, plus a Program and Aux bus, for live events, education, churches and theatres. A de-interlacer on the SDI inputs allows 1080i and 1080p cameras to be mixed without external converters, and the unit is portable enough to move between locations.
Audio features include multi-channel embedded audio, XLR and RCA analog inputs, de-embedding from SDI or HDMI sources and an auto-mixing function that balances levels from several microphones and sources. Eight discrete audio channels can be embedded for recording to an SDI recorder. The V-60HD can be controlled remotely over LAN with Roland Remote Control Software for PC or Mac, or via RS-232 from touch panel systems.
Key features
- 4 SDI inputs with de-interlacer and 2 scaled HDMI inputs
- Program, Preview and Aux outputs
- Multi-channel audio embedding and de-embedding
- XLR and RCA analog audio inputs
- Audio auto-mixing
- Remote control via LAN or RS-232
Specifications
- Video: up to 1080p
- Audio: 24-bit, 48 kHz
- Ports: SDI (BNC), HDMI, XLR, RCA, USB, RS-232, RJ-45
- Dimensions: 356 x 221 x 96 mm
- Weight: 3 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | V-60HD |
| Ean | 4957054511609 |
| Rack mounting | No |
| Modified on | 08-07-2018 |
| Product title | Roland V-60HD video mixer Full HD |
| Long Product Name | V-60HD, SDI BNC, HDMI, HDCP, RCA, USB, RS-232, RJ-45, 1080p, 24 bits/48 kHz, 356x221x96 mm |
| Product specifications | VideoHD type* Full HD Video resolutions 1280 x 768,640 x 480,800 x 600,1024 x 768,1280 x 1024,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Compression ratio 4:2:2 Video processing 8 bit PerformanceDigital video effects (DVE) Yes NetworkEthernet LAN* Yes Ethernet LAN data rates 100 Mbit/s Cabling technology 10/100Base-T(X) DisplayBuilt-in display* Yes Display type LCD Display resolution 128 x 64 pixels Ports & interfacesHDMI in 2 Number of HDMI outputs 2 BNC input ports 4 BNC output ports 2 XLR in Yes XLR out 2 Audio (L/R) in 1 Ports & interfacesAudio (L/R) out 1 Ethernet LAN (RJ-45) ports 1 USB 2.0 ports quantity 1 DC-in jack Yes PowerPower source type* AC Output current 3.1 A DesignRack mounting* No Product colour Black On/off switch Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 356 mm Depth 221 mm Height 96 mm Weight 3 kg Packaging contentCables included AC AC adapter included Yes Manual Yes |
| HD type | Full HD |
| Ethernet LAN | Yes |
| Built-in display | Yes |
| Power source type | AC |
