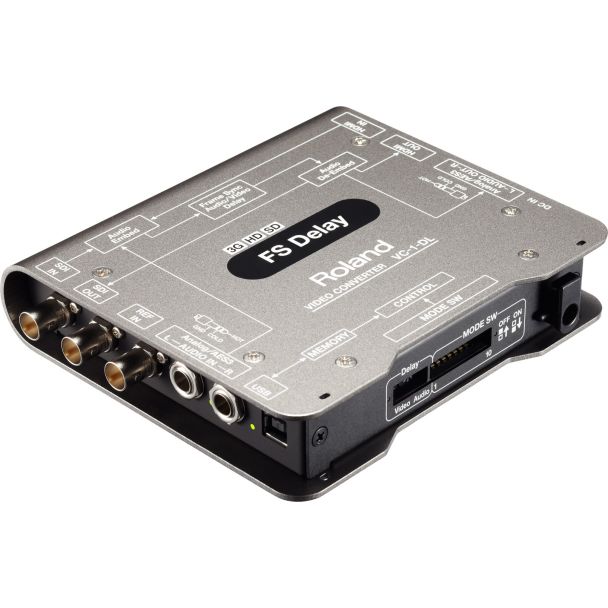

Roland VC-1-DL video signal converter 1920 x 1080 pixels

Roland VC-1-DL Bi-Directional SDI/HDMI Video Converter with Delay

The VC-1-DL converts bi-directionally between SDI and HDMI and adds frame synchronisation and independent audio and video delay of up to 9 fields (4.5 frames), useful for keeping different cameras in sync or keeping a projector in sync with an LED wall in live production, broadcast and recording. It can also delay HDCP signals, and selectable audio embedding/de-embedding routes audio to or from video devices.

The VC-1 series converters maintain the characteristics of the original signal, with rich blacks and super-whites, without interlacing artefacts or conversion errors. They support 3G-SDI level A and B as well as HD and SD-SDI, and are HDCP compliant, converting or passing HDCP signals except on SDI outputs. An on-board re-clocker compensates for attenuation of SDI signals over long cable runs, and the VC-1 RCS application for PC/Mac provides remote control.

Key features

• HDMI to SDI and SDI to HDMI conversion
• Built-in frame synchroniser
• Audio and video delay up to 9 fields (4.5 frames)
• 3G (level A and B) / HD / SD-SDI
• HDCP support
• Selectable embedded/de-embedded audio channels

Specifications

• Resolutions: 1920 x 1080, 1280 x 720, 720 x 480, 720 x 576
• Audio out: TRS
• Power consumption: 8 W
• Power: DC 9 V (AC adapter included)
• Dimensions: 150 x 130 x 30 mm
• Weight: 500 g
