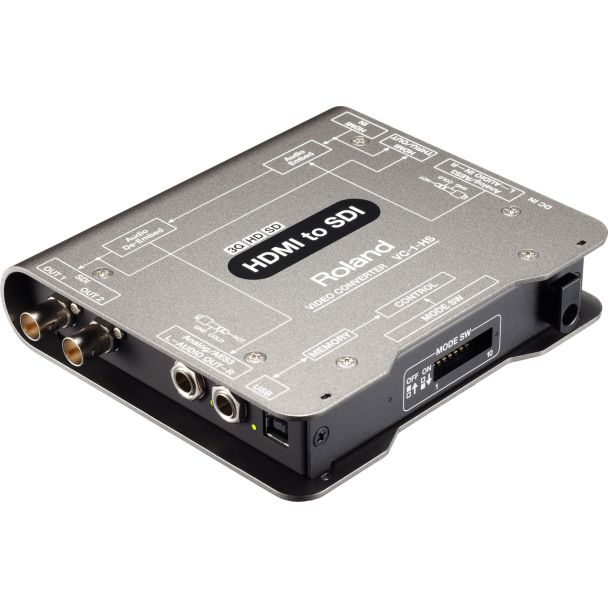

Roland VC-1-HS video signal converter 1920 x 1080 pixels
GTIN: 4957054503604
Roland VC-1-HS HDMI to SDI video converter with audio embedding, 3G (level A/B) / HD / SD-SDI output, HDCP support and remote control software.
Roland VC-1-HS HDMI to SDI Video Converter
The VC-1-HS converts video and audio from an HDMI input to SDI output, extending the signal and embedding audio, so HDMI cameras can feed SDI-based production equipment such as the inputs of a video mixer. The audio channels used for embedding are selectable.
The VC-1 series converters maintain the characteristics of the original signal, with rich blacks and super-whites, without interlacing artefacts or conversion errors. They support 3G-SDI level A and B as well as HD and SD-SDI, and are HDCP compliant, converting or passing HDCP signals except on SDI outputs. An on-board re-clocker compensates for attenuation of SDI signals over long cable runs, and the VC-1 RCS application for PC/Mac provides remote control.
Key features
- HDMI to SDI conversion
- Lossless image conversion
- 3G (level A and B) / HD / SD-SDI
- HDCP support
- Selectable embedded audio channels
Specifications
- Resolutions: 1920 x 1080, 1280 x 720, 720 x 576
- Audio out: TRS
- Control: USB B
- Power consumption: 8 W
- Power: DC 9 V (AC adapter included)
- Dimensions: 150 x 130 x 30 mm
- Weight: 500 g
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | VC-1-HS |
| Ean | 4957054503604 |
| Modified on | 18-04-2015 |
| Product title | Roland VC-1-HS video signal converter 1920 x 1080 pixels |
| Long Product Name | VC-1-HS, HDMI, SDI, HDCP, TRS, USB B, DC 9V, 150x130x30 mm |
| Product specifications | FeaturesProduct colour Black, Grey VideoMaximum video resolution* 1920 x 1080 pixels Ports & interfacesHost interface* HDMI Output interface* SDI Video in HDMI Video out SDI, HDMI Audio output TRS PowerExternal power adapter Yes Operating voltage 9 V Power consumption (typical) 8 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 150 mm Depth 130 mm Height 30 mm Weight 500 g Packaging dataCables included AC AC adapter included Yes Manual Yes Quantity 1 Other featuresSupported resolutions 1920x1080, 1280x720, 720x487, 720x576 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | HDMI |
| Output interface | SDI |
