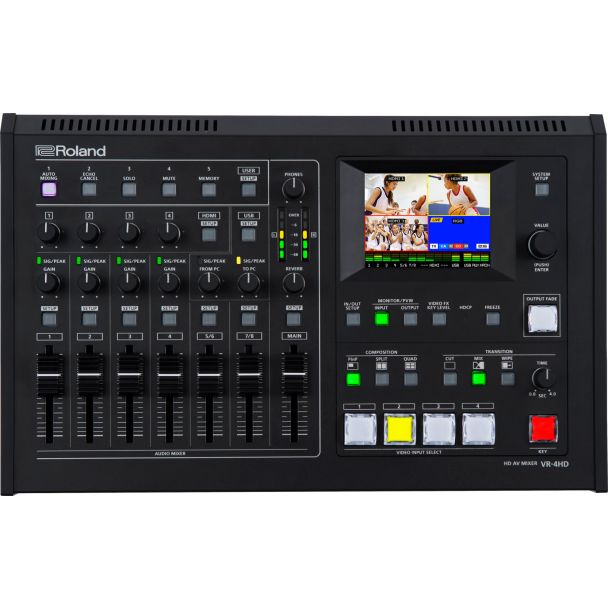

Roland VR-4HD video mixer Full HD
GTIN: 4957054509279
Roland VR-4HD all-in-one HD AV mixer with 4-channel video switcher (HDMI, RGB/component, composite), 18-channel audio mixer, touchscreen multiviewer and USB 3.0 streaming output.
Roland VR-4HD HD AV Mixer
The VR-4HD is a complete, portable HD studio that integrates a digital audio mixer, video switcher, touchscreen multiviewer and USB video/audio streaming interface in one unit designed for single-person operation, for schools, churches, council meetings, corporate events, sports and training. Three HDMI inputs support 1080p/1080i/720p, and the fourth input has a scaler for video and computer resolutions plus analog RGB and component, so older devices can be used without converters. HDCP is supported.
Compositing effects include DSK with luminance and chroma keying, picture-in-picture, split and quad. The 18-channel digital audio mixer takes XLR, TRS and RCA sources plus HDMI audio, with embedding/de-embedding and delay, auto mixing and echo cancelling. The USB 3.0 output streams uncompressed video and audio up to 1080/30p, and the VR-4HD RCS software for Mac and PC provides remote control. Tally and GPIO connections are provided.
Key features
- 6-input, 4-channel video switcher up to 1080p
- Scaler on channel 4 with VESA, RGB and component support
- 18-channel digital audio mixer
- Audio embedding/de-embedding with delay, auto mixing and echo cancel
- DSK, PinP, split and quad effects
- Touchscreen quad multiviewer with audio metering
- USB 3.0 video/audio output up to 1080/30p
- HDCP, tally and GPIO
Specifications
- Ports: HDMI, RGB/component, composite, XLR, RCA, USB 3.0, RS-232
- Dimensions: 339 x 217 x 87 mm
- Weight: 2.4 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | VR-4HD |
| Ean | 4957054509279 |
| Rack mounting | No |
| Modified on | 30-07-2018 |
| Product title | Roland VR-4HD video mixer Full HD |
| Long Product Name | VR-4HD, HDMI, HDCP, USB 3.0, XLR, RCA, RS-232, 339x217x87 mm |
| Product specifications | VideoHD type* Full HD Video resolutions 1280 x 768,640 x 480,800 x 600,1024 x 768,1280 x 1024,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Compression ratio 4:2:2 Video processing 8 bit PerformanceDigital video effects (DVE) Yes NetworkEthernet LAN* No DisplayBuilt-in display* Yes Display type LCD Display resolution 320 x 240 pixels Ports & interfacesHDMI in 4 Number of HDMI outputs 2 VGA (D-Sub) input ports 1 Composite video in 1 XLR in Yes XLR out 2 Audio (L/R) in 1 Ports & interfacesAudio (L/R) out 1 DC-in jack Yes PowerPower source type* AC Output current 3 A DesignRack mounting* No Product colour Black On/off switch Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 339 mm Depth 217 mm Height 87 mm Weight 2.4 kg Packaging contentAC adapter included Yes Manual Yes |
| Essential qualities |
|
| HD type | Full HD |
| Ethernet LAN | No |
| Built-in display | Yes |
| Power source type | AC |
