SmallRig 2947 camera mounting accessory Camera bracket

SmallRig L-Bracket for Nikon Z5 / Z6 / Z7 / Z6 II / Z7 II 2947

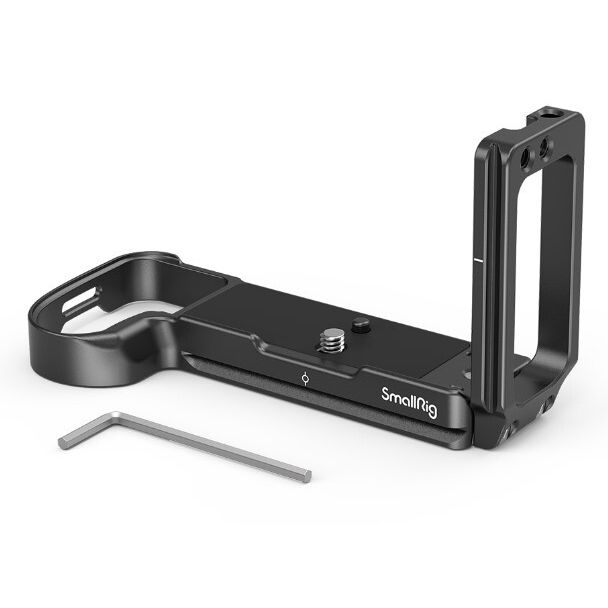

The SmallRig 2947 L-bracket has a modular design with anti-twist flanges that keep the camera from twisting and provide a comfortable grip. The base plate and side plate are Arca-type compatible dovetails for vertical or horizontal mounting. It secures to the bottom of the camera with a 1/4" screw and an anti-twist locating pin, and each axis has a sensor centre line for alignment on a tripod head. The side plate can be extended to the left for tethering or a cable release. Multiple 1/4"-20 threaded holes on the side and bottom take accessories such as cold shoe BUC2736 and cable clamp 2259, and a flat-head screwdriver is stored on the bottom of the bracket.

Key features

• Arca-type dovetails on base and side plate
• Anti-twist flanges and locating pin
• Sensor centre marks on both axes
• Extendable side plate for tethering or cable release
• 1/4"-20 accessory threads and strap slot
• Built-in flat-head screwdriver

Compatibility

• Nikon Z5, Z6, Z7, Z6 II, Z7 II

In the box

• 1 x L-bracket
• 1 x Allen wrench

Specifications

• Dimensions: 146.5 x 84 x 64 mm
• Weight: 149 g
• Material: aluminium alloy
• Colour: black
