SmallRig 4323 camera mounting accessory Mounting plate

SmallRig V-Mount Battery Mount Plate Kit for Cinema Cameras 4323

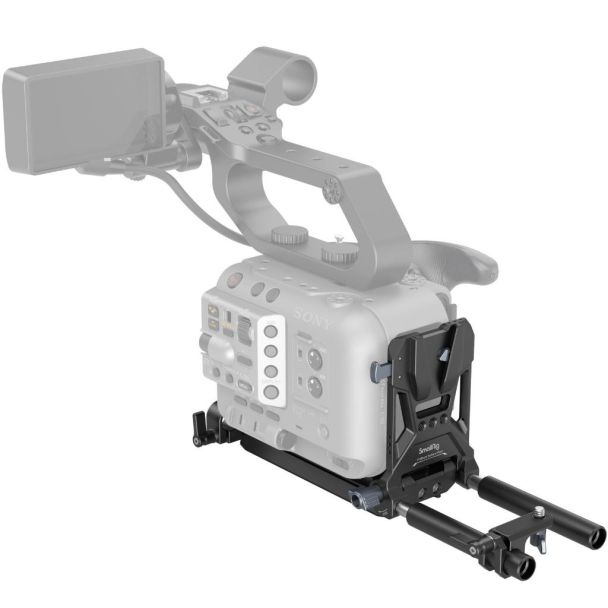

The SmallRig 4323 kit is a compact, lightweight all-in-one V-mount battery solution for small cinema cameras. It includes a V-mount battery mount plate kit, 15 mm rod clamps, 15 mm rods and a wireless receiver mounting bracket. The integrated plate is ready to install and takes a V-mount battery quickly. Thanks to its modular design it weighs about 300 g, or only 230 g with the Manfrotto 501 quick release plate removed.

The baseplate extends by about 100 mm to correct the balance with heavy lenses. The V-mount plate rotates through 180°: forward for storage, backward to keep the rear screen, ports and card slots accessible. The Manfrotto 501 plate underneath allows quick switching between handheld and tripod. A 15 mm rod clamp at the front accepts a follow focus (3781), lens support (BSL2680) or matte box VND kit (3645), and the dual 15 mm rod clamp at the rear takes a video transmitter or chest pad plate MD3183; a bracket for a compact wireless receiver is also included.

Key features

• Integrated, ready-to-use V-mount battery solution
• Light, compact, modular design
• Baseplate extends by up to 100 mm for balance
• 180° rotating V-mount plate
• Built-in Manfrotto 501 quick release plate
• 15 mm rod clamps and wireless receiver bracket

Compatibility

• Sony FX6, Canon C70, Panasonic BGH1 / BS1H, RED KOMODO, Z CAM and cameras shorter than 120 mm

Notes

• Load capacity: 10 kg

In the box

• 1 x V-mount battery mount plate kit
• 1 x 15 mm rod clamp
• 2 x 15 mm rods
• 2 x 1/4"-20 screws
• 1 x Wireless receiver mounting bracket
• 1 x V-mount plate

Specifications

• Dimensions: 291 x 108 x 124 mm
• Weight: 446 g
• Materials: aluminium alloy, stainless steel
• Colour: black
