SmallRig 5318 camera mounting accessory Mounting clamp
GTIN: 6941590022451
Kit of two aluminium crab-shaped super clamps with 1/4"-20 and 3/8"-16 top screws, detachable wedge block for flat surfaces up to 30 mm or tubes of 10-55 mm, 15 kg load capacity.
SmallRig Crab-Shaped Clamp Kit 5318

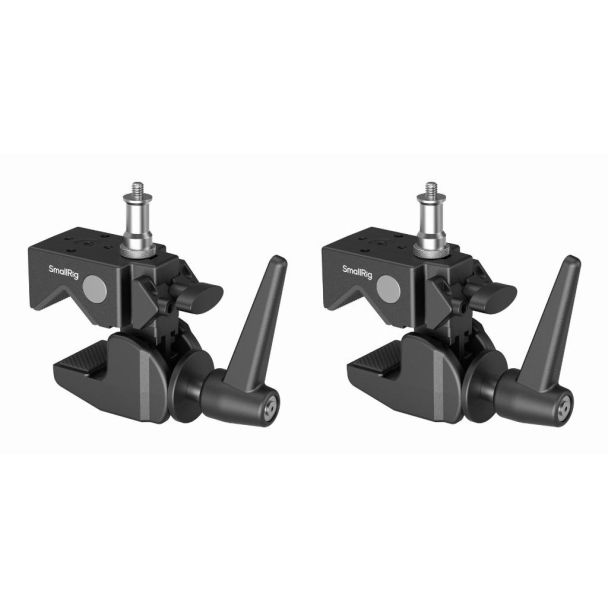

The SmallRig 5318 kit contains two durable aluminium crab-shaped clamps. Each has a 1/4"-20 and 3/8"-16 top screw plus 1/4"-20 and M5 threaded holes, supports up to 15 kg and accepts SmallRig magic arms such as 3873, 4899 and 4900. Without the detachable wedge block the clamp grips round tubes from 10 to 55 mm in diameter; with the wedge block it clamps flat surfaces up to 30 mm thick. This lets you attach cameras, microphones, monitors and video lights to tubes, tables, tripod legs and stabilizer rings, while built-in pads in the jaws protect the clamped object and improve grip.
Key features
- Load capacity 15 kg
- 1/4"-20 and 3/8"-16 top screw, 1/4"-20 and M5 threaded holes
- Detachable wedge block for flat surfaces
- Clamps tubes from 10 to 55 mm, flat surfaces up to 30 mm thick
- Built-in protective pads in the jaws
- Aluminium alloy construction
Compatibility
- SmallRig magic arms 3873, 4899, 4900
Notes
- Remove the wedge block for cylindrical objects (10-55 mm diameter)
- Fit the wedge block for flat surfaces; not recommended above 30 mm thickness
In the box
- 2 x Super clamps
- 2 x 1/4"-20 to 3/8"-16 thread adapters
- 4 x M5 screws
Specifications
- Dimensions: 200 x 146 x 44 mm
- Weight: 1120 g
- Load capacity: 15 kg
- Material: aluminium alloy
- Colour: black, grey
| Product Condition | New |
|---|---|
| Manufacturer | SmallRig |
| manufacturer code | 5318 |
| Ean | 6941590022451 |
| Essential qualities |
|
| Product type | Mounting clamp |
