SmallRig Cage Kit camera cage 1/4-20" Black

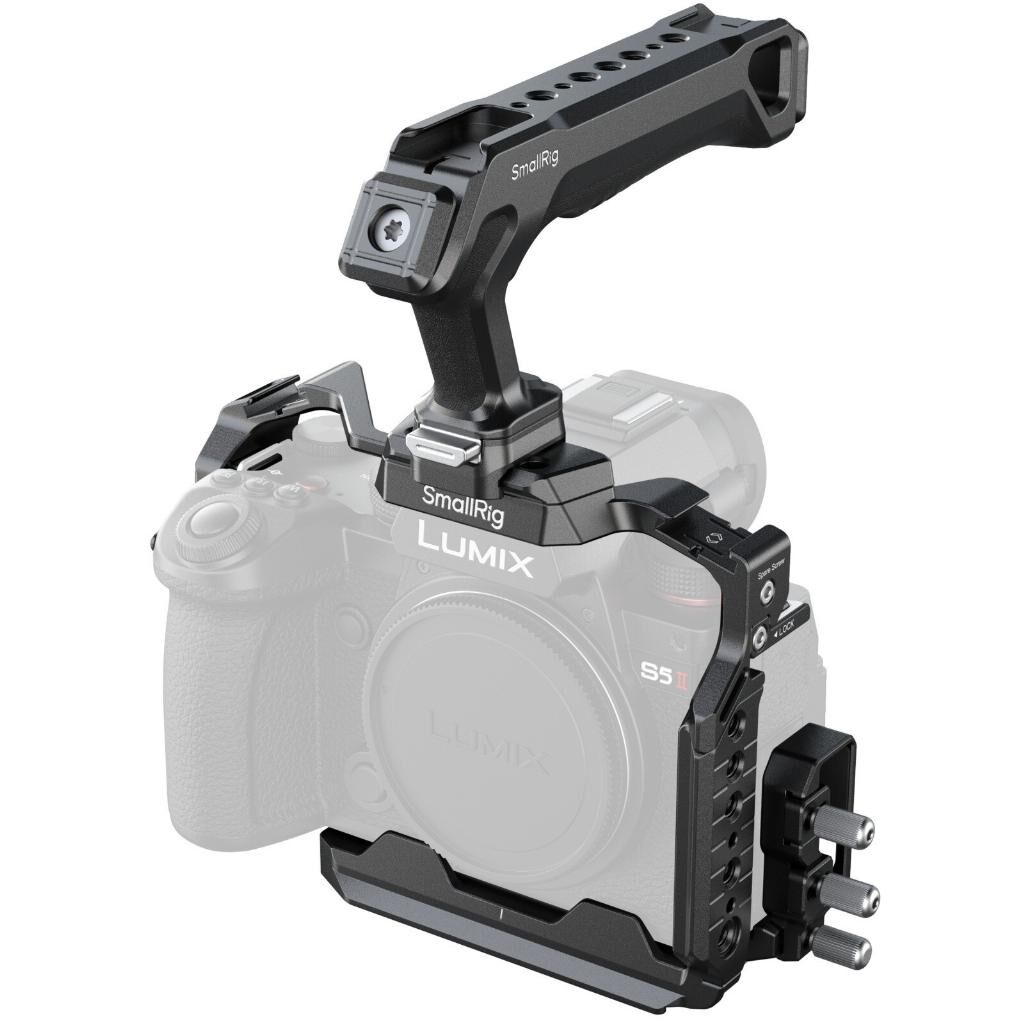

SmallRig Cage Kit for Panasonic G9 II / S5 II / S5 IIX 5752

The SmallRig 5752 kit is designed for handheld shooting and for attaching accessories to the Panasonic LUMIX G9 II, S5 II and S5 IIX. It includes a cage, an HDMI & USB-C cable clamp and an ergonomic top handle that connects to the cage via a HawkLock H21 quick release NATO clamp. The thumbscrew-tightened cable clamp secures the HDMI and USB-C cables at the same time.

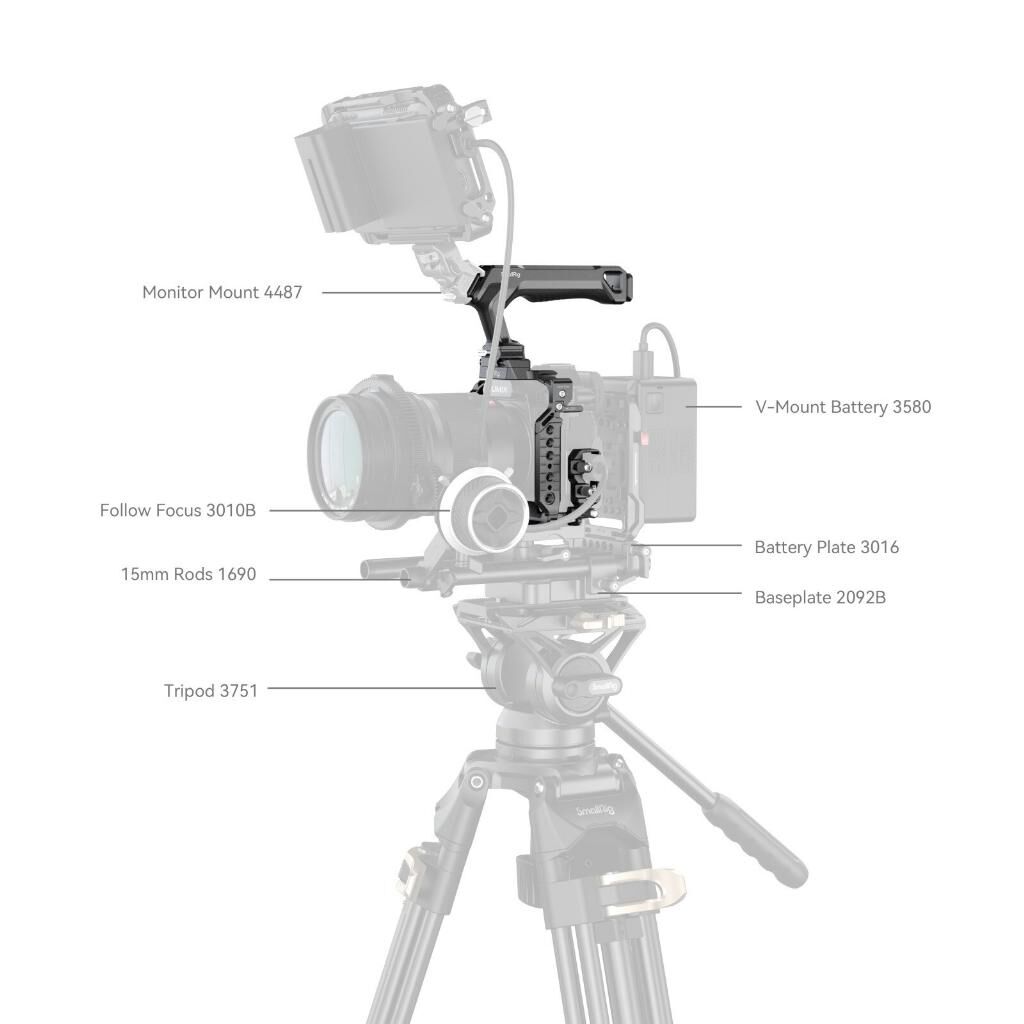

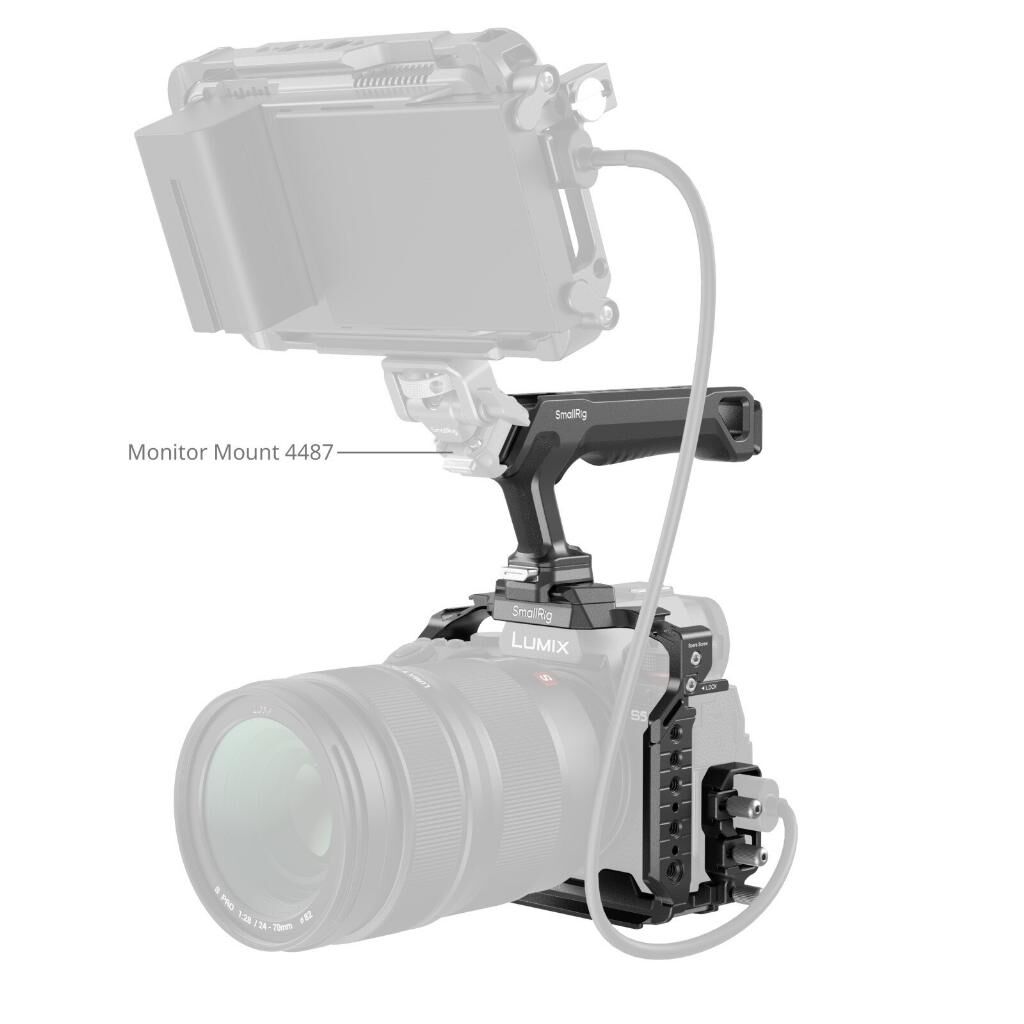

Mounting points include 1/4"-20 threaded holes for the side handle 3323, cold shoe mounts for the SSD holder 5196, microphones, LED lights or monitors, and ARRI 3/8"-16 locating holes for the monitor mount 2903B. A HawkLock H21 NATO rail on the left takes the side handle 4485, strap holes on both sides accept a hand strap, and the Arca-Swiss quick release base fits Arca-Swiss tripods and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro / RS 5 gimbals. A magnetic wrench is included.

Key features

• Cage, cable clamp and top handle in one kit
• Top handle with HawkLock H21 quick release NATO clamp
• Thumbscrew cable clamp for HDMI and USB-C at the same time
• Cold shoe mounts, 1/4"-20 threaded holes and ARRI 3/8"-16 locating holes
• HawkLock H21 NATO rail on the left side
• Strap holes on both sides
• Arca-Swiss quick release base
• Magnetic wrench

Compatibility

• Panasonic LUMIX G9 II, S5 II, S5 IIX
• Arca-Swiss tripods; DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro / RS 5 gimbals

Notes

• Remove the side lock adapters before installing the cage
• The cage is compatible with Panasonic DMW-XLR1 / XLR2, but the top handle in the kit is not; for these units SmallRig recommends the top handle 3082

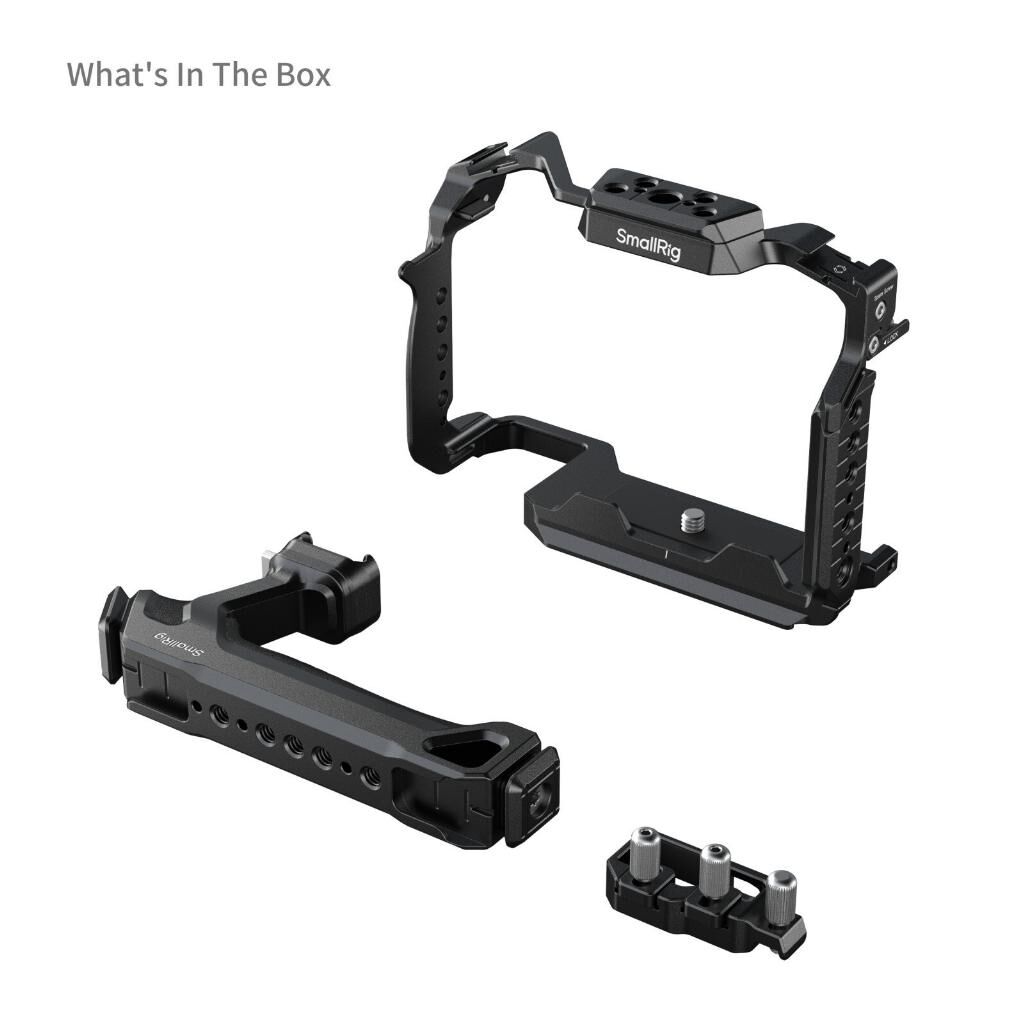

In the box

• 1 x Cage
• 1 x HDMI & USB-C cable clamp
• 1 x Top handle

Specifications

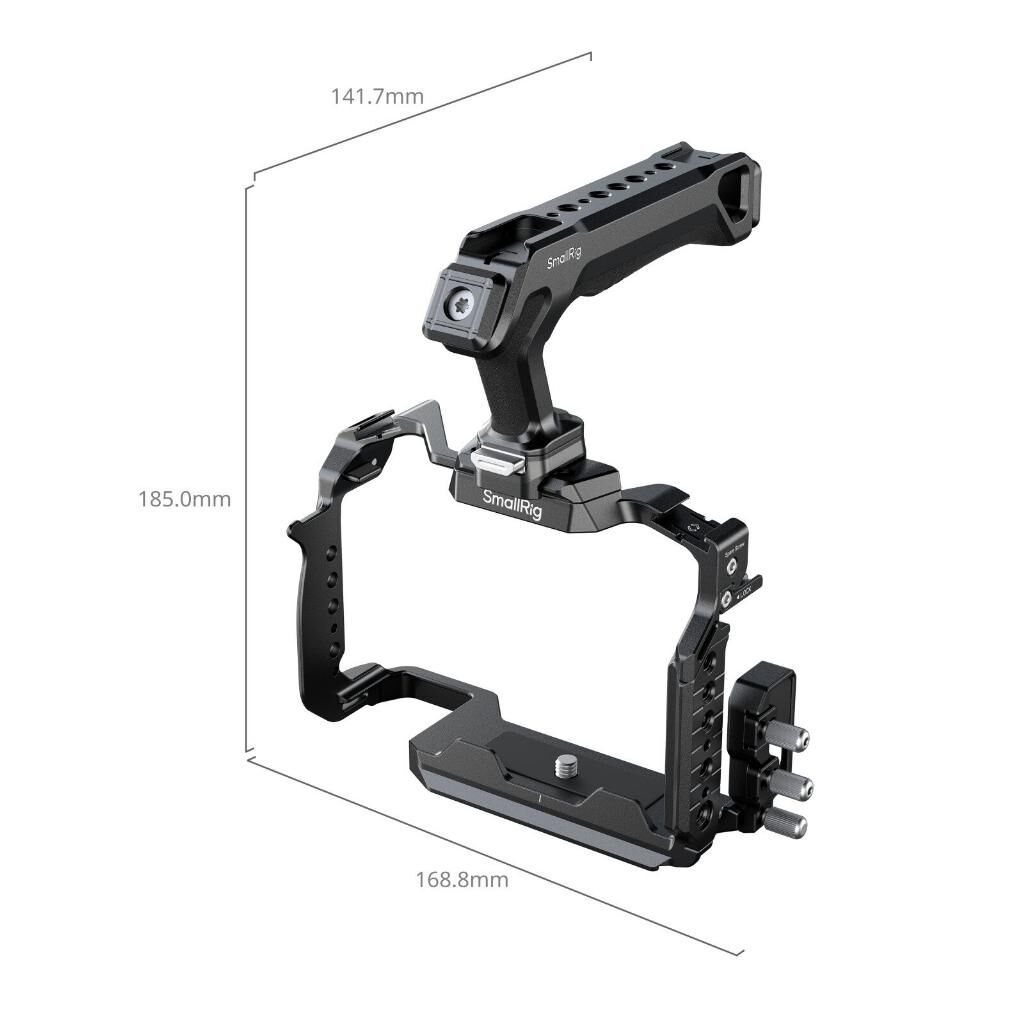

• Dimensions: 168.8 x 185 x 141.8 mm
• Weight: 356 g
• Materials: aluminium alloy, stainless steel, silicone
• Colour: black
