SmallRig Cooling Fan for Sony Selected Cameras 5152

SmallRig Cooling Fan for Sony Selected Cameras 5152

The SmallRig 5152 cooling fan is designed to cool Sony mirrorless cameras and extend recording time for high-spec video. It combines a high-speed fan with a TEC cooling module to dissipate heat quickly and prevent overheating. Two speeds are available: Normal Mode (4500 rpm, under 40 dB) for quiet indoor use and Enhanced Mode (7000 rpm, under 50 dB) for hot environments or intensive shooting. The spring-loaded snap-in design mounts and removes without tools, and the fan can be used with or without a cage. It is powered via USB-C and is compatible with the SmallRig V-mount battery plate kits 4505, 4064B and 4063B with V-mount batteries 3579, 3580 and 4292.

Key features

• High-speed fan with TEC cooling module
• Normal Mode 4500 rpm (under 40 dB) and Enhanced Mode 7000 rpm (under 50 dB)

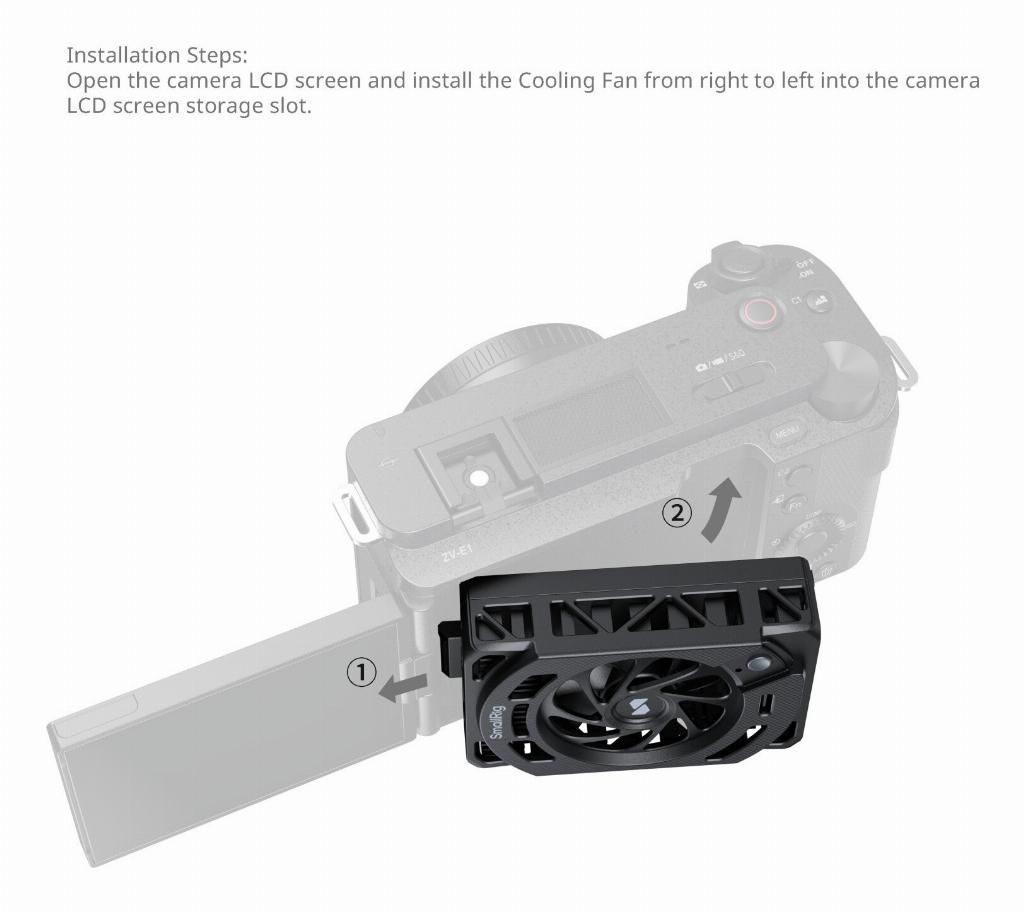

• Tool-free spring-loaded snap-in mounting

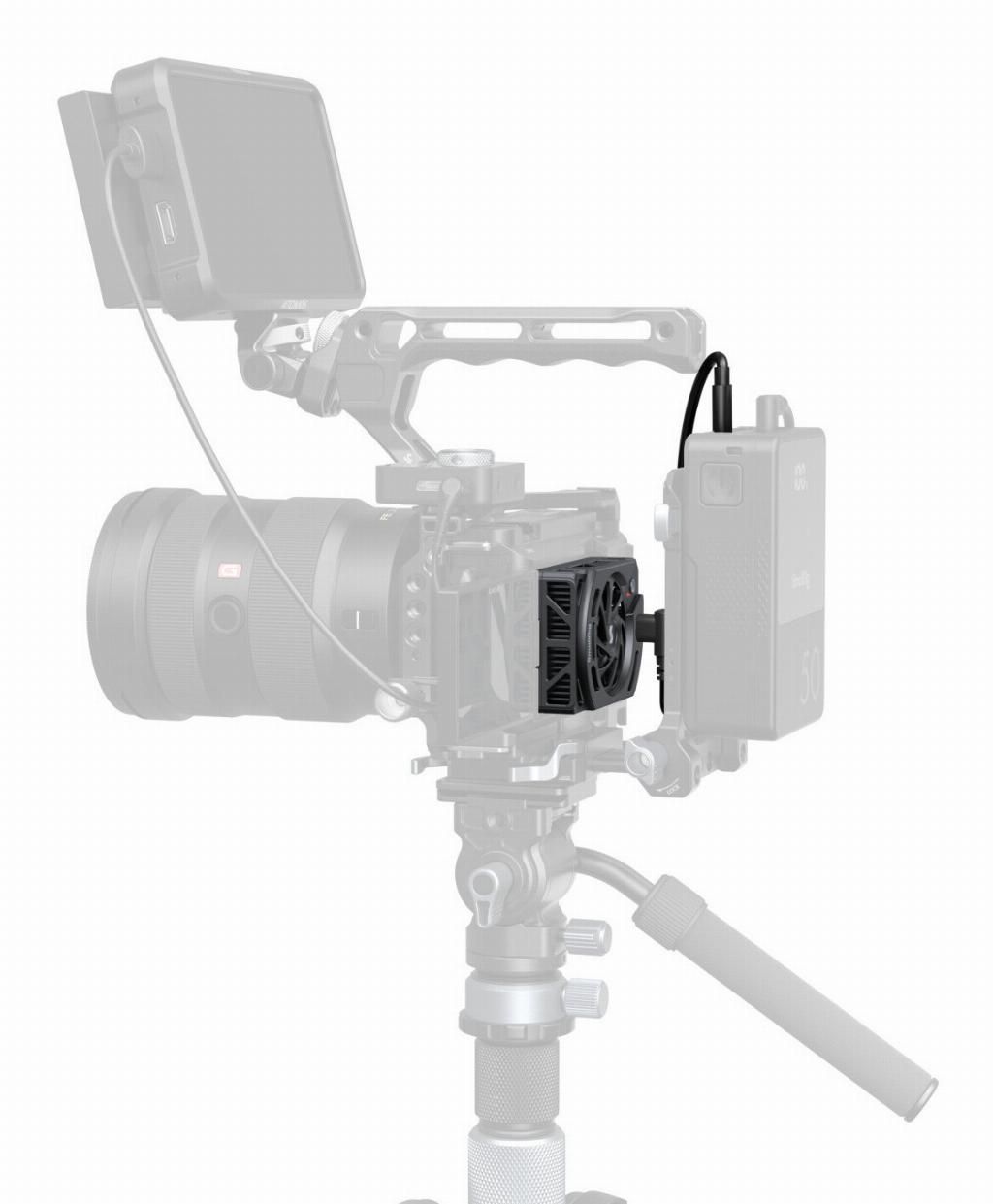

• Usable with or without a camera cage
• USB-C power input
• Compatible with SmallRig V-mount battery plate kits 4505, 4064B, 4063B

Compatibility

• Sony ZV-E1, ZV-E10 II, ZV-E10, ZV-1, ZV-1F
• Sony Alpha 7 IV, Alpha 7S III, Alpha 7C, Alpha 7C II, Alpha 7CR, Alpha 6700
• Sony FX3, FX30

Notes

• With the fan fitted the camera LCD cannot be stowed: remove the fan first
• No built-in battery: requires an external power source
• Not waterproof: do not store or use in humid environments
• Do not block the air inlet or outlet while running
• Do not keep cooling the camera when it is not operating, to avoid internal condensation

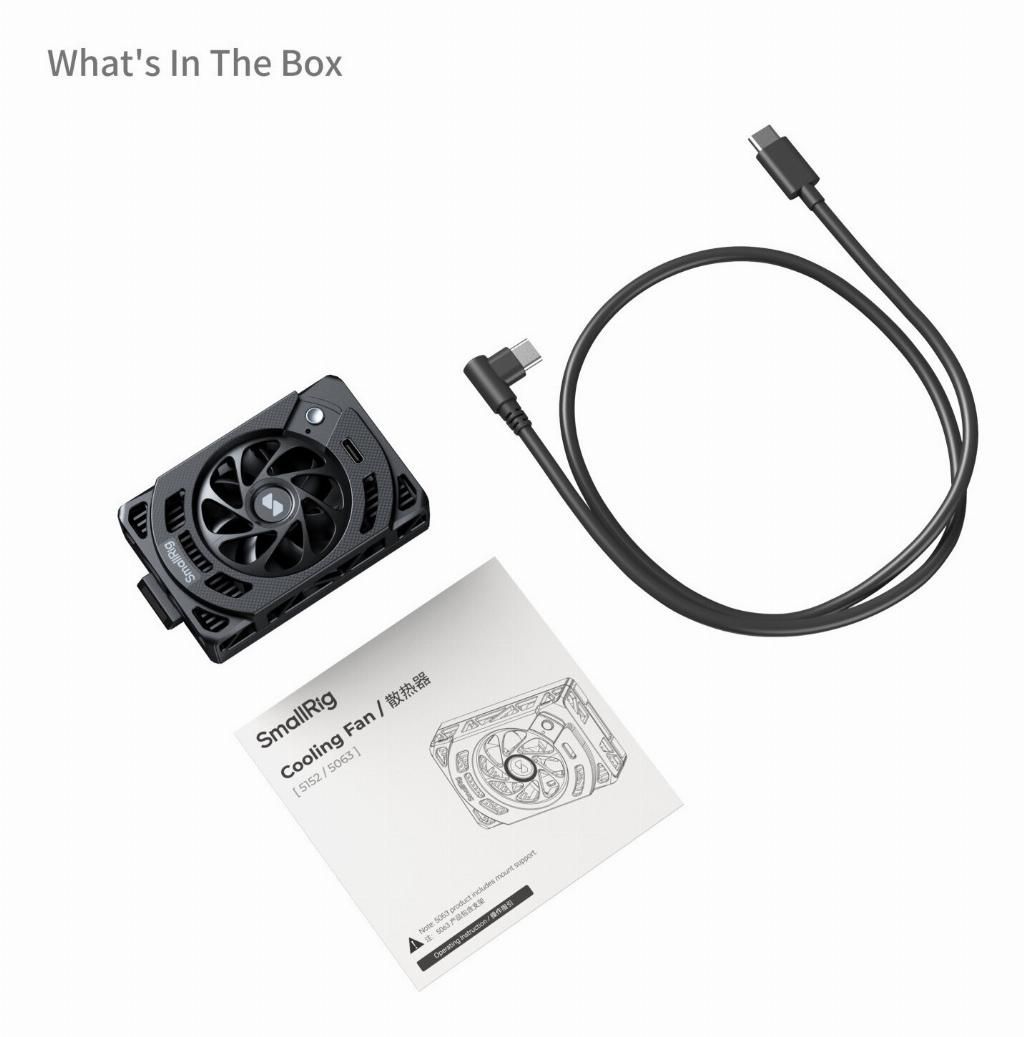

In the box

• 1 x Cooling fan
• 1 x USB-C cable
• 1 x Operating instructions

Specifications

• Operating voltage: 4.5-10.8 V
• Operating current: 1-2 A
• Operating power: 5-18 W
• Operating temperature: 0 to 45 °C
• Cooling principle: TEC

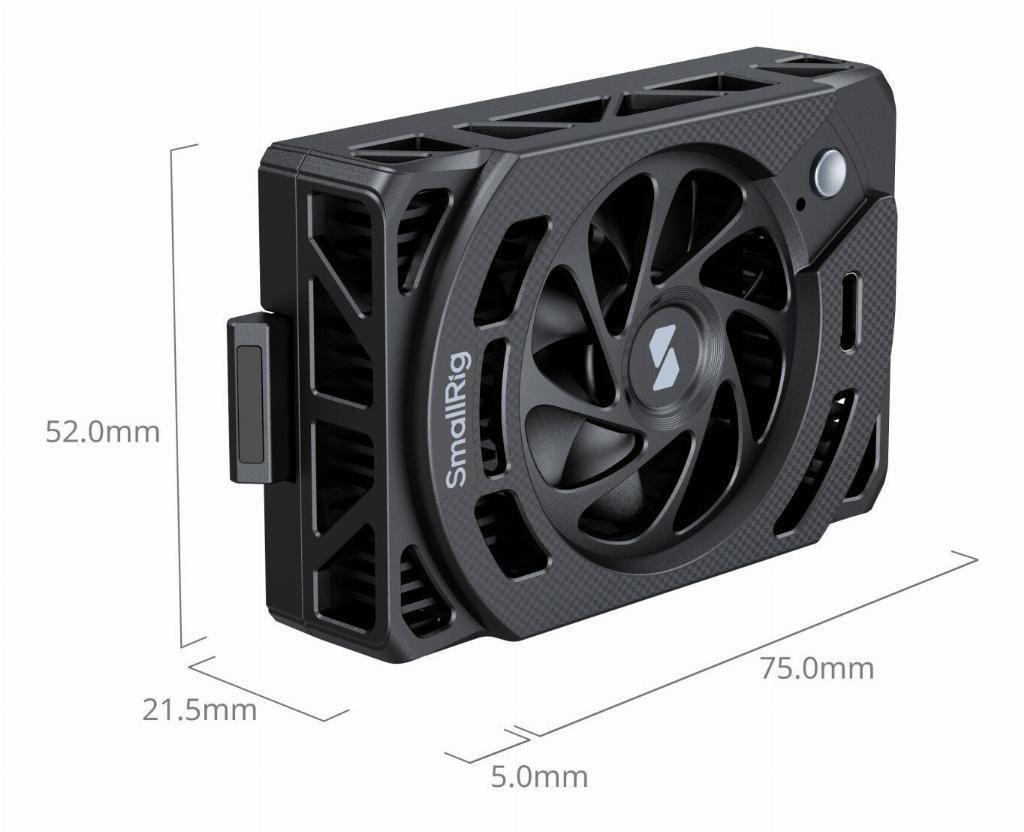

• Dimensions: 75 x 51.9 x 21.6 mm
• Weight: 98 g
• Materials: aluminium alloy, ABS-PC (housing)
• Colour: black
