SmallRig Fluid Head DH-01 3985

SmallRig Fluid Head DH-01 3985

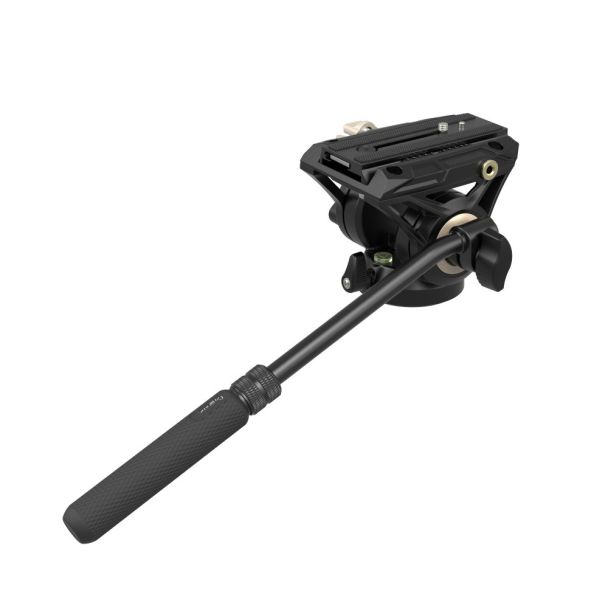

The SmallRig Fluid Head DH-01 3985 is designed for video production. Its base uses a drop-in quick release design, faster than a traditional slide-in structure, and accepts DJI RS 2, RS 3 and RS 3 Pro quick release plates as well as Manfrotto-type plates, for quick switching between tripod and gimbal. Threaded holes and wrenches are built into the head and quick release plate for camera setup and storing spare screws. The telescopic handle is easy to use and store, and the 3/8"-16 threaded hole at the bottom connects directly to tripods, sliders and other equipment. The head pans 360° and tilts +90°/-75°, with a damping and balancing system that keeps good dynamic balance with a 5 kg load.

Key features

• Drop-in quick release, no alignment needed
• Accepts DJI RS 2/RS 3/RS 3 Pro and Manfrotto-type plates
• Telescopic handle
• 360° pan, +90°/-75° tilt
• Damping and counterbalance system
• Hidden wrench and storage for spare screws

In the box

• Fluid head x 1
• Manfrotto-type quick release plate x 1

Specifications

• Maximum load: 8 kg (5 kg recommended)
• Base: 3/8"-16 thread
• Dimensions: 260 x 156 x 105 mm
• Weight: 936 g
• Materials: aluminium alloy, silicone
