Sonnet BRD-UPGRTB3-SE2 interface cards/adapter Internal Thunderbolt 3
GTIN: 0732311012266
Sonnet Thunderbolt 3 upgrade card for the Echo Express SE II expansion chassis, with two 40 Gbps Thunderbolt 3 ports, USB 3.1 Gen 2 support and ThunderLok 3 compatibility.

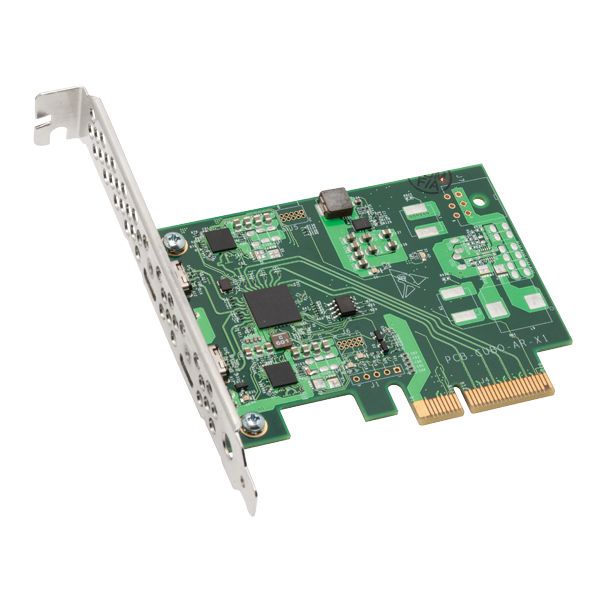

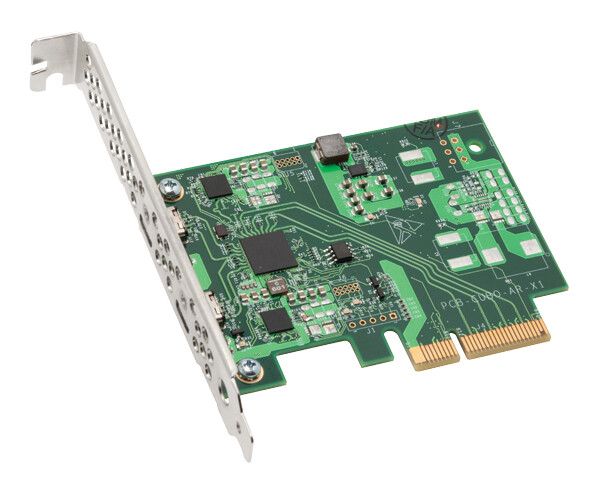

Sonnet Thunderbolt 3 Upgrade Card for Echo Express SE II BRD-UPGRTB3-SE2
The Sonnet BRD-UPGRTB3-SE2 replaces the Thunderbolt interface of the Echo Express SE II with a Thunderbolt 3 card, instead of using an adapter. It provides 40 Gbps Thunderbolt 3 bandwidth (an adapter is limited to the 20 Gbps of Thunderbolt 2) and supports daisy-chaining further Thunderbolt 3 devices at 40 Gbps, whereas with an adapter all downstream devices can only be Thunderbolt or Thunderbolt 2.
The card also supports 10 Gbps USB 3.1 Gen 2, so a USB device can be connected to the second port with the proper cable or adapter, and it supports two 4K displays at 60 Hz or one 5K display at 60 Hz. It is compatible with the ThunderLok 3 Thunderbolt connector retainer clip (sold separately), which secures the cable to the chassis with a thumbscrew.
Key features
- Two Thunderbolt 3 ports, 40 Gbps
- Thunderbolt 3 daisy-chaining at full bandwidth
- USB 3.1 Gen 2 (10 Gbps) support on the second port
- Supports two 4K @ 60 Hz or one 5K @ 60 Hz display
- ThunderLok 3 compatible
Compatibility
- Sonnet Echo Express SE II
| Product Condition | New |
|---|---|
| Manufacturer | Sonnet Technologies |
| manufacturer code | BRD-UPGRTB3-SE2 |
| Ean | 0732311012266 |
| Modified on | 01-03-2019 |
| Warranty | 2 Years |
| Product title | Sonnet BRD-UPGRTB3-SE2 interface cards/adapter Internal Thunderbolt 3 |
| Long Product Name | PCIe, 2 x Thunderbolt 3, 40 Gbps, f/ Echo Express SE II |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* Thunderbolt 3 DesignInternal* Yes Product colour Green, Silver FeaturesData transfer rate (max) 40 Gbit/s Bandwidth 1.75 Gbit/s Operational conditionsOperating temperature (T-T) 0 - 35 °C System requirementsWindows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave Technical detailsSustainability certificates RoHS Compliance certificates RoHS Packaging dataQuantity 1 User guide Yes Other featuresCompatibility Echo Express SE II |
| Essential qualities |
|
| Host interface | PCIe |
| Output interface | Thunderbolt 3 |
| Internal | Yes |
