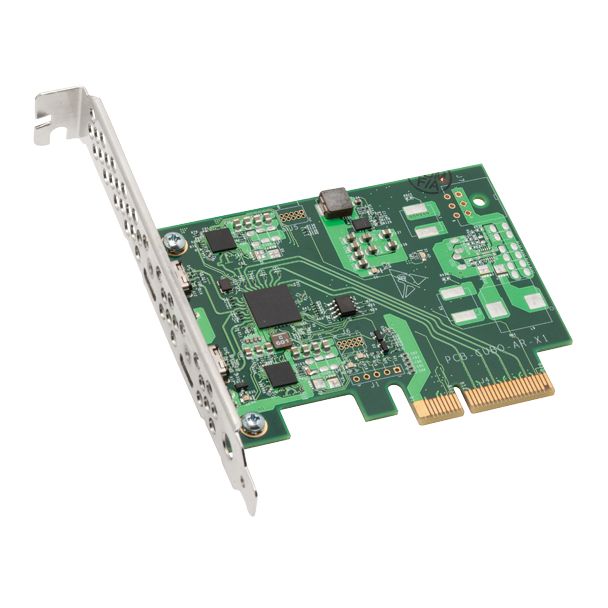

Sonnet BRD-UPGRTB3-SEL interface cards/adapter Internal Thunderbolt 3
GTIN: 0732311012082
Sonnet Thunderbolt 3 upgrade card for the Echo Express SEL expansion chassis, with two 40 Gbps Thunderbolt 3 ports, USB 3.1 Gen 2 support and ThunderLok 3 compatibility.

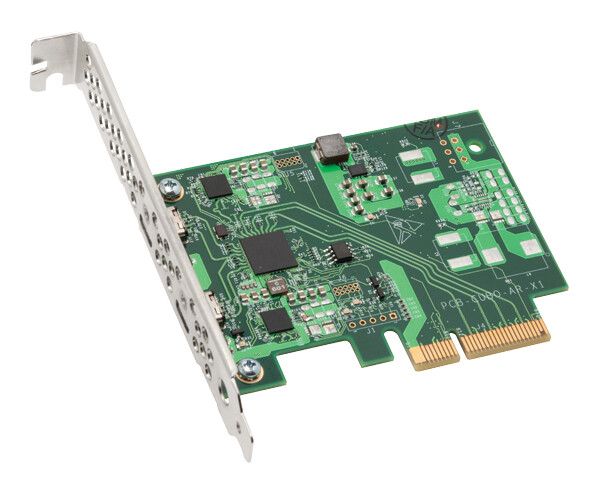

Sonnet Thunderbolt 3 Upgrade Card for Echo Express SEL BRD-UPGRTB3-SEL
The Sonnet BRD-UPGRTB3-SEL replaces the Thunderbolt interface of the Echo Express SEL with a Thunderbolt 3 card, instead of using an adapter. It provides 40 Gbps Thunderbolt 3 bandwidth (an adapter is limited to the 20 Gbps of Thunderbolt 2) and supports daisy-chaining further Thunderbolt 3 devices at 40 Gbps, whereas with an adapter all downstream devices can only be Thunderbolt or Thunderbolt 2.
The card also supports 10 Gbps USB 3.1 Gen 2, so a USB device can be connected to the second port with the proper cable or adapter, and it supports two 4K displays at 60 Hz or one 5K display at 60 Hz. It is compatible with the ThunderLok 3 Thunderbolt connector retainer clip (sold separately), which secures the cable to the chassis with a thumbscrew.
Key features
- Two Thunderbolt 3 ports, 40 Gbps
- Thunderbolt 3 daisy-chaining at full bandwidth
- USB 3.1 Gen 2 (10 Gbps) support on the second port
- Supports two 4K @ 60 Hz or one 5K @ 60 Hz display
- ThunderLok 3 compatible
Compatibility
- Sonnet Echo Express SEL
| Product Condition | New |
|---|---|
| Manufacturer | Sonnet Technologies |
| manufacturer code | BRD-UPGRTB3-SEL |
| Ean | 0732311012082 |
| Warranty | 2 Years |
| Product title | Sonnet BRD-UPGRTB3-SEL interface cards/adapter Internal Thunderbolt 3 |
| Long Product Name | PCIe, 2 x Thunderbolt 3, 40 Gbps, f/ Echo Express SEL |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* Thunderbolt 3 DesignInternal* Yes Product colour Green, Silver FeaturesData transfer rate (max) 40 Gbit/s Bandwidth 2.75 Gbit/s Operational conditionsOperating temperature (T-T) 0 - 35 °C System requirementsWindows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave Technical detailsCompliance certificates RoHS Packaging dataQuantity 1 User guide Yes Other featuresCompatibility Echo Express SEL |
| Essential qualities |
|
| Host interface | PCIe |
| Output interface | Thunderbolt 3 |
| Internal | Yes |
