Sonnet Presto 10GbE Internal Ethernet 10000 Mbit/s
GTIN: 0732311011955
In stock
SKU
SON-G10E-2X-E3
Special Price €268.97 €220.47 Regular Price €283.13

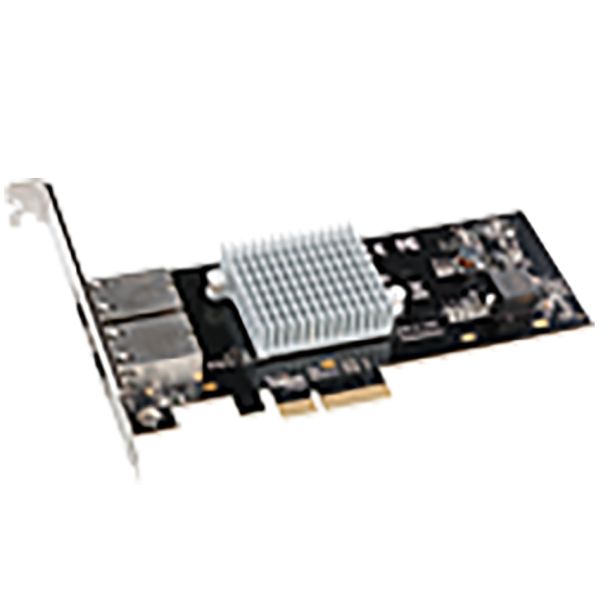

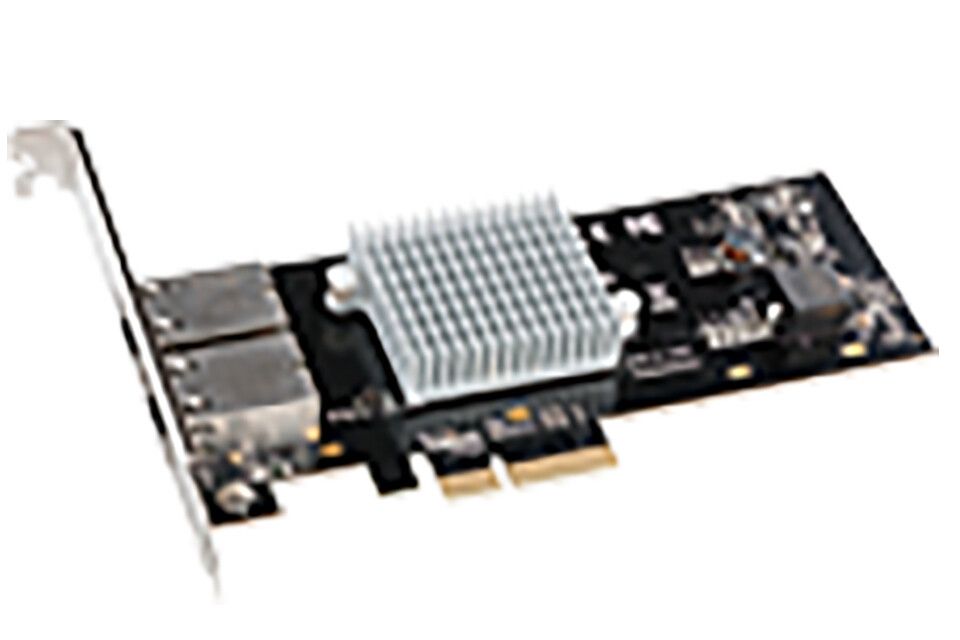

Sonnet Presto 10GbE dual-port 10GBASE-T low-profile PCIe 3.0 x4 card with Intel X550 controller, failover and link aggregation, for Mac Pro towers, Windows PCs and Linux servers.
Sonnet Presto 10GbE 2-Port 10GBASE-T PCIe Card G10E-2X-E3
The Sonnet Presto 10GbE adds dual-port 10GbE connectivity to Mac Pro towers, Windows PCs and Linux servers with PCIe slots, and is ideal in Sonnet Echo Express and xMac Thunderbolt to PCIe expansion systems. It connects to 10GbE infrastructure via inexpensive CAT 6 or CAT 6A cables at up to 55 or 100 m respectively. The low-profile x4 PCIe 3.0 card is configured through the macOS Network control panel or Windows Device Manager after a simple driver installation, and supports transparent failover and link aggregation (teaming).
Key features
- Two RJ45 10GBASE-T ports (also 100 Mb, 2.5, 5 Gb)
- Low-profile PCIe 3.0 x4 card
- Intel X550 controller
- Transparent failover and link aggregation
- CAT 6 up to 55 m, CAT 6A up to 100 m
- Optimised for Sonnet Thunderbolt expansion systems
| Product Condition | New |
|---|---|
| Manufacturer | Sonnet Technologies |
| manufacturer code | G10E-2X-E3 |
| Ean | 0732311011955 |
| Internal | Yes |
| Component for | Server |
| Modified on | 09-09-2016 |
| Warranty | 2-year |
| Product title | Sonnet Presto 10GbE Internal Ethernet 10000 Mbit/s |
| Long Product Name | Presto 10GbE, 2x RJ-45, Intel X550, PCI E 3.0 x4, 10GBASE-T |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* PCI Express Interface* Ethernet Ethernet LAN (RJ-45) ports 2 PCI version 3.0 NetworkMaximum data transfer rate* 10000 Mbit/s Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet Ethernet LAN data rates 100,2500,5000,10000 Mbit/s Supported network protocols TCP, UDP, IPv4 LAN controller Intel® X550 DesignComponent for* Server Product colour Black, Grey DesignInternal* Yes System requirementsWindows operating systems supported Windows 10, Windows 7, Windows 8 Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Linux operating systems supported Yes Server operating systems supported Windows Server 2008, Windows Server 2012, Windows Server 2016 SustainabilitySustainability certificates RoHS Packaging contentManual Yes Technical detailsCompliance certificates RoHS Other featuresFlow control support Yes |
| Essential qualities |
|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Maximum data transfer rate | 10000 Mbit/s |
