Supermicro 847BE1C12 Rack Black 1600 W
GTIN: 0672042462636
4U storage chassis with 36 x 3.5" hot-swap SAS/SATA bays (24 front + 12 rear), SAS3 expander plus 12 NVMe backplane, redundant 1600 W Titanium power supplies and 7 low-profile slots, black.

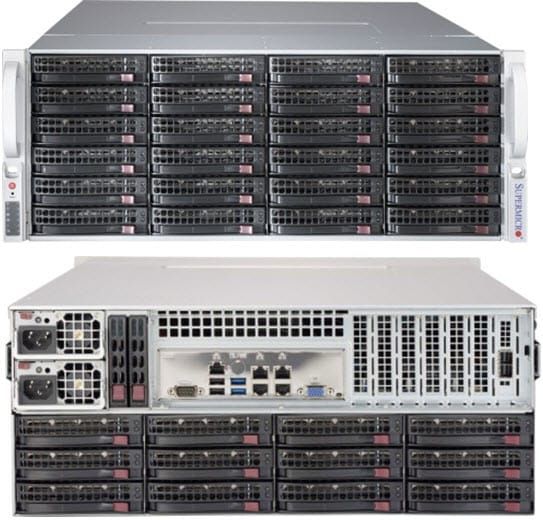

Supermicro SuperChassis 847BE1C12-R1K68LPB4 4U 36-Bay Storage Chassis 1600 W Redundant
The Supermicro SuperChassis 847BE1C12-R1K68LPB4 is a 4U chassis for 12" x 10", 13.68" x 13" and 9.6" x 9.6" motherboards, with thirty-six 3.5" hot-swap SAS/SATA drive bays (24 front, 12 rear) with SES3, supporting SAS3/2 or SATA3 drives at 12 Gb/s. The E1C12 backplane combines a single SAS3 12 Gb/s expander with 12 NVMe bays (8 front, 4 rear) and Mini-SAS HD (SFF-8643) connectivity. Power comes from redundant (1+1) 1600 W Titanium Level supplies with PMBus, and seven middle 8 cm hot-swap fans (13,500 rpm) with an adjustable air shroud provide cooling. It ships on a pallet.
Key features
- Supports 12" x 10", 13.68" x 13" and 9.6" x 9.6" motherboards
- 36 x 3.5" hot-swap SAS/SATA drive bays (24 front + 12 rear) with SES3
- E1C12 backplane: single SAS3 12 Gb/s expander plus 12 x NVMe (8 front, 4 rear)
- Mini-SAS HD (SFF-8643) connectivity
- Optional rear 2.5" removable drive
- Redundant (1+1) 1600 W Titanium Level power supplies with PMBus
- 7 low-profile expansion slots
- 7 x 8 cm hot-swap fans (13,500 rpm) and adjustable air shroud
Specifications
- Form factor: 4U rackmount
- Depth: 699 mm
- Operating temperature: 5 to 35 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | CSE-847BE1C12-R1K68LPB4 |
| Ean | 0672042462636 |
| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Number of 3.5" bays | 36 |
| Product title | Supermicro 847BE1C12 Rack Black 1600 W |
| Long Product Name | 4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6", 7x Low-profile expansion slot(s), 36x 3.5" hot-swap SAS/SATA drive bay with SES3 |
| Product specifications | DesignForm factor* Rack Type* Server Product colour* Black Number of 3.5" bays* 36 Power supplyPower supply included* Yes Power supply 1600 W StorageSupported HDD sizes* 3.5" Operational conditionsOperating temperature (T-T) 5 - 35 °C Operational conditionsStorage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsDepth 699 mm Packaging dataPackage width 691 mm Package depth 1006 mm Package height 442 mm |
| Essential qualities |
|
| Power supply included | Yes |
| Supported HDD sizes | 3.5" |
