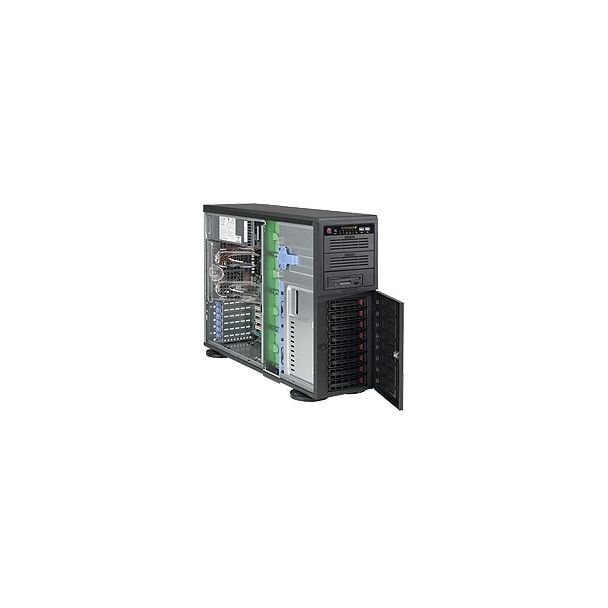

Supermicro CSE-743TQ-903B-SQ computer case Full Tower Black 903 W
GTIN: 0672042434428
Tower/4U server chassis with 8 x 3.5"/2.5" hot-swap SAS/SATA bays, 3 x 5.25" bays, 7 PCIe slots, 903 W 80 PLUS Gold power supply and front USB 3.0, black.
Supermicro SuperChassis 743TQ-903B-SQ Tower/4U Chassis 903 W, Black
The Supermicro SC743TQ-903B-SQ is a tower server chassis with an eight-bay 3.5"/2.5" SAS/SATA backplane for hot-swap drives and three external 5.25" bays, powered by a 903 W 80 PLUS Gold certified supply. The SC743 series is optimized for Intel Xeon processors and is also compatible with previous-generation Intel and AMD single and dual-processor motherboards. Eight hot-swap drive bays allow easy maintenance, and a combination of high-performance fans minimizes the risk of downtime from thermal issues. Seven tool-less PCIe expansion slots and 6-pin power connectors support up to three high-end graphics cards, and the tower can optionally be converted to mount in a standard rack (4U).
Key features
- 8 x 3.5"/2.5" hot-swap SAS/SATA drive bays with backplane
- 3 x external 5.25" bays
- 7 tool-less PCIe expansion slots, power for up to 3 graphics cards
- Supports E-ATX, ATX and Micro-ATX motherboards
- 903 W 80 PLUS Gold power supply
- 2 x 8 cm PWM fans and 1 x 9 cm rear PWM fan
- 2 x front USB 3.0
- Optional rack conversion (4U)
Specifications
- Dimensions: 178 x 647 x 452 mm (W x D x H)
- Weight: 24 kg
- Operating temperature: 5 to 35 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | CSE-743TQ-903B-SQ |
| Ean | 0672042434428 |
| Form factor | Full Tower |
| Type | Server |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 3 |
| Warranty | 1 year |
| Product title | Supermicro CSE-743TQ-903B-SQ computer case Full Tower Black 903 W |
| Long Product Name | 8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives, 2x USB 3.0, 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan, 4U, 903W 80-Plus Gold Certified, 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives |
| Product specifications | DesignForm factor* Full Tower Type* Server Product colour* Black Supported motherboard form factors* ATX, EATX, micro ATX Number of 3.5" bays* 8 Number of 5.25" bays* 3 Number of 2.5" bays 8 Number of external 5.25" bays 3 Number of expansion slots 7 Rack mounting Yes Rack capacity 4U Reset button Yes On/off button Yes LED indicators Fan fail, HDD, Network, Power, Status Certification 80 Plus Gold Certified Power supplyPower supply included* Yes Power supply 903 W ATX power connector (20+4 pin) Yes Number of SATA connectors 8 Ports & interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 CoolingFront fans installed 2x 80 mm Number of front fans supported (max) 2 Front fans diameters supported 80 mm Rear fans installed 1x 90 mm Number of rear fans supported (max) 1 Rear fans diameters supported 90 mm StorageSupported HDD sizes* 2.5,3.5,5.25" Number of HDDs supported 19 Hot-swap Yes Operational conditionsOperating temperature (T-T) 5 - 35 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 178 mm Depth 647 mm Height 452 mm Weight 24 kg Logistics dataHarmonized System (HS) code 84733080 |
| Power supply included | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Supported HDD sizes | 2.5,3.5,5.25" |
