Supermicro M12SWA-TF Socket sWRX8 Extended ATX
GTIN: 0672042441679
In stock
SKU
SUP-MBD-M12SWA-TF-B
Special Price €815.17 €668.17 Regular Price €886.05
E-ATX workstation motherboard for AMD Ryzen Threadripper PRO 5000WX/3000WX (Socket sWRX8), 8 DIMM slots up to 2 TB DDR4-3200, 6 PCIe 4.0 x16 slots, 4 M.2, 2 U.2, 10GbE and 7.1 audio.

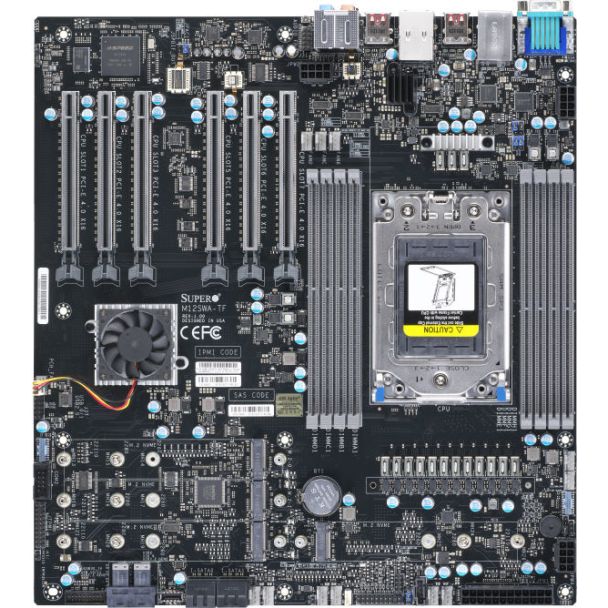

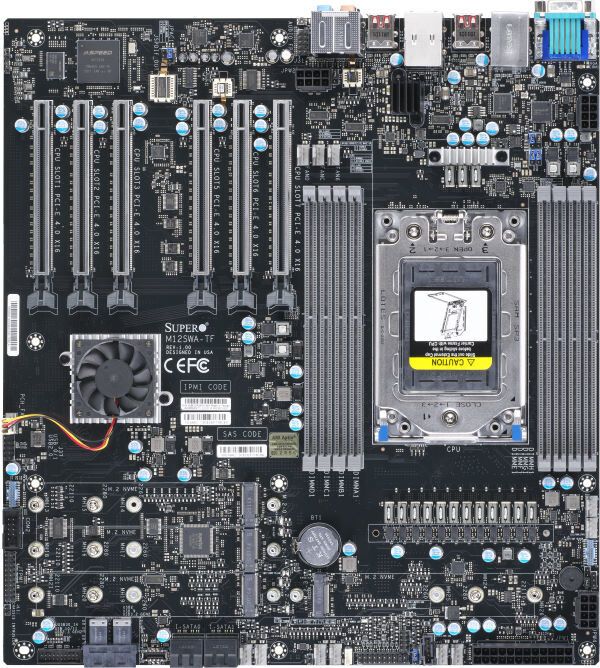

Supermicro M12SWA-TF E-ATX AMD Ryzen Threadripper PRO Motherboard
The Supermicro M12SWA-TF is an E-ATX (12" x 13") motherboard for one AMD Ryzen Threadripper PRO 5000WX/3000WX series processor on Socket sWRX8, with up to 64 cores and 280 W TDP. Eight DIMM slots accept ECC and non-ECC, buffered and unbuffered DDR4-3200 (UDIMM, RDIMM, LRDIMM, 3DS RDIMM), up to 2 TB with RDIMM or 256 GB with UDIMM. It offers six PCIe 4.0 x16 slots, four M.2 PCIe 4.0 x4 slots, two U.2 sockets and four SATA3 ports with RAID 0, 1, 5, 10. Connectivity includes a 10GBase-T port, a Gigabit port shared with IPMI, USB 3.2 Gen2x2 Type-C, 7.1-channel HD audio and an ASPEED AST2600 BMC with VGA.
Key features
- AMD Ryzen Threadripper PRO 5000WX/3000WX, Socket sWRX8, up to 64 cores, 280 W TDP
- 8 DIMM slots, DDR4-3200 ECC/non-ECC, up to 2 TB RDIMM / 256 GB UDIMM
- 6 x PCIe 4.0 x16 slots
- 4 x M.2 PCIe 4.0 x4 (2280, 22110) and 2 x U.2
- 4 x SATA3 with RAID 0, 1, 5, 10
- 1 x 10GBase-T and 1 x GbE (shared with IPMI)
- 1 x USB 3.2 Gen2x2 Type-C, 5 x USB 3.2 Gen2, 5 x USB 3.2 Gen1
- 7.1-channel HD audio (ALC4050H, ALC1220)
- ASPEED AST2600 BMC with VGA
Specifications
- Form factor: E-ATX (12" x 13", 30.48 x 33.02 cm)
- BIOS: AMI, 256 Mb
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-M12SWA-TF-B |
| Ean | 0672042441679 |
| Product title | Supermicro M12SWA-TF Socket sWRX8 Extended ATX |
| Long Product Name | Socket sWRX8, 8 x DDR4-SDRAM up to 2000GB, LAN, 2 x RJ-45, 4 x SATA III, 1 x M.2(M), AMI, Extended ATX |
| Product specifications | ProcessorProcessor manufacturer* AMD Processor socket* Socket sWRX8 Compatible processor series* AMD Ryzen Threadripper 1000 Series MemorySupported memory types* DDR4-SDRAM Number of memory slots* 8 Memory slots type DIMM Memory channels Octa-channel Memory voltage 1.2 V ECC сompatibility ECC & Non-ECC Maximum internal memory* 2 TB Supported memory module capacities 2GB, 4GB, 16GB, 32GB, 64GB, 128GB Unbuffered memory Yes Maximum RDIMM memory 2 TB Storage controllersSupported storage drive interfaces* M.2, SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2600 Internal I/OUSB 2.0 connectors* 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors* 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors* 1 Number of SATA III connectors* 4 Number of COM connectors 1 TPM connector Yes Rear panel I/O portsUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 3 Rear panel I/O portsUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity* 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity* 1 Ethernet LAN (RJ-45) ports* 2 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity* 1 NetworkEthernet LAN Yes Ethernet interface type 10 Gigabit Ethernet LAN controller Intel® I210-AT FeaturesAudio output channels* 7.1 channels PC health monitoring CPU, Fan, LED, Temperature Component for* Server Motherboard form factor* Extended ATX Motherboard chipset family* AMD Expansion slotsPCI Express x16 (Gen 4.x) slots 6 Number of M.2 (M) slots 1 BIOSBIOS type* AMI BIOS memory size 256 Mbit Operational conditionsStorage temperature (T-T) 0 - 50 °C Operating temperature (T-T) -5 - 55 °C Weight & dimensionsWidth 304.8 mm Depth 330.2 mm |
| Essential qualities |
|
| Processor manufacturer | AMD |
| Processor socket | Socket sWRX8 |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Maximum internal memory | 2 TB |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| BIOS type | AMI |
