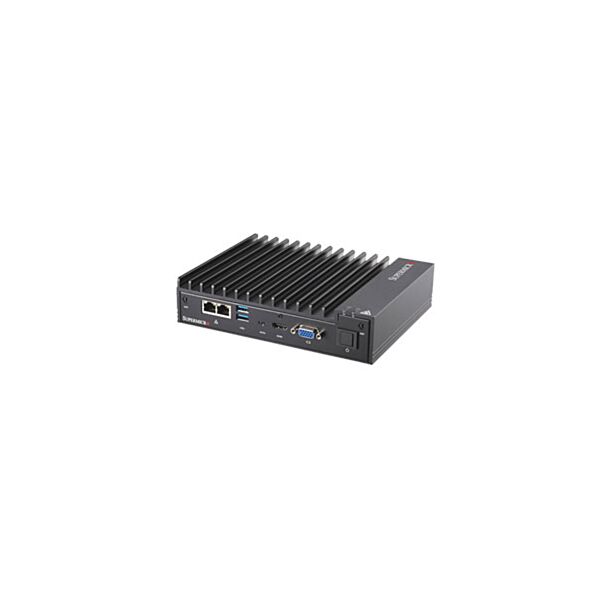

Supermicro SuperServer E100-9AP Intel SoC BGA 1296 Mini Tower Black
GTIN: 0672042279661
In stock
SKU
SUP-SYS-E100-9AP
Special Price €544.24 €446.10 Regular Price €591.57
Compact embedded IoT gateway with Intel Atom E3940 SoC, up to 8 GB DDR3L SO-DIMM, M.2 B-key and Mini PCIe, dual Gigabit LAN (Intel I210-AT), 4 COM and 12 V DC 40 W power.
Supermicro SuperServer E100-9AP IoT Gateway with Intel Atom E3940
The Supermicro SuperServer E100-9AP is an embedded Mini-ITX box based on the Intel Atom E3940 system-on-chip, suited to applications such as security appliances, video surveillance, digital signage and indoor kiosks. One 204-pin SO-DIMM slot takes up to 8 GB of DDR3L memory, and storage is provided by an M.2 2280 B-key slot for SATA or PCIe SSD, with a Mini PCIe slot for expansion. It has two Gigabit Ethernet ports (Intel I210-AT), USB 3.0 and USB 2.0 ports, VGA and four serial ports, and is powered by a 12 V DC 40 W adapter.
Key features
- Intel Atom E3940 SoC
- 1 x 204-pin SO-DIMM, up to 8 GB non-ECC DDR3L
- 1 x M.2 2280 B-key for SATA/PCIe SSD, 1 x Mini PCIe
- 2 x Gigabit Ethernet (Intel I210-AT)
- 2 x USB 3.0, 4 x USB 2.0, 1 x VGA, 4 x COM
- 12 V DC 40 W power
Specifications
- Dimensions: 195 x 151 x 44 mm
- Operating temperature: -20 to 60 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | SYS-E100-9AP |
| Ean | 0672042279661 |
| Chassis type | Mini Tower |
| Product title | Supermicro SuperServer E100-9AP Intel SoC BGA 1296 Mini Tower Black |
| Long Product Name | SuperServer E100-9AP - Intel Atom E3940, 1x 204-pin DDR3L SO-DIMM, 1x M.2 2280 B-Key f/ SATA / PCIe SSD, 1x Mini-PCIe, 12V DC 40W |
| Product specifications | ProcessorMotherboard chipset* Intel SoC Processor socket* BGA 1296 Processor family Intel Number of processors supported* 1 MemoryNumber of DIMM slots* 1 Supported memory types* DDR3L-SDRAM Supported DIMM module capacities 2GB, 4GB, 8GB Maximum internal memory 8 GB Maximum RDIMM memory 8 GB Supported RDIMM clock speeds 1333,1600,1866 MHz Memory form factor 204-pin SO-DIMM Memory voltage 1.35 V Non-ECC Yes StorageNumber of storage drives supported* 1 Supported storage drive interfaces M.2, PCI Express, Serial ATA NetworkEthernet LAN Yes Ethernet interface type Fast Ethernet, Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T LAN controller Intel® I210-AT Ports & interfacesUSB 2.0 ports quantity* 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports* 2 VGA (D-Sub) ports quantity 1 Ports & interfacesSerial ports quantity 4 Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 84714100 BIOSBIOS type EEPROM BIOS memory size 64 Mbit ACPI version 5.0 BIOS features Plug & Play, SMBIOS 2.7.1, UEFI DesignChassis type* Mini Tower Product colour Black LED indicators Activity, Power PowerPower supply* 40 W Operational conditionsOperating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 195 mm Depth 151 mm Height 44 mm Packaging dataBundled software SuperDoctor® 5
Watch Dog |
| Essential qualities |
|
| Number of storage drives supported | 1 |
| Power supply | 40 W |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1296 |
| Number of processors supported | 1 |
| Number of DIMM slots | 1 |
| Supported memory types | DDR3L-SDRAM |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
