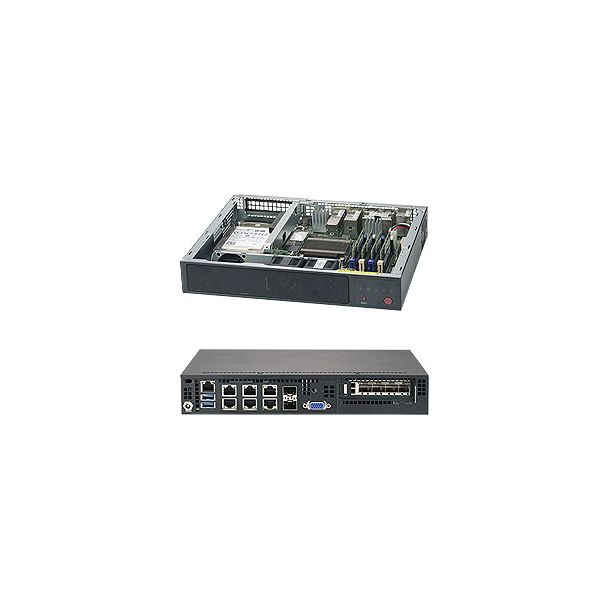

Supermicro SuperServer E300-9A-16CN8TP Intel SoC BGA 1310 Black
GTIN: 0672042373857
In stock
SKU
SUP-SYS-E300-9A-16CN8TP
Special Price €1,491.17 €1,222.27 Regular Price €1,620.83
Compact 1U embedded server with 16-core Intel Atom C3958 SoC (2 GHz), 4 DIMM DDR4 ECC, 2 x 2.5" bays, M.2, 4 x Gigabit + 4 x 10G LAN, IPMI and TPM 2.0.
Supermicro SuperServer E300-9A-16CN8TP Compact Server with Intel Atom C3958
The Supermicro SuperServer E300-9A-16CN8TP is a compact 1U-height embedded server for network and edge applications, based on the Intel Atom C3958 system-on-chip (16 cores, 2 GHz, 16 MB cache). Four DIMM slots take ECC or non-ECC DDR4 memory. It provides two 2.5" drive bays and an M.2 slot, a PCIe 3.0 x4 slot and a micro low-profile PCIe slot, with four Gigabit and four 10G Ethernet ports plus a dedicated IPMI LAN, VGA, two USB 3.0 ports and TPM 2.0.
Key features
- Intel Atom C3958 SoC: 16 cores, 2 GHz, 16 MB cache
- 4 DIMM slots, ECC/non-ECC DDR4
- 2 x 2.5" drive bays, 1 x M.2 (M-key)
- 1 x PCIe 3.0 x4, 1 x micro low-profile PCIe slot
- 4 x Gigabit Ethernet, 4 x 10G, dedicated IPMI LAN
- 1 x VGA, 2 x USB 3.0, SuperDOM
- TPM 2.0
- 2 fans
Specifications
- Dimensions: 254 x 43 x 226 mm
- Weight: 1.56 kg
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | SYS-E300-9A-16CN8TP |
| Ean | 0672042373857 |
| Product title | Supermicro SuperServer E300-9A-16CN8TP Intel SoC BGA 1310 Black |
| Long Product Name | Intel Atom C3958 2 GHz 16MB, 4 x DIMM/SO-DIMM, 4 x SATA-III 6Gbps, VGA, Super DOM, 2 x USB 3.0, 4 x Gigabit Ethernet, 4 x 10G, 254 x 43 x 226mm, 1.56kg |
| Product specifications | ProcessorBuilt-in processor* Yes Motherboard chipset* Intel SoC Processor socket* BGA 1310 Processor family Intel Atom® Processor frequency 2 GHz Number of processors supported* 1 Maximum cache 16 MB Maximum internal memory supported by processor 256 GB MemoryNumber of DIMM slots* 4 Supported memory types* DDR4-SDRAM Supported DIMM module capacities 4GB, 8GB, 16GB, 32GB, 64GB Maximum internal memory 64 GB Memory voltage 1.2 V ECC Yes Non-ECC Yes StorageNumber of storage drives supported* 2 Number of 2.5" bays 2 Storage drive sizes supported 2.5,M.2 Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, Serial ATA III GraphicsOn-board graphics card model Aspeed AST2400 NetworkEthernet LAN Yes Ethernet interface type 10 Gigabit Ethernet, Gigabit Ethernet Ethernet LAN data rates 10,100,1000,1200,2500,5000,10000 Mbit/s Copper ethernet cabling technology 10GBASE-T LAN controller Intel® I350 Ports & interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports* 9 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity 1 Expansion slotsPCI Express slots version 3.0 PCI Express x4 (Gen 3.x) slots 1 Expansion slotsMicro low profile PCI Express slots 1 Number of M.2 (M) slots 1 FeaturesTrusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0 Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 84714100 BIOSBIOS type UEFI AMI System Management BIOS (SMBIOS) version 2.7.1 BIOS features SMBIOS 2.7.1 DesignProduct colour Black LED indicators HDD On/off switch Yes Number of fans 2 fan(s) Fan diameter 4 cm Certification RoHS PowerThermal Design Power (TDP) 31 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 254 mm Depth 226 mm Height 43 mm Weight 1.56 kg Packaging dataPackage width 381 mm Package depth 142 mm Package height 276 mm Package weight 2.8 kg |
| Essential qualities |
|
| Number of storage drives supported | 2 |
| Built-in processor | Yes |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1310 |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Ethernet LAN (RJ-45) ports | 9 |
