Tangent Bundle of Element Tk, Mf, Kb & Bt panels (ELEBDL)

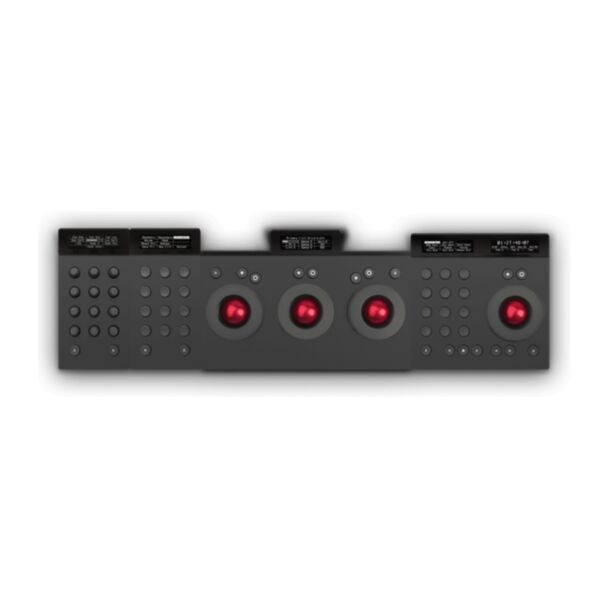

Tangent Element Bundle (Tk, Mf, Kb and Bt Panels)

The Tangent Element bundle combines all four panels of the Element range: Tk (trackerball), Mf (multifunction), Kb (knob) and Bt (button). Together they provide 4 programmable trackerballs, 12 programmable knobs, 24 programmable buttons, standard transport controls and 8 additional SHIFT/ALT buttons, for a full colour grading and editing control surface with a footprint of only 77 x 20 cm.

Each programmable control is soft-labelled on a high-contrast white OLED display, the trackerballs and knobs use long-life optical pickups, and the panels lock together magnetically to keep the layout aligned. The panels are USB powered and plug-and-play, and work with applications that support the Tangent Mapper, such as Adobe Premiere Pro, Adobe Lightroom Classic, Apple Final Cut Pro, Blackmagic DaVinci Resolve, Autodesk Flame, FilmLight Baselight, Assimilate SCRATCH, SGO Mistika, Pomfort Livegrade and many others.

Key features

• 4 programmable trackerballs (3 with third-axis ring on the Tk, 1 on the Mf usable as jog/shuttle)
• 12 programmable knobs with push-to-reset
• 24 programmable buttons
• Standard transport controls
• 8 additional buttons for SHIFT/ALT
• Ultra-slim, all-metal construction (solid aluminium, precision laser-cut case)
• Every programmable control soft-labelled on a high-contrast, high-resolution white OLED display
• Panels lock together magnetically
• USB plug-and-play (HID device, no drivers required)
• USB powered, no external power supply; a single USB cable per panel
• Low profile: 1.5 cm front height, 4.5 cm rear height (8.0 cm including display)

Notes

• Controls can only be programmed if the host application supports the Tangent Mapper

In the box

• Tangent Element Tk panel
• Tangent Element Mf panel
• Tangent Element Kb panel
• Tangent Element Bt panel

Specifications

• Footprint of the 4-panel set: 77 x 20 cm (30.3" x 7.9")
• Connection and power: USB, one cable per panel
