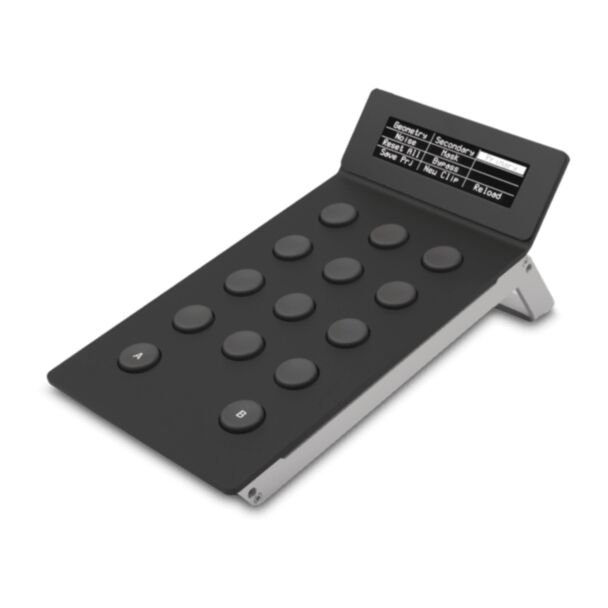

Tangent Element Bt panel (ELEBT)

Tangent Element Bt Panel

The Tangent Element Bt is the button panel of the Element range, with 12 full-size programmable buttons with positive tactile response. A display soft-labels every button, so when a function changes, its label changes too.

The Element range is a modular set of four compact control panels (Tk, Mf, Kb and Bt) with full-size, ergonomically laid out controls: you can choose only the panels you need, add more than one of the same type, and arrange the layout to suit handedness, desk space and other equipment. The panels are USB powered and plug-and-play, and work with colour grading and editing applications that support the Tangent Mapper, such as Adobe Premiere Pro, Adobe Lightroom Classic, Apple Final Cut Pro, Blackmagic DaVinci Resolve, Autodesk Flame, FilmLight Baselight, Assimilate SCRATCH, SGO Mistika, Pomfort Livegrade and many others.

Key features

• 12 programmable buttons
• 2 additional buttons for SHIFT/ALT
• 1 display to soft-label all programmable controls
• Full-size tactile buttons
• Ultra-slim, all-metal construction (solid aluminium, precision laser-cut case)
• Every programmable control soft-labelled on a high-contrast, high-resolution white OLED display
• Panels lock together magnetically
• USB plug-and-play (HID device, no drivers required)
• USB powered, no external power supply; a single USB cable per panel
• Low profile: 1.5 cm front height, 4.5 cm rear height (8.0 cm including display)

Notes

• Controls can only be programmed if the host application supports the Tangent Mapper

Specifications

• Desk footprint: 11 x 20 cm (4.3" x 7.9")
• Connection and power: USB
