Tangent Element Tk panel (ELETK)

Tangent Element Tk Panel

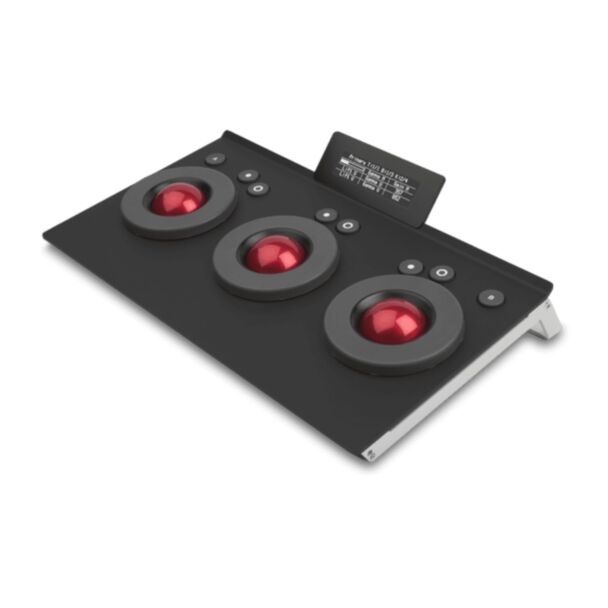

The Tangent Element Tk is the trackerball panel of the Element range, with three programmable trackerballs, each with a third-axis ring. The trackerballs have high-resolution, long-life optical laser pickups, 46 mm balls held by retaining rings that can be removed for cleaning, and individual reset buttons for ball and ring.

The Element range is a modular set of four compact control panels (Tk, Mf, Kb and Bt) with full-size, ergonomically laid out controls: you can choose only the panels you need, add more than one of the same type, and arrange the layout to suit handedness, desk space and other equipment. The panels are USB powered and plug-and-play, and work with colour grading and editing applications that support the Tangent Mapper, such as Adobe Premiere Pro, Adobe Lightroom Classic, Apple Final Cut Pro, Blackmagic DaVinci Resolve, Autodesk Flame, FilmLight Baselight, Assimilate SCRATCH, SGO Mistika, Pomfort Livegrade and many others.

Key features

• 3 programmable trackerballs with third-axis ring
• Individual reset buttons for ball and ring
• 2 additional buttons for SHIFT/ALT
• 1 display to soft-label all programmable controls
• 46 mm balls with optical laser pickup, removable for cleaning
• Ultra-slim, all-metal construction (solid aluminium, precision laser-cut case)
• Every programmable control soft-labelled on a high-contrast, high-resolution white OLED display
• Panels lock together magnetically
• USB plug-and-play (HID device, no drivers required)
• USB powered, no external power supply; a single USB cable per panel
• Low profile: 1.5 cm front height, 4.5 cm rear height (8.0 cm including display)

Notes

• Controls can only be programmed if the host application supports the Tangent Mapper

Specifications

• Desk footprint: 33 x 20 cm (12.9" x 7.9")
• Connection and power: USB
