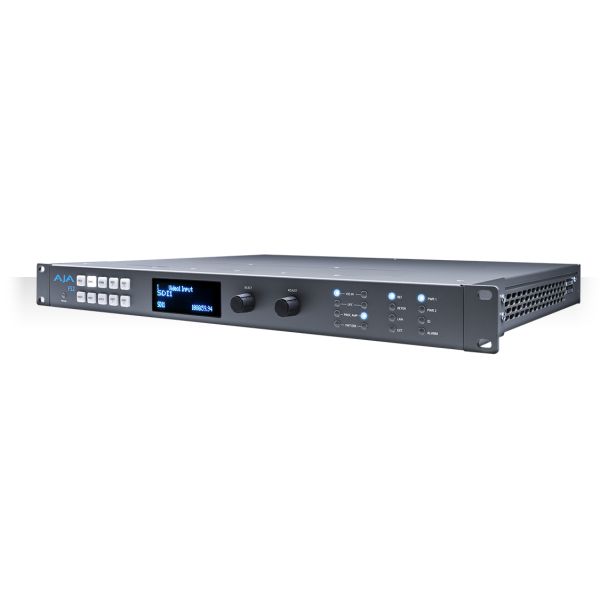

AJA FS2 video signal converter Active video converter 2048 x 1080, -
AJA FS2, Active video converter, Grey, 2048 x 1080, -, 525i, 625i, 720p, 1080i, 1080p, 100 - 240 V, 50/60 Hz
With dual-channel conversion and frame synchronizing in a slim 1RU space, FS2 can do the work of two separate devices or combine both processors together for maximum flexibility.
Dual video and audio processors
Offering huge flexibility and the power to adapt to meet the needs of rapidly changing environments, FS2 offers unprecedented conversion and frame synchronization power in a 1RU space.
Capable of simultaneously working with two independent streams of HD/SD 10-bit broadcast quality video and two independent groups of multi-channel analog or digital audio, each FS2 video channel supports virtually any input or output: analog component or composite, 3G-SDI, Dual Link (1.485 Gb), fiber and HDMI I/O. A fiber I/O option allows fiber cable runs of up to 10 kilometers to be connected directly to the FS2 without the need for separate fiber to SDI conversion. Each video processing channel can be individually cropped and resized using AJA’s image scaling technology for the best possible quality when incorporating nonstandard image sizes.
FS2 can be used as two separate frame synchronizers/format converters or the two channels can be linked with the internal FS2 keyer to do the work of three or more devices - for example, HD sidebar keying where both the video and background graphics are up-converted and combined.
AJA hardware conversion technology
AJA's powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features include:
- SD/HD up/down-conversion
- SD/SD aspect ratio conversion
- HD/HD cross-conversion (720p/1080i)
- Up/down/cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
- HD cross-conversion with simultaneous down-converted SDI output
FS2 can up or down-convert between HD and SD and cross-convert between HD formats. Additionally, FS2 has full input and output signal routing, allowing any I/O port to be assigned to either processing channel.
Digital and Analog I/O
Capable of simultaneously working with two independent streams of 3G/HD/SD 10-bit broadcast-quality video and two independent groups of 16-channel AES audio, each FS2 video channel supports virtually any input or output: analog component or composite, 3G-SDI, Dual Link (1.485 Gb), Fiber and HDMI I/O.
For audio, FS2 has two audio processors, each supporting 16-Channel AES/EBU digital audio, 16-Channel embedded audio, and 8-Channel balanced analog audio with a variety of controls for maximum flexibility. The output of each processor can be embedded in its respective video processor output (SDI, fiber, or HDMI), or sent to the AES or balanced outputs. For 3G and Dual Link inputs, the audio processors can have access to all 32 channels.
Remote configuration and control
FS units are network ready and support SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.
To integrate smoothly with the existing automation of a facility, FS2 can also receive external GPI commands to trigger a variety of functions, from freezing an input source to switching between saved presets.
Fiber I/O option
FS2's Fiber I/O option allows fiber cable runs of up to 10 kilometers to be connected directly to the FS2 without the need for separate fiber to SDI conversion.
Fiber connector supported:
- Single-channel LC connector modules
- Single-channel SC connector modules
- Dual-channel LC connector modules
Architecture
FS2 is designed to meet the demands of broadcast engineering and live event production while providing incredible flexibility. Select any of the various inputs for conversion and route to all available outputs simultaneously.
Dual, redundant power supplies ensure uninterrupted power even in the event of a power supply failure.
CWDM Fiber Options
The optional fiber inputs and outputs let you to choose from multiple wavelength CWDM SFPs, allowing advanced multiplexing of signals over a single fiber connection.
Possible CWDM options:
- Dual TX 1271/1291
- Dual TX 1311/1331
- Dual TX 1351/1371
- Dual TX 1391/1411
- Dual TX 1431/1451
- Dual TX 1471/1491
- Dual TX 1511/1531
- Dual TX 1551/1571
- Dual TX 1591/1611
Closed caption conversion
FS2 supports Closed Captioning and the conversion of Closed Captioning between HD and SD formats - including full conversion between CEA-608 and CEA-708 caption standards.
Active Format Description
Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.
Product Condition | New |
---|---|
Manufacturer | Aja Video Systems |
manufacturer code | FS2-R1 |
Ean | 0892448000946 |
Taric Code | 8517620050 |
Modified on | 03-04-2015 |
Product title | AJA FS2 video signal converter Active video converter 2048 x 1080, - |
Long Product Name | Dual-channel converter and frame synchronizer |
Product specifications | FeaturesConverter type* Active video converter Product colour Grey VideoMaximum video resolution* 2048 x 1080, - Supported video modes 525i, 625i, 720p, 1080i, 1080p PowerInput voltage 100 - 240 V Input frequency 50/60 Hz Power consumption (typical) 55 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 10 - 90% Operating altitude 0 - 3000 m Weight & dimensionsWidth 438.1 mm Depth 368.3 mm Height 44.5 mm Weight 3.6 kg |
