AJA HA5-4K video signal converter Active video converter 4096 x 2160, -

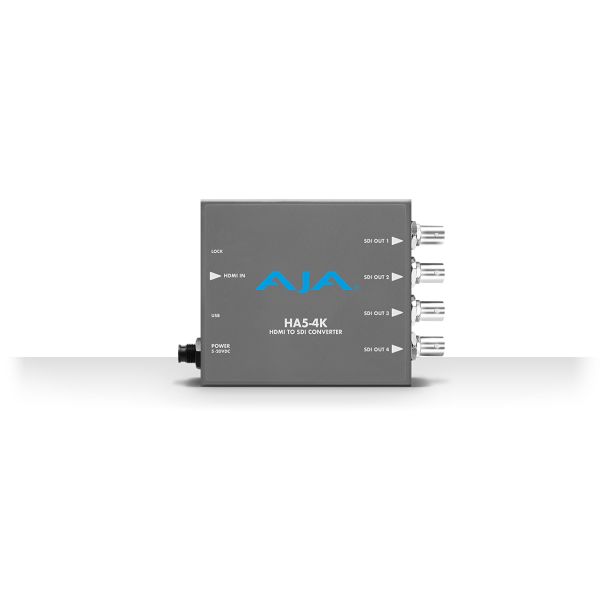

AJA’s HA5-4K Mini-Converter provides high-quality conversion of HDMI to 4K SDI with 4 x 3G SDI outputs. HA5-4K allows conversion of HDMI video from DSLR’s, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K SDI for use in professional workflows. HA5-4K is also capable of analyzing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.

Connectivity
An increasing number of 4K products utilize an HDMI output connection, which allows a full 4K signal to be passed over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer devices. HA5-4K is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.

HDR

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

HA5-4K provides support for analyzing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.

4K and UltraHD

HA5-4K supports conversion of full resolution 4K (4096x2160) as well as UltraHD (3840x2160) from HDMI to 3G-SDI at frame rates up to 50/60 fps, providing a great solution for cinematic 4K productions as well as UltraHD projects.

HD Support

Not every job is a 4K job. When you're not working in 4K, HA5-4K can still be a useful tool for converting HD-HDMI to HD-SDI. HA5-4K will automatically sense an incoming HD resolution HDMI signal and convert this to a single 3G-SDI output, much like AJA's HA5-Plus Mini-Converter.

Audio

Up to 2-channels of embedded audio in the incoming HDMI signal are carried through seamlessly into the SDI output, ensuring your audio is always in sync and carried flawlessly along with the SDI signal for use anywhere in your workflow.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
