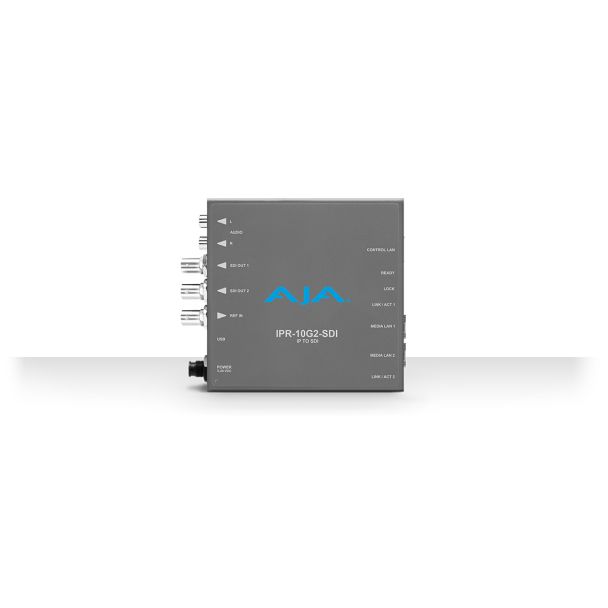

AJA IPR-10G2-SDI video signal converter Active video converter 1920 x 1080, -
GTIN: 0812321031706
AJA IPR-10G2-SDI, Active video converter, Grey, 1920 x 1080, -, 525i, 625i, 720p, 1080i, 1080p, BNC, 20 V
IPR-10G2-SDI provides monitoring of HD SMPTE ST 2110 signals across 10 GigE to two 3G-SDI ouputs.
It receives SMPTE 2110 over 10 GigE connectivity, formats the data for output over 3G-SDI, and the associated audio from the video stream is extracted, synchronized, and embedded into the 3G-SDI signal and also output on an analog RCA interface.
The IPR-10G2-SDI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy protection for critical distribution and monitoring applications.
The IPR-10G2-SDI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.
IPR-10G2-SDI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for display on SDI devices. Providing two SFP+ cases for protection with "hitless switching". Its rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.
Monitor ST 2110 Video and Audio from anywhere on the Network.
The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications including source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs with mirrored source video, you can drive a display and connect to 3G-SDI simultaneously.
With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide SDI monitoring at the destination while feeding your video and audio further into a 3G-SDI chain.
The AJA IPR-10G2-SDI receives SMPTE ST 2110 IP video and audio, then formats the data for output over 3G-SDI.
The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI interface as well as output on an analog RCA interface.
Workflow
IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP compatible devices. Combine your IPR-10G2-SDI units with AJA KONA IP (I/O card for use in desktop workstations) to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.
User Control
IPR-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates.
- 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
- Web and REST clients supported
- 1x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Product Condition | New |
---|---|
Manufacturer | Aja Video Systems |
manufacturer code | IPR-10G2-SDI-R0 |
Ean | 0812321031706 |
Taric Code | 8517620050 |
Modified on | 11-02-2019 |
Product title | AJA IPR-10G2-SDI video signal converter Active video converter 1920 x 1080, - |
Long Product Name | Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI |
Product specifications | FeaturesConverter type* Active video converter Product colour Grey VideoMaximum video resolution* 1920 x 1080, - Supported video modes 525i, 625i, 720p, 1080i, 1080p Ports & interfacesHost interface* BNC PowerInput voltage 20 V Power consumption (typical) 13 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 10 - 90% Operating altitude 0 - 3000 m Weight & dimensionsWidth 128.8 mm Depth 23.9 mm Height 128.5 mm Weight 300 g |
