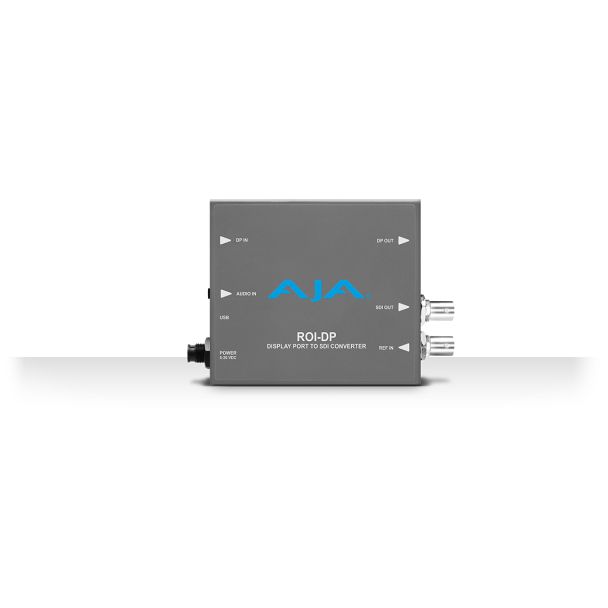

AJA ROI-DP Active video converter 1920 x 1080, -
AJA ROI-DP, Active video converter, Grey, 1920 x 1080, -, 525i, 625i, 720p, 1080i, 1080p, 100 - 240 V, 50/60 Hz
AJA’s ROI-DP Mini-Converter allows exceptionally high quality conversion of computer DisplayPort outputs to baseband video over SDI at an affordable price and a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.
Region of Interest
Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.
Connecting a ROI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the incoming computer signal and have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.
Conversion
Take full control of aspect ratio conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.
The output will be mirrored to both the 3G-SDI and HDMI outputs for simultaneous delivery to multiple displays or continuing signal paths.
Connectivity
ROI utilizes a direct loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to SDI. The reference input ensures the SDI signal out of ROI is locked for use throughout a production or facility.
Audio
ROI accepts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from a DisplayPort input. The audio source and routing can be selected in the Mini-Config software and is embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.
USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Product Condition | New |
---|---|
Manufacturer | Aja Video Systems |
manufacturer code | ROI-DP-R0 |
Ean | 0892448000168 |
Taric Code | 8517620050 |
Modified on | 16-12-2016 |
Product title | AJA ROI-DP Active video converter 1920 x 1080, - |
Long Product Name | DisplayPort to SDI with ROI scaling |
Product specifications | FeaturesConverter type* Active video converter Product colour Grey VideoMaximum video resolution* 1920 x 1080, - Supported video modes 525i, 625i, 720p, 1080i, 1080p PowerInput voltage 100 - 240 V Input frequency 50/60 Hz Operational conditionsOperating temperature (T-T) 0 - 40 °C Operational conditionsStorage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 10 - 90% Operating altitude 0 - 3000 m Weight & dimensionsWidth 146.4 mm Depth 102.1 mm Height 22.9 mm Weight 300 g |
