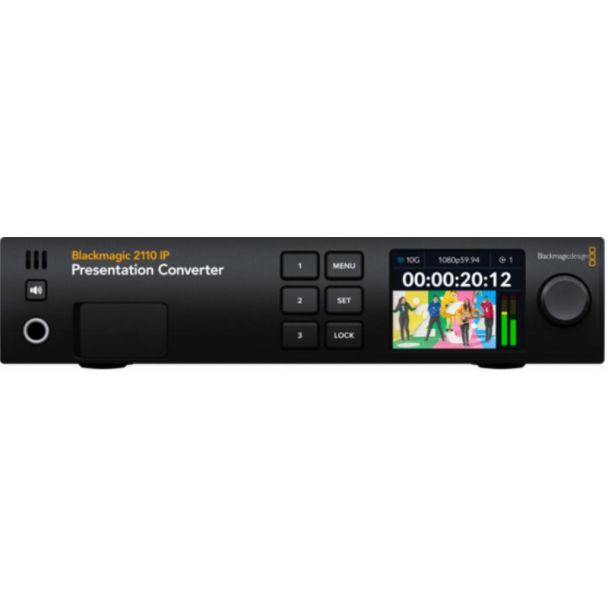

Blackmagic Design 2110 IP Presentation Converter Active video converter
Blackmagic Design 2110 IP Presentation Converter, Active video converter, Black, Windows 10, Windows 11, 1280 x 720,1920 x 1080,3840 x 2160, 720p, 1080i, 1080p, 2160p, 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@23.98PsF, 1920x1080@23.98fps,...
Blackmagic 2110 IP Presentation Converter is designed for speaker podiums with connections for laptops, projectors and microphones all in the one converter. Computers can connect via USB-C for both video and power and there is an HDMI output for projectors that can be switched to the video input or the 2110 IP return feed. For audio, there are XLR microphone inputs and an XLR audio out for PA speakers. The RJ-45 10G Ethernet video connection can power the whole converter, even when charging a USB computer!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVNVIPH/PRESC |
| Ean | 9338716009040 |
| Modified on | 20-04-2024 |
| Product title | Blackmagic Design 2110 IP Presentation Converter Active video converter |
| Long Product Name | USB‑C, HDMI 2.0, SDI, XLR, 1 x 6.35mm, RJ‑45 |
| Product specifications | FeaturesConverter type* Active video converter Internal No On Screen Display (OSD) Yes Product colour Black Windows operating systems supported Windows 10, Windows 11 Mac operating systems supported Yes VideoVideo resolutions 1280 x 720,1920 x 1080,3840 x 2160 Supported video modes 720p, 1080i, 1080p, 2160p Resolution at capture speed 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@23.98PsF, 1920x1080@23.98fps, 1920x1080@24PsF, 1920x1080@24fps, 1920x1080@25PsF, 1920x1080@25fps, 1920x1080@29.97PsF, 1920x1080@29.97fps, 1920x1080@30PsF, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 3840x2160@30fps, 3840x2160@60fps Analog signal format system NTSC, PAL Supported chroma subsampling 4:2:2, 4:4:4, 4:2:0 Colour depth 12 bit Colour space supported RGB, YUV Serial Digital Interface (SDI) standard SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082 AudioAudio sampling rate 48 kHz Ports & interfacesHost interface* USB Type-C Output interface* HDMI/BNC Connection to PC Yes Ports & interfacesVideo in 1 x HDMI, 2 x USB-C Video out 1 x HDMI, 1 x BNC Audio output 2 x XLR, 1 x 6.35 mm BNC video output Yes BNC output ports 1 PowerInput voltage 100 - 240 V Input frequency 50/60 Hz Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 210 mm Depth 228 mm Height 44 mm Weight 1.29 kg Logistics dataCountry of origin Singapore |
