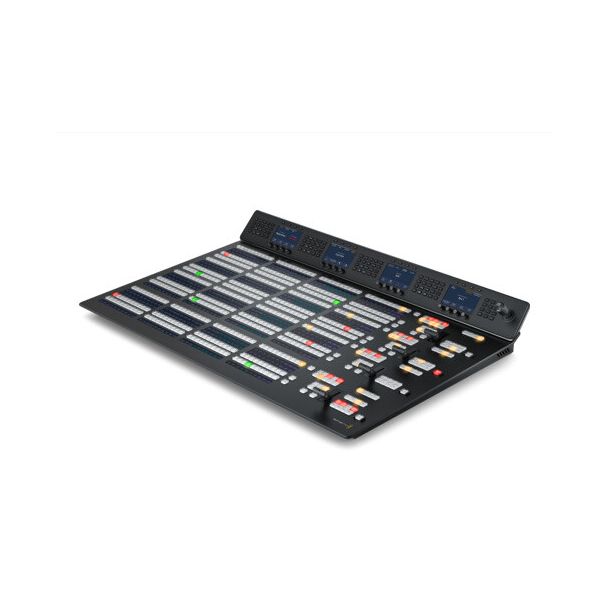

Blackmagic Design ATEM 4 M/E Advanced Panel 40

The large 4 M/E model is ideal for controlling the ATEM Constellation switcher. It features four M/E banks with 40-button buses and four independent system LCD displays. Additionally, there’s space for up to 24 LCDs to display the bus button labels.

Connections

• Ethernet: 4 x BaseT 10/100/1000 with loop-out to connect additional control panels or computers
• Firmware Updates: 1 x USB-C port

Specifications

• Effect Banks: 4
• Direct Crosspoints: 40
• Additional Crosspoints: 80
• Crosspoint Buttons: Tri-color LED
• Crosspoint Labels: 10-line LCD display (24 characters per line)
• On Air Indicators: 20
• Power Indicators: None
• DSK Transition Selectors: 4 x (Auto, Cut, Tie/Preview)
• Transition Preview: 4
• Transition Duration: Configurable via the main menu
• Menu LCD Displays: 4
• Menu Management: 4 sets of 20 buttons
• Macro Buttons: 4 sets of 40
• Transport Buttons: 24
• Destination Buses: 4
• Source Selection Buses: 4
• Transition Levers: 4
• 3-Axis Joystick: 1
• Numeric Keypad: 1

Software

• Application: ATEM Software Control
• Operating Systems:
  • Mac: macOS 14.0 Sonoma, macOS 15.0 Sequoia, or later
  • Windows: Windows 10 and 11

Power Requirements

• Input Voltage: Dual internal power supplies, 100–240V AC
• Redundant Power Supply: Yes
• Power Consumption: 250W

Environmental Specifications

• Operating Temperature: 0° to 40°C
• Storage Temperature: –20° to 60°C
• Relative Humidity: Up to 95%

Package Includes

• ATEM 4 M/E Advanced Panel 40

Warranty

• One-year limited warranty provided by the manufacturer.
