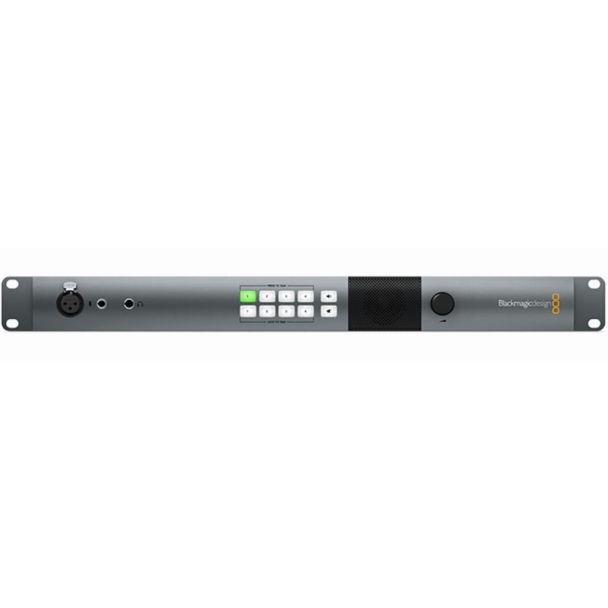

Blackmagic Design ATEM Studio Converter Active video converter 4096 x 2160 pixels
GTIN: 9338716001983
In stock
SKU
BMD-SWRCONVRCK2
Special Price €2,190.51 €1,795.50 Regular Price €2,433.90
10 bit SD/HD SDI, Optical Fiber, USB 2.0 type mini-B, 2160p24, 110-240V AC/12-31V DC
ATEM Studio Converter is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback! Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | SWRCONVRCK2 |
| Ean | 9338716001983 |
| Modified on | 18-04-2024 |
| Warranty | 3 Year Limited Manufacturer's Warranty |
| Product title | Blackmagic Design ATEM Studio Converter Active video converter 4096 x 2160 pixels |
| Long Product Name | 10 bit SD/HD SDI, Optical Fiber, USB 2.0 type mini-B, 2160p24, 110-240V AC/12-31V DC |
| Product specifications | FeaturesConverter type* Active video converter Internal Yes Product colour Grey VideoMaximum video resolution* 4096 x 2160 pixels Supported video modes 1080i, 1080p, 2160p, 720p Analog signal format system NTSC, PAL Colour depth 10 bit Serial Digital Interface (SDI) standard SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M SDI auto-switching Yes AudioAudio sampling rate 48 kHz Ports & interfacesHost interface* SDI Output interface* SDI Video in SDI, Optical Fiber Ports & interfacesVideo out SDI, Optical Fiber Audio output XLR, RCA, AES/EBU, Optical Fiber PowerInput voltage 110-240 AC/12-31 DC Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 482 mm Depth 158 mm Height 44 mm Weight 1.81 kg Packaging dataQuantity 1 |
| Essential qualities |
|
| Converter type | Active video converter |
| Maximum video resolution | 4096 x 2160 pixels |
| Host interface | SDI |
| Output interface | SDI |
