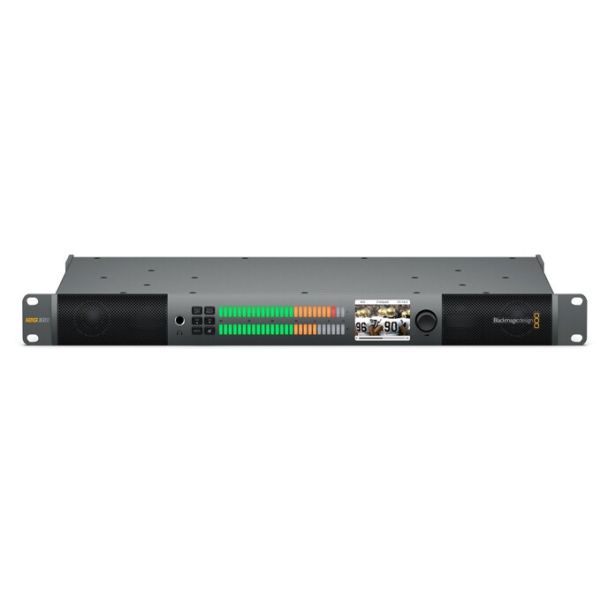

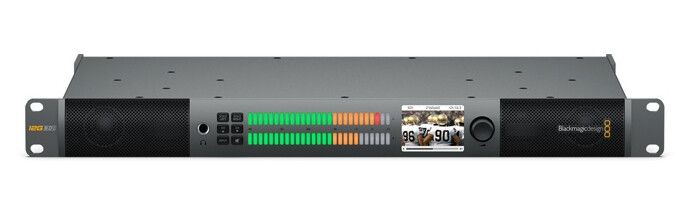

Blackmagic Design Audio Monitor 12G 1U Grey
GTIN: 9338716005967
In stock
SKU
BMD-HDL-AUDMON1RU12G
Special Price €1,248.98 €1,023.75 Regular Price €1,372.50
Blackmagic Design Audio Monitor 12G, 525i, 625i, 720p, 1080i, 1080p, 2160p, 60 fps, LCD, 5.59 cm (2.2"), 320 x 240 pixels, 6.5mm
Blackmagic Audio Monitor 12G
Broadcast quality analog, AES/EBU and SDI audio monitoring with advanced 12G‑SDI Ultra HD technology!
Blackmagic Audio Monitor 12G provides the finest quality audio monitoring in an incredibly small one rack unit size! Featuring a dual subwoofer design with extra wide range speakers for amazing audio, all backed by a super powerful class D amplifiers. This precision audio and video monitoring solution includes an advanced 12G‑SDI input, as well as balanced XLR analog audio, balanced AES/EBU digital audio and consumer level HiFi audio inputs. The elegant front panel has bright multi colored audio level meters and a built in LCD for monitoring video sources, plus you get an HDMI 2.0 output for monitoring Ultra HD on big screen televisions!
Monitor Anywhere
Great audio wherever you work
It’s never been easier to put the highest quality audio and video monitoring everywhere you need it. Install Blackmagic Audio Monitor 12G in broadcast racks audio on decks, video servers and live transmissions. At the push of a button you can switch between stereo pairs of the SDI input, great for monitoring alternative language tracks. The compact size is perfect for portable flyaway kits and broadcast trucks where space is tight, or in edit and audio post production facilities where precise audio quality is essential!
Small Size, Big Sound!
Crystal clear audio with a dual subwoofer design
The Blackmagic Audio Monitor 12G has been designed using the latest advanced audio analysis technology to create a wide and smooth frequency response curve with crisp highs and powerful deep bass. You get great sounding music, extremely clear voice tracks and all the detail of effects tracks! Blackmagic Audio Monitor 12G is powerful and loud enough to hear your audio in noisy environments, such as broadcast equipment rooms that have a lot of cooling fan noise.
Precision Metering
Know your audio levels at all times
The two big bright audio level meters on the front panel feature multi colored RGB LEDs under each segment. You can select between VU or PPM or Loudness scales with a choice of EBU or BBC meters. With lots of meter segments you can monitor a very wide dynamic range, from -45 to +3 decibels, -12 to +12, or 0 to 7, depending on the scale you choose. In addition you can meter Loudness using standard Loudness, K‑weighted, relative to Full Scale (LKFS) to normalize of levels for delivery to broadcast TV and video. The bright audio level meters are always clear enough to read, no matter if you are working in bright or dark environments!
Machined Metal Design
Milled from solid aluminum for sound free of vibrations!

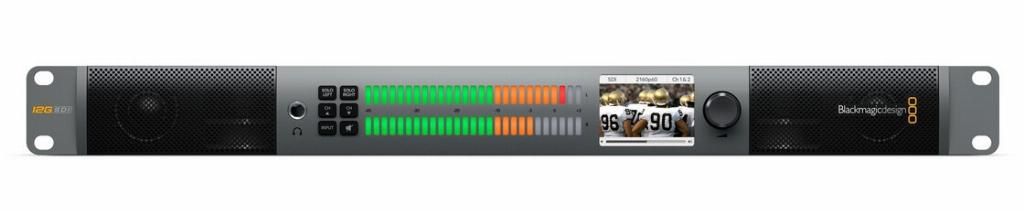

The machined metal design is attractive as well as extremely strong, which means you get a robust chassis that's vital for better quality sound without rattles and vibrations. The elegant front panel features audio level meters, LCD video monitor and a reliable contact‑less volume control, so you never get deterioration and crackling in the audio when adjusted. To select audio pairs, left and right solo, mute and input, there is a built in illuminated keypad and for private monitoring there is a built in headphone socket.
Advanced 12G‑SDI
Blackmagic Audio Monitor 12G supports all common SD, HD and Ultra HD video resolutions. The 12G‑SDI input and HDMI 2.0 output also support high resolution Ultra HD monitoring. The advanced technology of 12G‑SDI is 48 times faster than standard HD‑SDI so you can work at resolutions and frame rates as high as 2160p60, all over a single cable! You can connect to Ultra HD TVs and projectors with HDMI 4K and you can monitor any of the 16 audio channels on the 12G‑SDI input.
Both Audio and Video Connections
Blackmagic Audio Monitor 12G has all the audio and video connections you need to make it the perfect monitoring solution in any environment. With balanced analog XLR audio, balanced AES/EBU audio and consumer level HiFi audio inputs it’s easy to connect any audio source. You can select between inputs quickly using the input button situated on the front panel. The 12G‑SDI video input and HDMI 2.0 video output both support embedded audio and let you connect to the latest high resolution video technology.
Use a Big Screen TV for Monitoring!
When you're working with SDI video input you can use the Blackmagic Audio Monitor 12G to convert from SDI to HDMI for monitoring with big screen televisions or video projectors. Blackmagic Audio Monitor 12G automatically switches between SD, HD and Ultra HD formats. You can monitor in high resolution Ultra HD using the HDMI output with only a single HDMI cable!
Broadcast quality analog, AES/EBU and SDI audio monitoring with advanced 12G‑SDI Ultra HD technology!
Blackmagic Audio Monitor 12G provides the finest quality audio monitoring in an incredibly small one rack unit size! Featuring a dual subwoofer design with extra wide range speakers for amazing audio, all backed by a super powerful class D amplifiers. This precision audio and video monitoring solution includes an advanced 12G‑SDI input, as well as balanced XLR analog audio, balanced AES/EBU digital audio and consumer level HiFi audio inputs. The elegant front panel has bright multi colored audio level meters and a built in LCD for monitoring video sources, plus you get an HDMI 2.0 output for monitoring Ultra HD on big screen televisions!
Monitor Anywhere
Great audio wherever you work
It’s never been easier to put the highest quality audio and video monitoring everywhere you need it. Install Blackmagic Audio Monitor 12G in broadcast racks audio on decks, video servers and live transmissions. At the push of a button you can switch between stereo pairs of the SDI input, great for monitoring alternative language tracks. The compact size is perfect for portable flyaway kits and broadcast trucks where space is tight, or in edit and audio post production facilities where precise audio quality is essential!
Small Size, Big Sound!
Crystal clear audio with a dual subwoofer design
The Blackmagic Audio Monitor 12G has been designed using the latest advanced audio analysis technology to create a wide and smooth frequency response curve with crisp highs and powerful deep bass. You get great sounding music, extremely clear voice tracks and all the detail of effects tracks! Blackmagic Audio Monitor 12G is powerful and loud enough to hear your audio in noisy environments, such as broadcast equipment rooms that have a lot of cooling fan noise.
Precision Metering
Know your audio levels at all times
The two big bright audio level meters on the front panel feature multi colored RGB LEDs under each segment. You can select between VU or PPM or Loudness scales with a choice of EBU or BBC meters. With lots of meter segments you can monitor a very wide dynamic range, from -45 to +3 decibels, -12 to +12, or 0 to 7, depending on the scale you choose. In addition you can meter Loudness using standard Loudness, K‑weighted, relative to Full Scale (LKFS) to normalize of levels for delivery to broadcast TV and video. The bright audio level meters are always clear enough to read, no matter if you are working in bright or dark environments!
Machined Metal Design
Milled from solid aluminum for sound free of vibrations!
The machined metal design is attractive as well as extremely strong, which means you get a robust chassis that's vital for better quality sound without rattles and vibrations. The elegant front panel features audio level meters, LCD video monitor and a reliable contact‑less volume control, so you never get deterioration and crackling in the audio when adjusted. To select audio pairs, left and right solo, mute and input, there is a built in illuminated keypad and for private monitoring there is a built in headphone socket.
Advanced 12G‑SDI
Blackmagic Audio Monitor 12G supports all common SD, HD and Ultra HD video resolutions. The 12G‑SDI input and HDMI 2.0 output also support high resolution Ultra HD monitoring. The advanced technology of 12G‑SDI is 48 times faster than standard HD‑SDI so you can work at resolutions and frame rates as high as 2160p60, all over a single cable! You can connect to Ultra HD TVs and projectors with HDMI 4K and you can monitor any of the 16 audio channels on the 12G‑SDI input.
Both Audio and Video Connections
Blackmagic Audio Monitor 12G has all the audio and video connections you need to make it the perfect monitoring solution in any environment. With balanced analog XLR audio, balanced AES/EBU audio and consumer level HiFi audio inputs it’s easy to connect any audio source. You can select between inputs quickly using the input button situated on the front panel. The 12G‑SDI video input and HDMI 2.0 video output both support embedded audio and let you connect to the latest high resolution video technology.
Use a Big Screen TV for Monitoring!
When you're working with SDI video input you can use the Blackmagic Audio Monitor 12G to convert from SDI to HDMI for monitoring with big screen televisions or video projectors. Blackmagic Audio Monitor 12G automatically switches between SD, HD and Ultra HD formats. You can monitor in high resolution Ultra HD using the HDMI output with only a single HDMI cable!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | HDL-AUDMON1RU12G |
| Ean | 9338716005967 |
| Modified on | 20-02-2019 |
| Warranty | 12 Month Limited Manufacturer's Warranty |
| Product title | Blackmagic Design Audio Monitor 12G 1U Grey |
| Long Product Name | BNC, HDMI, XLR, 6.5mm, RCA, 2160p60, 96 kHz, 24 bit |
| Product specifications | VideoSupported video modes 525i, 625i, 720p, 1080i, 1080p, 2160p Maximum frame rate 60 fps LoudspeakersBuilt-in speaker(s)* Yes DisplayBuilt-in display* Yes Display type LCD Display diagonal 5.59 cm (2.2") Display resolution 320 x 240 pixels Ports & interfacesHDMI ports quantity 1 Audio output 6.5mm Audio (L/R) in 1 BNC input ports 1 BNC output ports 1 XLR in Yes PowerAC input voltage 100 - 240 V Power consumption (max) 55 W DesignRack mounting* Yes Form factor 1U Product colour Grey Housing material Aluminium Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 482 mm Depth 245 mm Height 44 mm Weight 2.6 kg |
