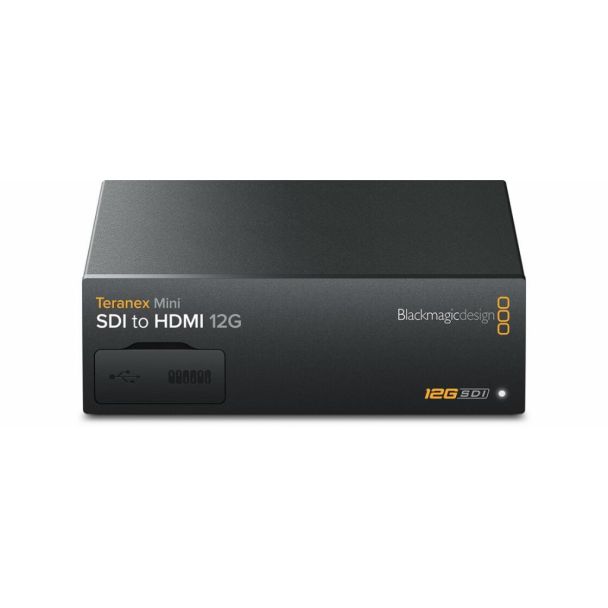

Blackmagic Design BMD-CONVNTRM/AB/HSDI Active video converter
GTIN: 9338716003253
In stock
SKU
BMD-CONVNTRM/AB/HSDI
Special Price €515.76 €422.75 Regular Price €579.50
1 x 12G-SDI SD/HD/2K/4K auto switching, 1 x 12G-SDI loop output, 1 x HDMI 2.0 type A connector with support for 2160p60, 70MB, 1.5G, 3G, 6G and 12G, 8 channels
Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVNTRM/AB/HSDI |
| Ean | 9338716003253 |
| Modified on | 27-06-2019 |
| Product title | Blackmagic Design BMD-CONVNTRM/AB/HSDI Active video converter |
| Long Product Name | 1 x 12G-SDI SD/HD/2K/4K auto switching, 1 x 12G-SDI loop output, 1 x HDMI 2.0 type A connector with support for 2160p60, 70MB, 1.5G, 3G, 6G and 12G, 8 channels |
| Product specifications | FeaturesConverter type* Active video converter Internal No Reclocking Yes Product colour Black Windows operating systems supported Windows 10 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur VideoSupported video modes 720p, 1080i, 1080p, 2560p, 3840p, 7680p Analog signal format system NTSC, SECAM Supported chroma subsampling 4:2:2, 4:4:4 Colour space supported RGB, YUV Ports & interfacesHost interface* SDI (BNC) Output interface* SDI/HDMI Connection to PC Yes Connector type USB, RJ-45 BNC video output Yes BNC output ports 1 PowerExternal power adapter Yes PowerUSB powered Yes Input voltage 100 - 240 V Operating voltage 48 V Power consumption (typical) 16 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 140 mm Depth 170 mm Height 44 mm Weight 580 g Packaging dataManual Yes Quantity 1 Other featuresSupported resolutions 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080PsF25, 1920 x 1080Ps30, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 Compatible operating systems Mac OS X, Windows |
| Essential qualities |
|
| Converter type | Active video converter |
| Host interface | SDI (BNC) |
| Output interface | SDI/HDMI |
