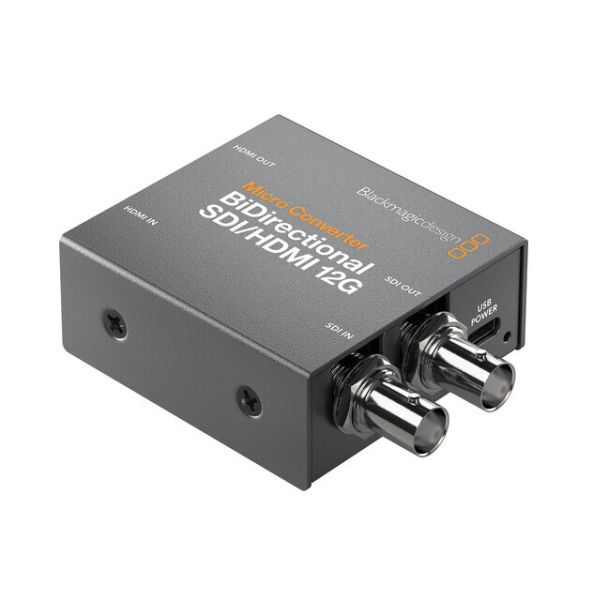

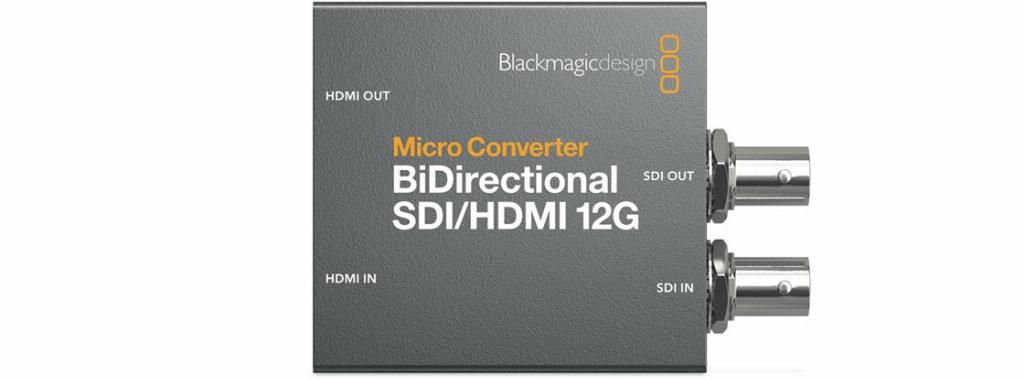

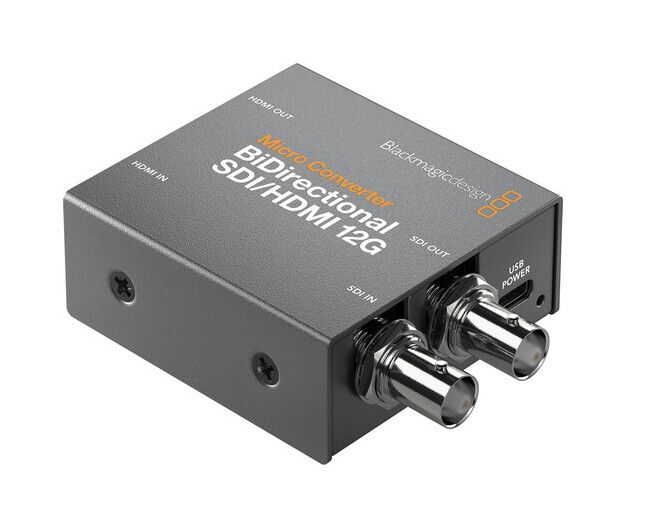

Blackmagic Design CONVBDC/SDI/HDMI12G/P video signal converter Active video converter
Blackmagic Design CONVBDC/SDI/HDMI12G/P, Active video converter, Grey, Windows 10, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, 720p, 1080i, 1080p, NTSC, PAL
Now you can convert in both directions simultaneously! Convert SDI to HDMI and HDMI to SDI in any combination of SD, HD or Ultra HD formats all at the same time! Micro Converter BiDirectional SDI/HDMI 12G lets you simultaneously convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! With multi-rate 12G-SDI input and output connections, Micro Converter BiDirectional SDI/HDMI 12G is compatible with virtually all professional broadcast equipment, including level A and B devices. It even automatically detects all SD, HD and Ultra HD formats! Micro Converter BiDirectional SDI/HDMI 12G has all you need to convert HDMI consumer gear to SDI. Use the input to convert HDMI computers or consumer cameras into 12G-SDI, while using the output for monitoring with big screen televisions or projectors! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket, or with the included power supply and international socket adapters!
Product Condition | New |
---|---|
Manufacturer | Blackmagic Design |
manufacturer code | CONVBDC/SDI/HDMI12G/P |
Ean | 9338716007053 |
Modified on | 13-10-2023 |
Product title | Blackmagic Design CONVBDC/SDI/HDMI12G/P video signal converter Active video converter |
Long Product Name | SDI Video Inputs, HDMI 2.0 Video Outputs, 270Mb, 1.5G, 3G, 6G, 12G, Auto detection of SD, HD, 2K, Ultra HD and 4K, USB Type‑C |
Product specifications | FeaturesConverter type* Active video converter Internal No Reclocking Yes Product colour Grey Windows operating systems supported Windows 10 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur VideoSupported video modes 720p, 1080i, 1080p Analog signal format system NTSC, PAL Supported chroma subsampling 4:2:2 Colour space supported YUV Serial Digital Interface (SDI) standard SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI auto-switching Yes Auto detection resolution Yes Ports & interfacesHost interface* SDI/HDMI Output interface* SDI/HDMI Video in 1 Ports & interfacesVideo out 1 BNC video output Yes BNC output ports 1 PowerExternal power adapter Yes USB powered Yes Operating voltage 5.25 V Power consumption (typical) 5 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 797 mm Depth 59 mm Height 25 mm Weight 174 g |
