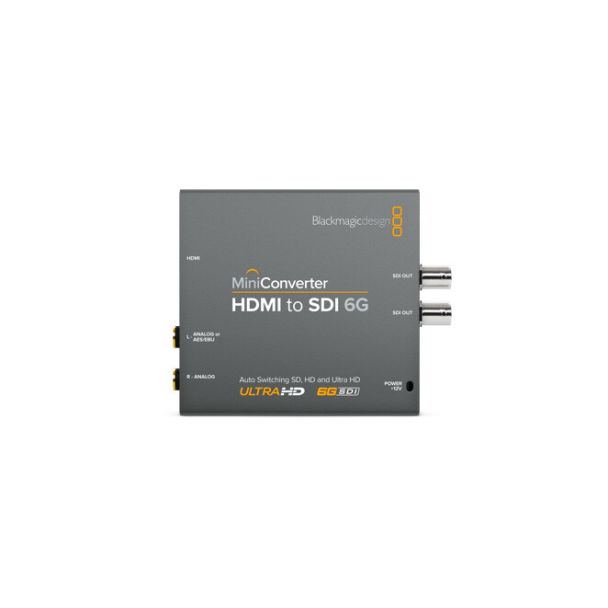

Blackmagic Design CONVMBHS24K6G video signal converter 4096 x 2160 pixels
GTIN: 9338716005165
Mini Converter HDMI to SDI 6G, 2160p30, 4.44 W, 12-18 V DC, 1 x HDMI inputs, 2 x SDI outputs
Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVMBHS24K6G |
| Ean | 9338716005165 |
| Modified on | 19-08-2021 |
| Warranty | 3 years |
| Product title | Blackmagic Design CONVMBHS24K6G video signal converter 4096 x 2160 pixels |
| Long Product Name | Mini Converter HDMI to SDI 6G, 2160p30, 4.44 W, 12-18 V DC, 1 x HDMI inputs, 2 x SDI outputs |
| Product specifications | FeaturesReclocking Yes Plug and Play Yes Product colour Grey Windows operating systems supported Windows 10, Windows 8.1 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave VideoMaximum video resolution* 4096 x 2160 pixels Supported video modes 720p, 1080i, 1080p, 2160p Resolution at capture speed 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps, 3840x2160@29.97fps, 3840x2160@30fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps Analog signal format system NTSC, PAL Supported chroma subsampling 4:2:2, 4:4:4 Colour space supported RGB, YUV Serial Digital Interface (SDI) standard ITU‑R BT.601, ITU‑R BT.656, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 424M‑B, SMPTE ST-2081 SDI auto-switching Yes Auto detection resolution Yes AudioAudio sampling rate 48 kHz Ports & interfacesOutput interface* SDI Video in 3 Ports & interfacesVideo out 2 DC-in jack Yes PowerExternal power adapter Yes Operating voltage 18 V Power consumption (typical) 4.44 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 114 mm Depth 92 mm Height 23 mm Weight 224 g Packaging dataCables included DC Quantity 1 |
| Essential qualities |
|
| Maximum video resolution | 4096 x 2160 pixels |
| Output interface | SDI |
