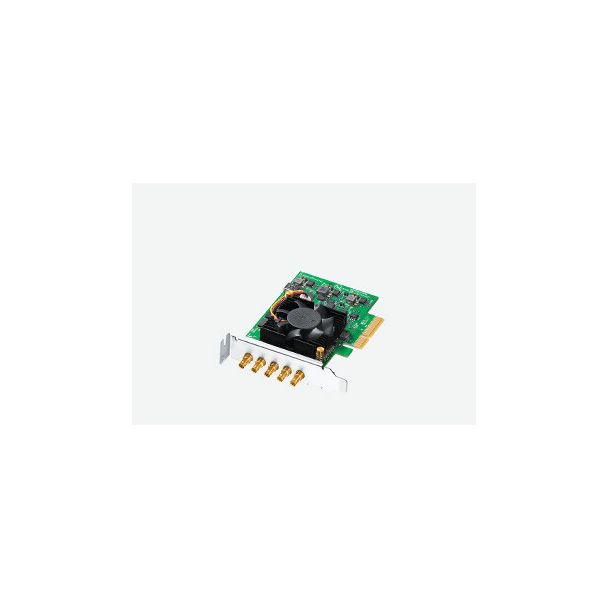

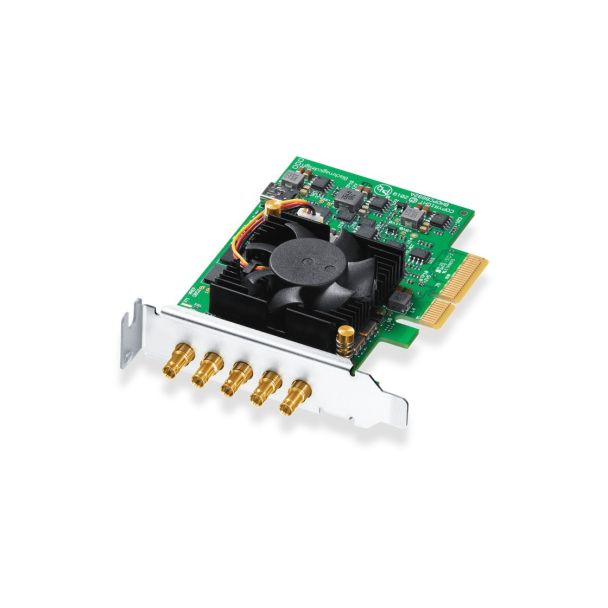

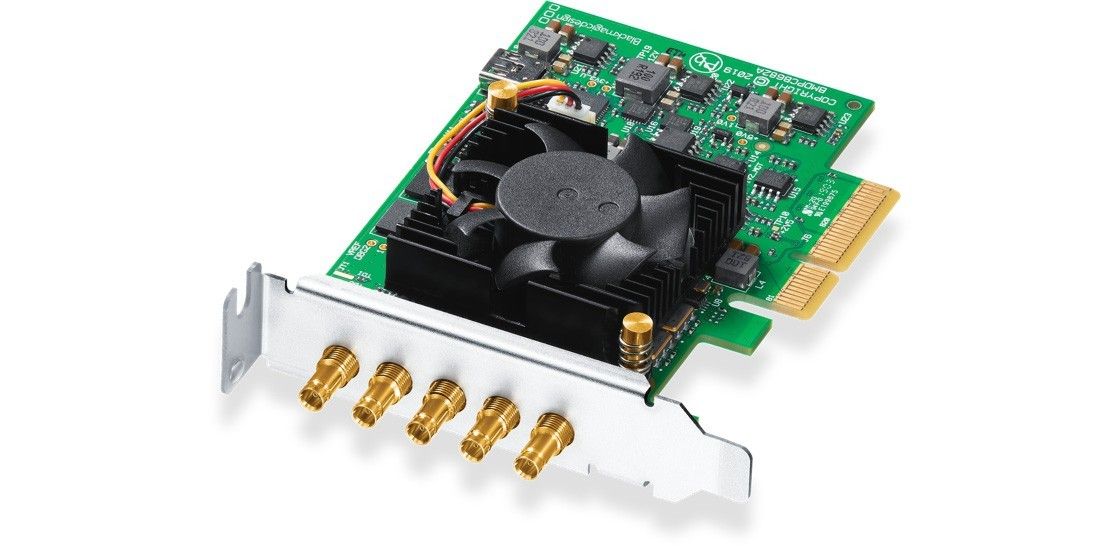

Blackmagic Design DeckLink Duo 2 Mini video capturing device Internal PCIe
GTIN: 9338716006193
In stock
SKU
BMD-BDLKDUO2LP
Special Price €532.53 €436.50 Regular Price €591.70
DeckLink Duo 2 Mini, 4x SDI, 16 channels, PCI E x4, 100 mm
Featuring 4 independent mini 3G-SDI connections, DeckLink Duo 2 Mini is a low profile, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKDUO2LP |
| Ean | 9338716006193 |
| Modified on | 11-03-2019 |
| Warranty | 3 Year Limited Manufacturer's Warranty |
| Product title | Blackmagic Design DeckLink Duo 2 Mini video capturing device Internal PCIe |
| Long Product Name | DeckLink Duo 2 Mini, 4x SDI, 16 channels, PCI E x4, 100 mm |
| Product specifications | PerformanceProduct colour* Green Internal* Yes Host interface* PCIe Interface SDI Certification FCC, CE, C-Tick VideoAnalog signal format system* NTSC, PAL Video codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy Supported video modes 720p, 1080i, 1080p SoftwareWindows operating systems supported Windows 10, Windows 7, Windows 8.1 Mac compatibility Yes Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave SoftwareLinux operating systems supported Yes Bundled software Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsDepth 100 mm Weight 87.5 g Packaging contentManual Yes Quantity 1 |
| Product colour | Green |
| Internal | Yes |
| Host interface | PCIe |
| Analog signal format system | NTSC, PAL |
