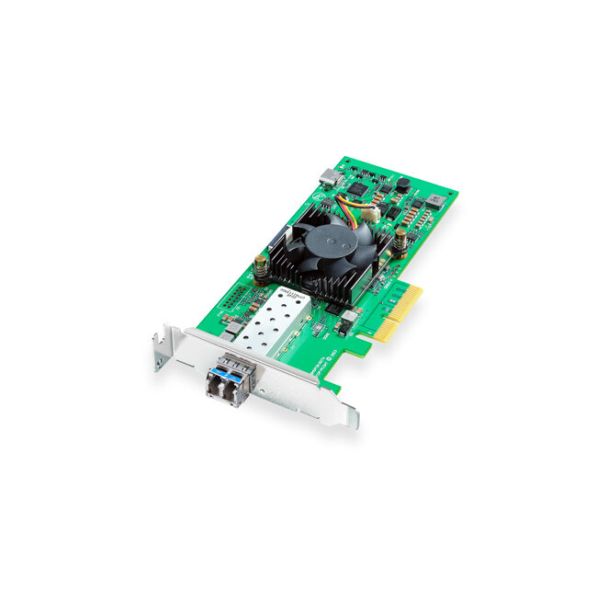

Blackmagic Design DeckLink IP HD Optical video capturing device Internal PCIe
GTIN: 9338716008272
In stock
SKU
BMD-BDLKIPDIP/OPT/HD
Special Price €367.83 €301.50 Regular Price €408.70
Blackmagic Design DeckLink IP HD Optical, Green, PCIe, 1920 x 1080 pixels, NTSC, PAL, 60 fps, AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX,...
DeckLink IP HD Optical features 3 channels of video capture and 3 channels of video playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed. DeckLink IP connections are multi rate so they support 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | BDLKIPDIP/OPT/HD |
| Ean | 9338716008272 |
| Product title | Blackmagic Design DeckLink IP HD Optical video capturing device Internal PCIe |
| Long Product Name | 10G Optical Fiber SFP+ Port, 1 x 10GBASE-LR, PCI Express 4, 1080p60 with 16 audio channels, NTSC/PAL |
| Product specifications | PerformanceProduct colour* Green Internal* Yes Host interface* PCIe Video capture resolution (max) 1920 x 1080 pixels VideoAnalog signal format system* NTSC, PAL Maximum frame rate 60 fps Video codecs AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4 Supported video modes 1080i, 625i, 1080p, 720p, 525i AudioAudio support Yes Sample rate 48 kHz Ports & interfacesUSB port* No PowerPower consumption 10 W SoftwareWindows operating systems supported Windows 10 x64, Windows 11 Mac compatibility Yes Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 158 mm Weight 110 g |
