Blackmagic Design DeckLink Studio 4K video capturing device Internal

DeckLink

The world's highest performance capture cards for Mac, Windows and Linux.

DeckLink capture and playback cards are used every day in the production of television commercials, music videos, episodic television programs and Hollywood feature films. With cutting edge technologies built in, you get the highest quality video and maximum reliability. No other capture cards support more applications and more platforms than DeckLink, so you can always work with your favorite software. Every DeckLink PCIe card can be installed in Mac, Windows and Linux based workstations and media servers to give you ultimate flexibility!

Perfect for Post Production SD, HD, 3D and Ultra HD 4K!

Work with any video format and resolution that you need! Capture from cameras, decks and live feeds directly into editing, effects and design software applications. DeckLink Studio 4K and DeckLink SDI 4K feature high resolution Ultra HD, while 4K Extreme also includes 4:4:4 image quality, 3D stereoscopic for advanced feature film visual effects, editing and color correction. There are DeckLink models to support either file or tape based workflows to precisely deliver perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even video projectors.

Select Your Favorite Model!

There’s a perfect DeckLink model for every job! The high performance DeckLink 4K Extreme features the latest advanced video technology including Ultra HD 4K, Dual Link 3G/6G-SDI, HDMI 4K, 4:4:4, 1080p60 and stereoscopic 3D. DeckLink Studio is great when you need lots of analog connections as well as SD/HD/6G-SDI connections and DeckLink SDI is the perfect SDI only design with 6G-SDI connections for input or output of SD, HD or Ultra HD video, complete with support for embedded SDI audio.

Highest Quality Connections

Every DeckLink card features the highest quality connections so you get pristine video and audio quality and can connect to the widest range of professional SDI equipment. DeckLink 4K Extreme includes Dual Link 3G/6G-SDI, HDMI, analog video, as well as 2 channels of AES/EBU audio and 2 channels of balanced analog audio in and out. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, 2 channels of AES/EBU audio and 4 channels of balanced analog audio in and out. You also get a down converted SD output. Decklink SDI 4K is perfect for high quality 10 bit SDI use only. All models include black burst/tri-sync reference and serial deck control. All models switch between SD and HD, while the DeckLink 4K Extreme, DeckLink Studio 4K and DeckLink SDI 4K models include 6G-SDI and HDMI 4K connections for Ultra HD and 4K.

Unrivaled Video Quality

DeckLink lets you work with compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video. When working with uncompressed video, all images are a mathematically perfect pixel-for-pixel clone of the source, without any generational loss, so you have the confidence you’re working at the absolute highest quality possible. Get sharper keying with green screens, cleaner compositions, superior color correction and more! Support for industry leading file formats ensures that you can maintain high quality throughout post production should you need to use video compression.

Advanced Technology

Get the latest 6G-SDI technology so you can capture and playback in full resolution Ultra HD video, while remaining fully compatible with all SD and HD-SDI equipment! That’s 4 times the resolution of regular 1080 HD video at a massive 3840 x 2160 image size! DeckLink SDI 4K, DeckLink Studio 4K and DeckLink 4K Extreme include 6G-SDI as standard while the advanced DeckLink 4K Extreme model includes dual 6G-SDI inputs and outputs for higher color resolution, dual stream 3D stereoscopic support and even higher frame rates! DeckLink 4K Extreme is the perfect choice for DaVinci Resolve color correction!

Use Your Favorite Software

DeckLink cards work with the software you love to use!

Mac OS X

No other capture and playback cards are supported by more software applications for Mac OS X. Get drivers that work with fantastic editing software such as Avid Media Composer, Apple Final Cut Pro, Adobe® Premiere Pro® CC, Avid Symphony and Avid News Cutter. For visual effects get full compatibility with After Effects® CC, The Foundry Nuke and Photoshop® CC. For audio get compatibility with ProTools, Steinberg Nuendo and Cubase. For streaming use Flash Media Encoder, Wirecast, Livestream Procaster.

Windows

For Windows you get access to a massive range of software because DeckLink supports WDM, DirectShow and QuickTime! For editing you can use Avid Media Composer, Avid News Cutter, Adobe® Premiere Pro® CC, Sony Vegas Pro, Corel VideoStudio, CyberLink Power Director and MAGIX Video Pro. For visual effects use After Effects® CC, The Foundry Nuke and Photoshop® CC. Audio software supported includes Steinberg Nuendo and Cubase. When streaming you get compatibility with Flash Media Encoder, Xsplit Broadcaster, Wirecast and Livestream Procaster.

Linux

DeckLink cards are open standard capture cards and are perfect for the development of Linux based video applications. The availability of a free well documented SDK makes it easy for you to develop specific solutions to meet your needs or to work with solutions that have been developed by others. Blackmagic Design Media Express is also available for capture and playback when using DeckLink with Linux operating systems.

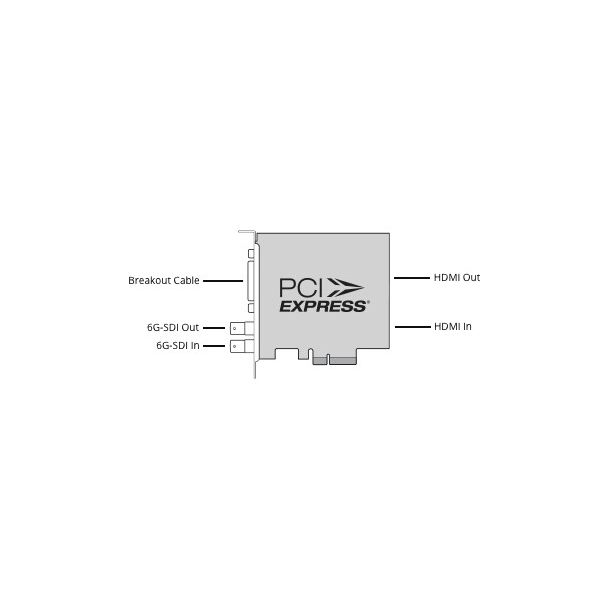

If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!
