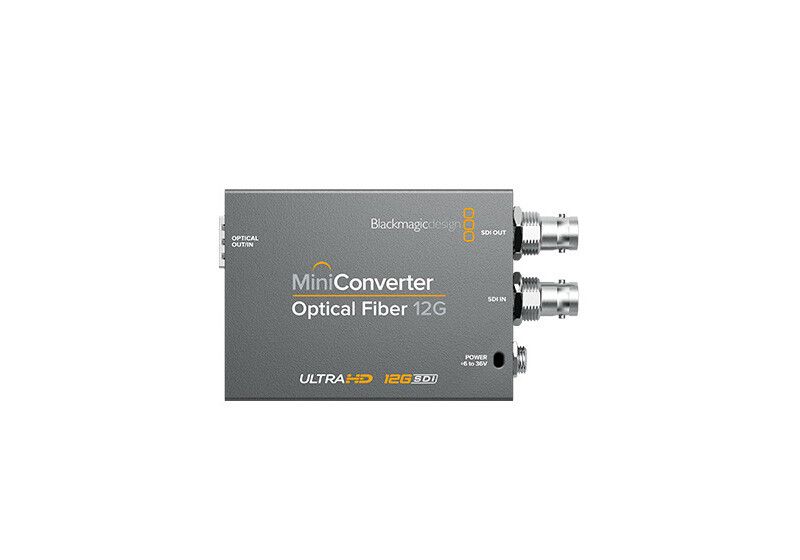

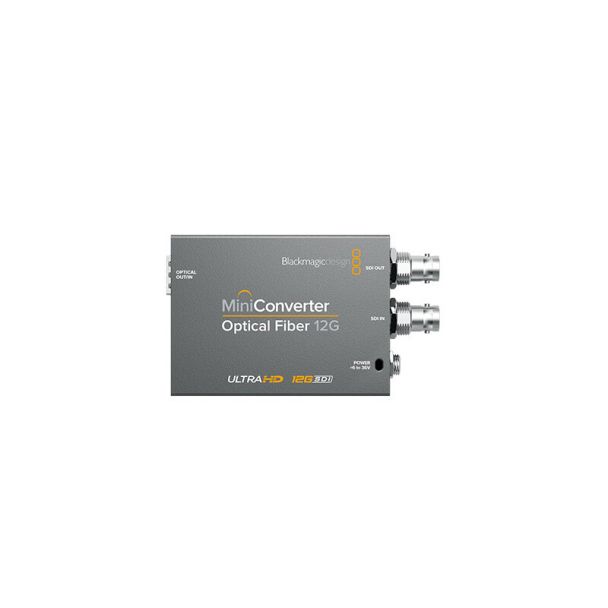

Blackmagic Design Mini Converter Optical Fiber 12G Active video converter 3840 x 2160, -
GTIN: 9338716005400
SMPTE SFP, BNC, 2160p60, 110x59x23 mm
Extend SDI connections over extremely long distances by converting to optical fiber!
Now you can extend SDI massive distances up to 10 miles away! Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, so it’s like getting two converters in one. You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. The fiber socket lets you install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks. Plus, the included international power supply has a locking connector so the power cannot be accidentally disconnected!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVMOF12G |
| Ean | 9338716005400 |
| Modified on | 11-12-2018 |
| Warranty | 3 Year Limited Manufacturer's Warranty |
| Product title | Blackmagic Design Mini Converter Optical Fiber 12G Active video converter 3840 x 2160, - |
| Long Product Name | SMPTE SFP, BNC, 2160p60, 110x59x23 mm |
| Product specifications | FeaturesConverter type* Active video converter Product colour Grey VideoMaximum video resolution* 3840 x 2160, - Supported video modes 525i, 625i, 720p, 1080i, 1080p, 2160p PowerInput voltage 6 - 36 V Power consumption (typical) 2 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 110 mm Depth 59 mm Height 23 mm Weight 210 g |
| Essential qualities |
|
| Converter type | Active video converter |
| Maximum video resolution | 3840 x 2160, - |
