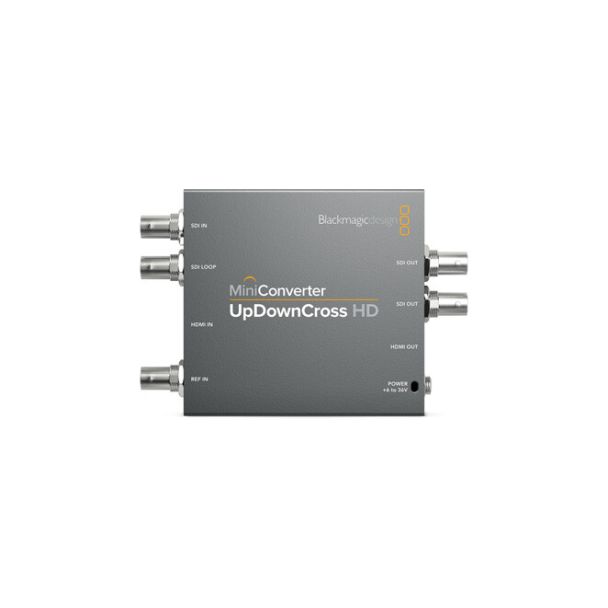

Blackmagic Design Mini Converter UpDownCross HD
GTIN: 9338716005417
Mini Converter UpDownCross HD, 1080i60, 5 W, 6-36 V DC
Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!
| Product Condition | New |
|---|---|
| Manufacturer | Blackmagic Design |
| manufacturer code | CONVMUDCSTD/HD |
| Ean | 9338716005417 |
| Modified on | 08-02-2019 |
| Warranty | 3 years |
| Product title | Blackmagic Design Mini Converter UpDownCross HD |
| Long Product Name | Mini Converter UpDownCross HD, 1080i60, 5 W, 6-36 V DC |
| Product specifications | FeaturesReclocking Yes Product colour Grey Windows operating systems supported Windows 10, Windows 8.1 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave VideoMaximum video resolution* 1920 x 1080 pixels Supported video modes 720p, 1080i, 1080p Resolution at capture speed 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@23.98PsF, 1920x1080@23.98fps, 1920x1080@24PsF, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@29.97PsF, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps Analog signal format system NTSC, PAL Supported chroma subsampling 4:2:2 Colour space supported YUV Serial Digital Interface (SDI) standard ITU‑R BT.601, ITU‑R BT.656, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B SDI auto-switching Yes Auto detection resolution Yes AudioAudio sampling rate 48 kHz Ports & interfacesHost interface* SDI/HDMI Output interface* SDI/HDMI Ports & interfacesVideo in 4 Video out 3 PowerExternal power adapter Yes Operating voltage 36 V Power consumption (typical) 5 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 135 mm Depth 92 mm Height 23 mm Weight 247 g Packaging dataCables included DC Quantity 1 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | SDI/HDMI |
| Output interface | SDI/HDMI |
