Blackmagic Design Studio Converter Active video converter
Blackmagic Design Studio Converter, Active video converter, Black, Windows 10 x64, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, 4:2:2, SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082
With 10G Ethernet on Blackmagic Studio Converter and Blackmagic Studio Camera 4K Pro G2, you can connect all camera signals using one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't even need a power source near the camera!
Product Condition | New |
---|---|
Manufacturer | Blackmagic Design |
manufacturer code | CINSTUDMFT/H/SC |
Ean | 9338716007657 |
Modified on | 11-07-2023 |
Warranty | 1 Year Limited Manufacturer's Warranty. |
Product title | Blackmagic Design Studio Converter Active video converter |

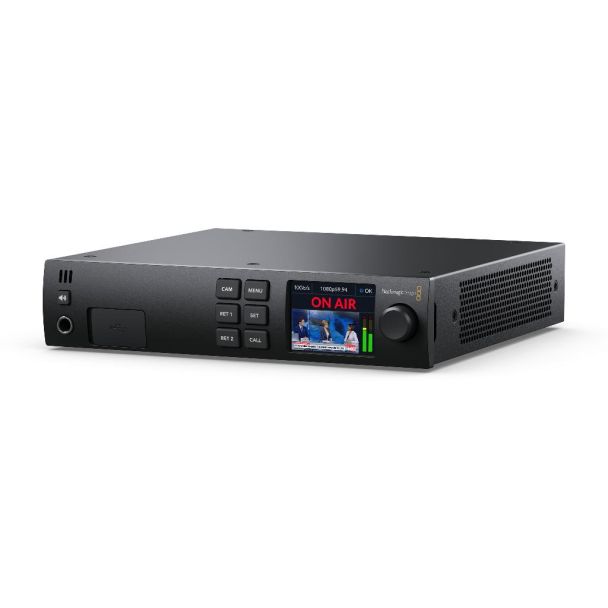

Long Product Name | 2.2" LCD, SDI, BNC, 10Gb/s PoE RJ‑45, USB-C, 100 - 240V AC |

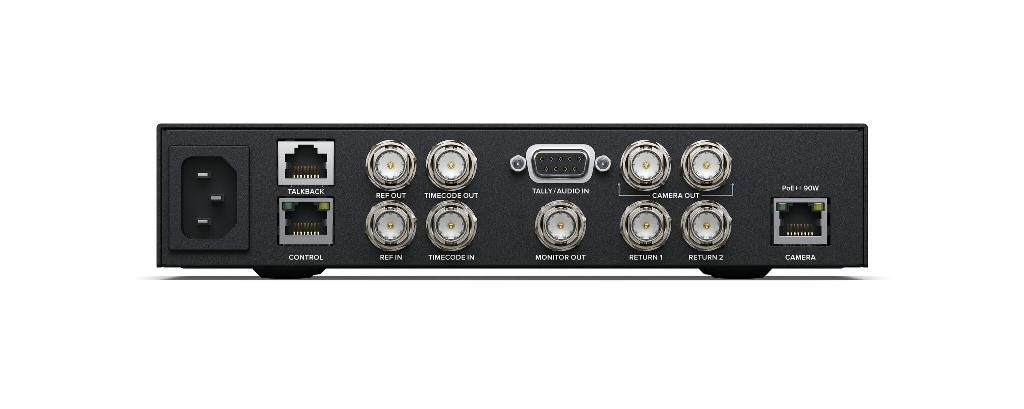

Product specifications | FeaturesConverter type* Active video converter Internal No Product colour Black Windows operating systems supported Windows 10 x64 Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura VideoSupported chroma subsampling 4:2:2 Serial Digital Interface (SDI) standard SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082 AudioAudio sampling rate 48 kHz Ports & interfacesHost interface* SDI Output interface* SDI Video in 2 x SDI Video out 2 x SDI Audio output 6.35 mm BNC video output Yes Ports & interfacesBNC output ports 1 PowerExternal power adapter No Input voltage 100 - 240 V Input frequency 50/60 Hz Power consumption (typical) 40 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 45 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 210 mm Depth 226.8 mm Height 44.2 mm Weight 1.44 kg |
